BRCK

Upcoming Update

The BRCK is a rugged, self-powered, mobile WiFi device that provides internet connectivity in areas of the world with poor infrastructure. With a data enabled SIM card, existing wifi or ethernet cord or with the B

Developed By Unknown
Content Partners
Unknown

Author

Product Description

The BRCK is a software infused device. The BRCK includes a cloud-based system, called Moja that syncs your BRCK with current data from cellular providers in your country. This backend provides a dashboard of metrics to monitor your connectivity and devices over time, and a way to install new services like VPN, Dropbox or any other app that a user might create.

BRCK is based in Nairobi, Kenya.

Distributors / Implementing Organizations

BRCK was the sole distributor.

Manufacturing/Building Method

The BRCK was manufactured in Kenya by BRCK Limited. The BRCK is no longer in production.

Intellectural Property Type

Other

User Provision Model

Users may purchase the Kio Kit or the next generation of BRCK: SupaBRCK.

Distributions to Date Status

As of August 2016, thousands of BRCKs have been distributed. interview with representative

Design Specifications

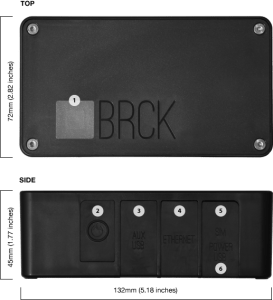

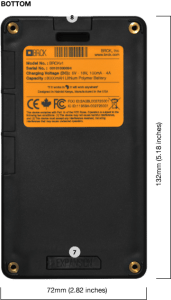

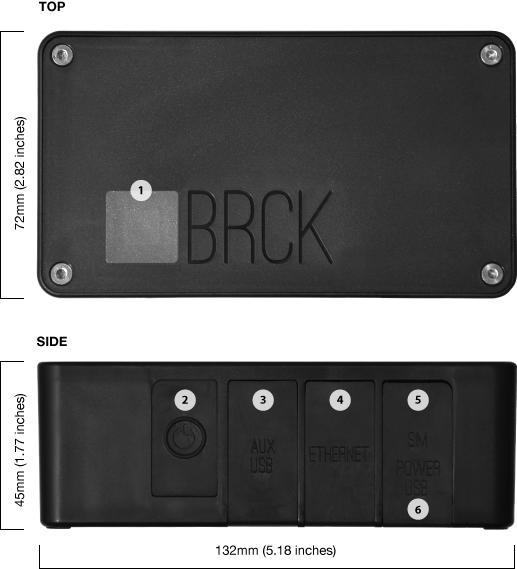

BRCKs internal enterprise-level 802.11 b/g/n router with a 10/100Mbps WAN/LAN Port can be shared with up to 20 devices. Overview: 8 Hour battery backup, 16 GB harddrive, 8 GPIO pins to connect sensors, Software infused allows for apps, remote management, and data collection, Documented API. Dimensions: 132mm (5.18 inches) by 72mm (2.82 inches) by 45mm (1.77 inches) Weight: 510g (1.125) Features: Ruggedized body handles drops, dust, and weather Extended battery life in 5 different low power states 4 GB of onboard storage (Factory Upgradable to 32GB) Power Efficient Atheros 400 MHz Processor Network: 802.11 b/g/n Wireless 10/100Mbps WAN/LAN Port Wifi Bridge and Client modes WPA/WPA2 PSK, WPA Enterprise, and WEP Encryption DHCP, NAT, DMZ, Port Forwarding, and Access Control OpenVPN Client/Server NFS/FTP Network Attached Storage Auto Network Failover For more details, visit BRCK's technical specifications page

Technical Support

BRCK has a dedicated customer support team that can be reached at this link and an online forum for collaboration.

Replacement Components

Unknown.

Lifecycle

Exact lifecycle was not shared by BRCK. The BRCK was designed to withstand harsh environments, which is advertised to extend the lifecycle of the product. The BRCK has a 90 day warranty.

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

The BRCK has been through third party testing and vetting, but details were not shared.

Safety

Be sure to follow proper installation and control guidelines.

Complementary Technical Systems

Digital media viewing or web browsing technology is required, such as a computer, smartphone or tablet.

Academic Research and References

None

Compliance with regulations

BRCK has stated their compliance with Open Source Regulations.

Other Information

BRCK has shifted their efforts toward the SupaBRCK, Moja, PicoBRCK and the Kio Kit. The SupaBRCK is the next generation BRCK, Moja is a content delivery network built on BRCK, PicoBRCK connects physical sensors and devices to the internet and the Kio Kit is a digital education solution. Watch this BRCK TED talk

Comments from the Community

1 Comment

  1. Wilfredo Torres says:

    BRCK seems to be very difficult to implement in undeserved out-of-coverture communities, because of the need to use Mobile Services like 3G-4G to adequately get the services. Even that, for the communities who have adequate mobile access, BRCK can be a good tool to fully exploit a shared mobile data connection.

    Add specific performance parameters related to Quality of Service in the network for diferents applications (data-based, audio, video and multimedia): Average throughput | delay | jitter and packet loss. Also a parameter to know the “time to download” different kind of media.
