ANDalyze AND1100 Fluorimeter

The ANDalyze AND1100 Fluorimeter us a portable sensor for heavy metals.

Developed By
  1. ANDalyze
Tested By
  • U.S. Environmental Protection Agency
Content Partners
Unknown

Author

Product Description

The AND1100 Fluorimeter is a platform centric hand-held device for multiple soluble heavy metal testing of drinking water and industrial water supplies. It determines the toxicity levels of Lead, Copper, Uranium, Mercury, Zinc, and Cadmium in less than two minutes, eliminating or significantly reducing test expenditures, complexity and wait times experienced in traditional heavy metals water testing. The system was designed and manufactured by ANDalyze, an Illinois, USA-based company that offers products for testing water contamination using catalytic DNA technologies. This fluorimeter can be used to test drinking water. With an additional filtration step for turbid waters, the product can also be used to test environmental water, industrial process wastewater, municipal effluent water, and seawater.

Target SDGs

SDG 6: Clean Water and Sanitation

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$3,455.99

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

ANDalyze is the main distributor. For marketing and sales users are asked to contact the ANDalyze Sales office. ANDalyze also has US domestic and worldwide distributors, such as Thomas Scientific.

Competitive Landscape

Direct competitors include NTU Singapore Water Test.

Manufacturing/Building Method

The ANDalyze AND1100 Fluorimeter is designed and manufactured by Andalyze Inc. a private, independant company founded in 2005 and headquartered in Champaign, Illinois, United States.

Intellectural Property Type

Patent

User Provision Model

This product can be purchased by contacting ANDalyze or online at US VWR and Quasar instruments

Distributions to Date Status

Unknown

Test types included

Lead, Copper, Uranium, Mercury, Zinc, Cadmium

Equipment included

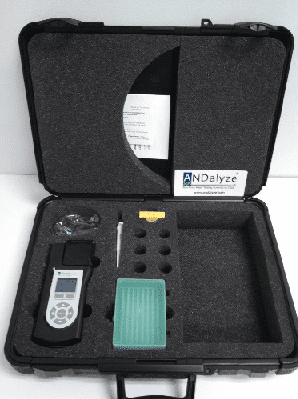

AND1100 Fluorimeter, USB to MINI-B Cable, 100µL Fixed Volume Pipette and Tips, pH Test Strips, User Manual, Carrying Case

Tests per kit

Unknown

Detection range

Lead: 2-400 ppb; Copper (high): 0.6-3 ppm; Copper (low): 40-400 ppb; Uranium: 2-120 ppb; Mercury: 2-50 ppb; Zinc: 1-30 ppm; Cadmium: 0.1-2 ppm

Processing time for one sample (hr)

<2 minutes

Additional materials required

None

Power required (yes/no)

Yes

Complete kit weight (kg)

Unknown

Design Specifications

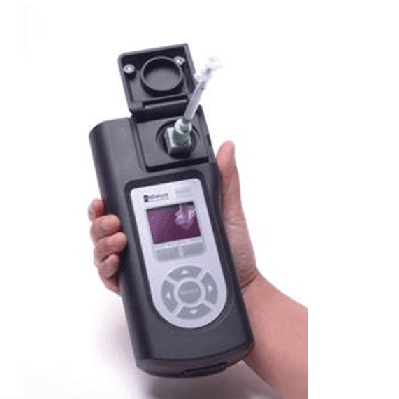

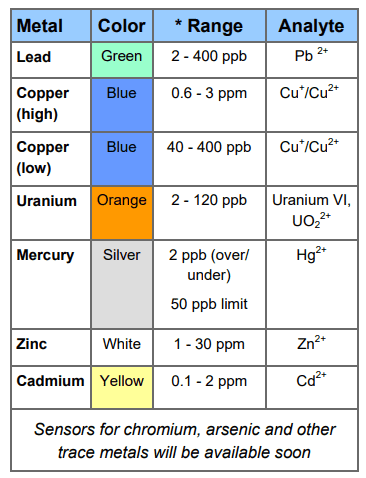

The ANDalyze AND1100 Fluorimeter uses a DNAzyme reaction that fluoresces in the presence of a target contaminant substance such as lead. The fluorescence of the reaction is measured to determine the soluble concentration of the target heavy metal and is reported in parts per billion (ppb). The test is performed by taking a 1 milliliter water sample, injecting it through the sensor, and into the fluorimeter. This sample is then automatically analyzed and reports results in less than one minute. The sensor Kit comes with different disposable color-coded sensors, each designed for a specific heavy metal test target. Water testing and calibration manuals for each heavy metal are found here. The following chart shows the range of detection of each heavy metal. ANDalyze test kits work in the 17 – 35 ?C (63 – 95 ?F) temperature range, with most accurate results in the range of 20 ? 25 ?C (68 – 77 ?F). The test solution must be  ?pH 7.0 for best results. The kit contains pH strips to check the pH, and a buffer that can be adjusted if the solution is acidic or basic.  In some cases, iron interference protocols may be necessary. Product dimensions are: Width: 91.4 mm, Depth: 203 mm, Height: 57.2 mm. Weight: 565 g

Product Schematics

Technical Support

For support, users are asked to call the ANDalyze Sales office.

Replacement Components

Unknown

Lifecycle

This product has a 1-year Warranty, is Safe and Maintenance Free CE Marked, and water and dust resistant with IP54 enclosure rating.

Manufacturer Specified Performance Parameters

This product is designed for the user to detect Lead, Copper, Uranium, Mercury, Zinc, Cadmium without special skills or knowledge of chemistry, and without hazardous materials or harmful reagents. Performance targets include: efficiency, testing accuracy, and ease-of use for field applications. The system is designed to reduce overall testing costs by reducing testing time and complexity.

Vetted Performance Status

Unknown

Safety

No harmful reagents are required for the use of this product.

Complementary Technical Systems

None

Academic Research and References

“Heavy Metals via ANDalyze,” AlpHa Measure, 15-May-2023. Available: https://alpha-measure.com/parameters/heavy-metals-andalyze/

“Wa t e r An a l y s i s?: On S i t e Re a l T i me A c c u r a t e Re s u l t s,” Alpha-measure.com. Available: https://alpha-measure.com/wp-content/uploads/2023/10/ANDalyze-Spec-Sheet-4.pdf

“Thomas Scientific – Laboratory Supplies, Laboratory Equipment, Laboratory Chemicals, and Laboratory Safety,” Thomassci.com, 05-Jan-2024. Available: https://www.thomassci.com//www.thomassci.com/

“Handheld Fluorimeter, ANDalyze,” VWR. Available: https://us.vwr.com/store/product/14646035/handheld-fluorimeter-andalyze

Goal 6. (n.d.). Sdgs.un.org. Available: https://sdgs.un.org/goals/goal6

“Brightcove Test Site,” Gallery.video. Available: https://kellytest.gallery.video/

“Product Details,” Hach.com. Available: https://ca.hach.com/andalyze-and1100-fluorimeter/product-downloads?id=18330030953

Compliance with regulations

This product is in compliance with ISO 9001:2008 Certified Assembly, European CE Mark and Korean KC Mark, is EPA Validated technology  and complies with the following European Union Directives: Low Voltage Electrical Equipment Directive 2006/95/EC and Electromagnetic Compatibility (EMC) Directive 2004/108/EC.

Evaluation methods

This product has been tested under the Low Voltage Electrical Equipment Directive 2006/95/EC and Electromagnetic Compatibility (EMC) Directive 2004/108/EC.

Other Information

Andalyze Test Video

ANDalyze WATERWORLD WEEKLY NEWSCAST Interview
