Updated on January 24, 2024

·

Created on June 9, 2017

Breezergy Micro Wind Turbine

Upcoming Update

Breezergy is a micro wind turbine that has a power output of 1000 W.

Tested By
  • SkyWind Energy GmbH
Content Partners
  1. Siemens | Stiftung

Author

Product Description

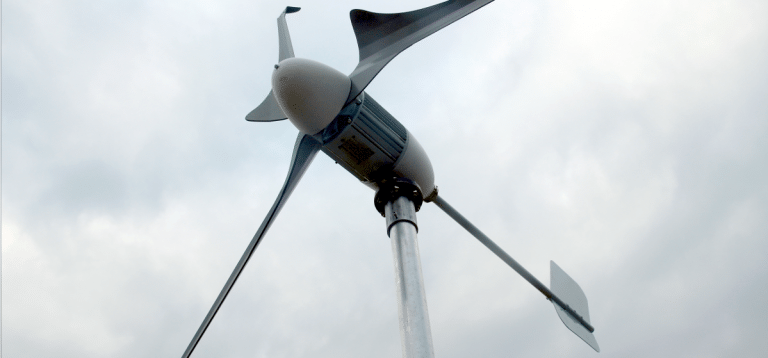

The Breezergy Micro Wind Turbine is a wind turbine designed to output 1,000 W built in Germany with cast aluminum and steel parts.

Breezergy is based in Langenhagen, Germany. Video about the performance of the product is available.



Target SDGs

SDG 7: Affordable and Clean Energy

SDG 8: Decent Work and Economic Growth

Market Suggested Retail Price

$549.00

Target Users (Target Impact Group)

Household, Community

Distributors / Implementing Organizations

Breezergy can be pre-ordered by contacting the manufacturer.

Competitive Landscape

Manufacturing/Building Method

Individually made in Germany.

Intellectural Property Type

Patent

User Provision Model

Users can obtain it by pre-ordering from the manufacturer.

Distributions to Date Status

The exact number of distributions to date is unknown but according to the Empowering People Network, The SkyWind NG series turbines are already powering several houses in Africa.

Description of system

Turbine

Start up windspeed (m/s)

3 m/s

Power output, min (W at m/s)

5 W at 3 m/s

Power output, max (W at m/s)

1000 W at 15 m/s

Height of system (m)

Unknown

Radius of movement (m)

Unknown

Description of control system

Unknown

Design Specifications

Design specifications include a generator with a tail and three blades made of aerospace grade aluminum. This micro wind turbine weighs 30 kg. Further product specifications:

Rotor Diameter 6.2 ft (1,90m)
Weight 66 lb (30 kg)
Swept Area 30,14 ft² (2,8 m²)
Blades 3, aerospace grade aluminum
Operating Temperature -40°F - 122°F (-40°C - 50°C)
Max. Power 1000 W
Voltage 48 V, 3 phase AC
Cut-in Wind speed 7 mph (3 m/s)
Rated Wind speed 33.6 mph (15 m/s)
Survival Wind speed 89.5 mph (40 m/s)

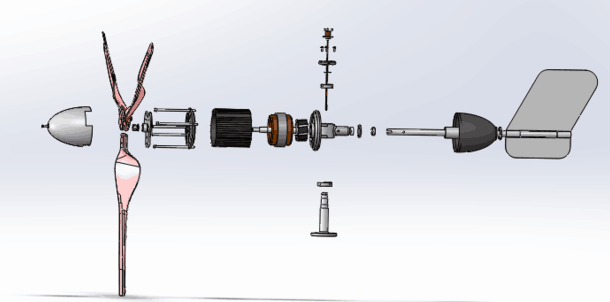

Product Schematics

Technical Support

Any questions can be addressed by sending an email to the manufacturer or sending a letter to the manufacturer's address.

Replacement Components

It requires a tall structure such as a tree/pole to mount the turbine.

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

Breezergy aims to provide an affordable, durable, and environmentally friendly micro wind turbine that meets power demands (1 kW) and helps reduce expensive electricity providers or generators.

Vetted Performance Status

Safety

Guidelines provided by the manufacturer must be followed to avoid possible malfunctioning of the system.

Complementary Technical Systems

None

Academic Research and References

No academic references.

Contact. n.d. www.breezergy.com.  .

Specifications. n.d. www.breezergy.com.



Compliance with regulations

It complies with German patented blades.

Evaluation methods

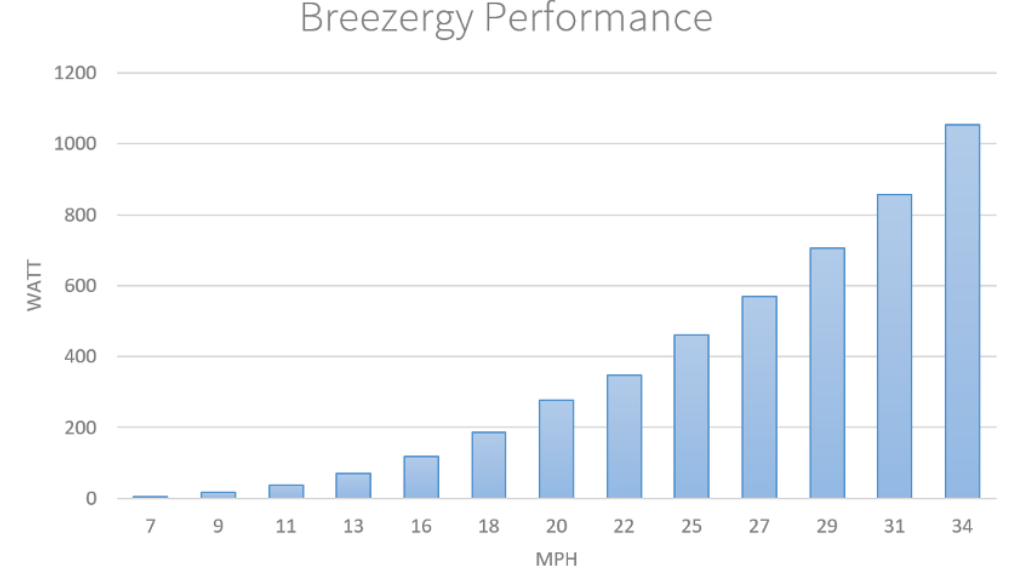

Evaluated for power output at various wind speeds.

Other Information

None

Leave a Reply

Explore similar solutions

Agriculture

January 24, 2024

Piggott Axial Flux Alternator Wind Turbine

Read Solution

Implemented by

Hugh Piggott

Agriculture

January 24, 2024

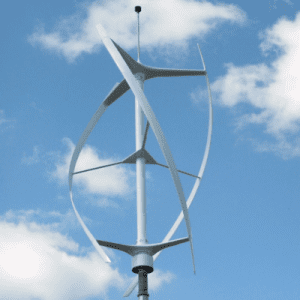

Qr6 Vertical Axis Wind Turbine
