Hydrokinetic Turbine

Upcoming Update

DesignPro Renewables Hydrokinetic Turbine is a tidal hydrokinetic turbine that can float on rivers and estuary with capacity of 25kW and 6

Tested By
  • Bluegift
Content Partners
Unknown

Author

Product Description

The DesignPro Renewables hydrokinetic turbine is manufactured by an Irish company called DesignPro Renewables. It is designed to harness the kinetic energy from flowing water found in rivers and estuaries. The turbine generates clean, renewable energy from flowing water. The concept of the device exploits the natural phenomenon that occurs when flowing water comes into contact with an object or obstruction. By using such an obstacle as part of the design, water is compressed and accelerates as it is diverted out and around the bluff body. DesignPro Renewables’ technology involves two vertical axis turbines placed on each side of a teardrop shaped vessel. The vessel, coupled with the blade pitch control system, speeds up the water into the turbines to produce significant energy in low flows of water, according to DesignPro.

Target SDGs

SDG 7: Affordable and Clean Energy

Target Users (Target Impact Group)

Household, Community

Distributors / Implementing Organizations

Direct order from the manufacturer.

Competitive Landscape

Direct competitors include Turbulent Vortex Turbine and SMART Turbine.

Manufacturing/Building Method

Pilot scale production of 25kW and later in 2019, manufacture of 60kW model.

Intellectural Property Type

Patent

User Provision Model

Direct from manufacturer DesignPro Renewable.

Distributions to Date Status

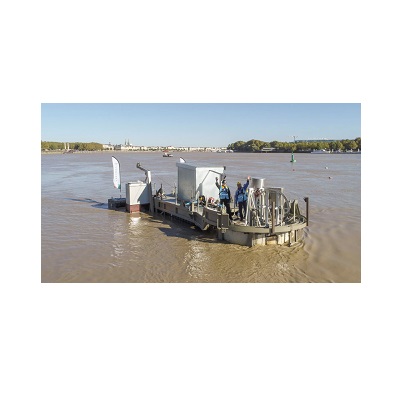

Pilot scale of 25kW installed in 2018 in France.

Output voltage: (VAC)

110 VAC or 220 VAC

Power output, min (kW at head, flow rate)

25 kW

Power output, max (kW at head, flow rate)

60 kW

Output frequency (Hz)

50 or 60 Hz

Minimum required head (m)

None

Minimum required flow rate (L/s)

Unknown

Number of nozzles

Unknown

Weight (kg)

1.8 tonnes

Phase

Unknown

Design Specifications

The DesignPro Renewables hydrokinetic turbine is designed as a tidal turbine for generating electricity from flowing estuaries and rivers. The capacity is 25kW and 60kW with a dimension of 6m by 2.5m.

Product Schematics

Technical Support

All technical support is provided by the manufacturer.

Replacement Components

Unknown

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

It has a unique bluff-body, vertical-axis turbine with a capacity of 25kW and 60kW floating system. The floating bluff increases the flow speed to blades either side of it, producing energy up to eight times more efficiently. It is not permanently fixed so it can be moved easily if required. The turbine blades can also be raised and lowered making access for maintenance straight- forward.

Vetted Performance Status

Operational and environmental testing and power curves verified by Bureau Veritas standard.

Safety

No known hazards

Complementary Technical Systems

None

Academic Research and References

Flambard, J., Amirat, Y., Feld, G., Benbouzid, M. and Ruiz, N., 2019. River and estuary current power overview. Journal of Marine Science and Engineering, 7(10), p.365.

Kougias, I. and Schleker, T., 2019. Hydropower technology development report 2018.

Stratigaki, V. and Hensmans, J., 2021. Ocean Energy in Belgium-2020. OES Annual Report 2020, pp.52-59.

Stratigaki, V. and Mouffe, L., 2019. Ocean Energy in Belgium-2019. OES Annual Report 2019, pp.48-53.

Technology



Machine Learning May Be the Key to Sustainable Structural Engineering



DesignPro extends testing at SEENEOH



DesignPro Renewables



PROJECT DesignPro: their unique, bluff-body hydro-kinetic turbine can provide reliable, renewable energy – even in the most out-of-the-way places



Video: DesignPro Renewables deploys tidal turbine at SEENEOH



https://group.bureauveritas.com/group

Compliance with regulations

The product received the Bureau Veritas standard certification.

Evaluation methods

Extensive operational and environmental testing and power curves verification by Bureau Veritas standard done for 12 months.

Other Information

None
