ECCODiva 118

Upcoming Update

The ECCODiva 118 is a LED light with solar panel and mobile device charging capabilities

Tested By
  • ECCO Electronics Private Limited
  • Lighting Global
Content Partners
Unknown

Author

Product Description

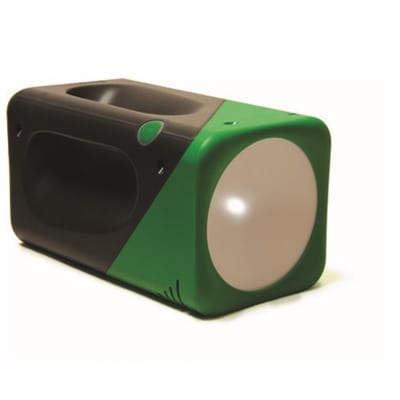

The ECCODiva 118 is a multipurpose solar-powered LED light with radio and mobile device charging capabilities.

Target SDGs

SDG 7: Affordable and Clean Energy

Market Suggested Retail Price

$26.41

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Amazon, Flipkart, Pepperfly, Waamall, Waaree

Competitive Landscape

Direct competitors include Nokero N202, Nokero N200, d.Light S2, and d.Light S20.

Manufacturing/Building Method

This product is mass produced in India.

Intellectural Property Type

Patent

User Provision Model

Users can obtain this product through Amazon, Flipkart, Pepperfly, Waamall, Indiamart, and Waaree.

Distributions to Date Status

Over 50,000, as of August 2016.Interview with Representative in 2016

Lamp type

LED

Number of light points

1 LED

Total light output (lumens)

58-82 lumens

Multiple brightness settings (yes/no)

Yes

Light duration on single charge (hr)

10-250 hr

Mobile charging (yes/no)

Yes

Power source

Solar Panel

Battery type

Lithium ion

Peak power rating (Wp)

Unknown

Battery capacity (kWh; mAh)

2200 mAh

Battery nominal voltage (V)

3.7 V

User replaceable battery (yes/no)

Yes

User replaceable light (yes/no)

Unknown

Design Specifications

The product includes an ECCODIVA Lamp, connecting Wire, instruction Manual, 2 W Solar Panel, Nokia, and micro and mini USB converter cables. The product has a mobile charging feature with 4 adapter tips, 5 in 1 lamp functions that allow it to be reconfigured as a torch, study lamp, lantern, wall light, and ceiling light, 2.7 W Polycrystalline silicon 7.4 V solar panel, and a 1600 mAh Lithium-ion battery. It can charge up to 5 lamps with its 20 W Polycrystalline Photovoltaic Solar Panel Module. The product has a Lithium Ion 500 - cycle battery 2 x 3.7 V/ 2200 mAh, and a battery management system with overcharge protection and low battery cut offs. In addition, it supplies 250 hours of Kerosene Lantern equivalent light on a single charge. The dimensions are 254 x 254 x 457 cm, and the weight is 1.3 kg.

Product Schematics

Technical Support

Provided by the manufacturer.

Replacement Components

Replaceable components provided by ECCODiva.

Lifecycle

The product has a 2-year warranty with the exception of the battery, which has a 9-month warranty.

Manufacturer Specified Performance Parameters

This product was designed to charge up to 85% efficiency and power multiple lamps.

Vetted Performance Status

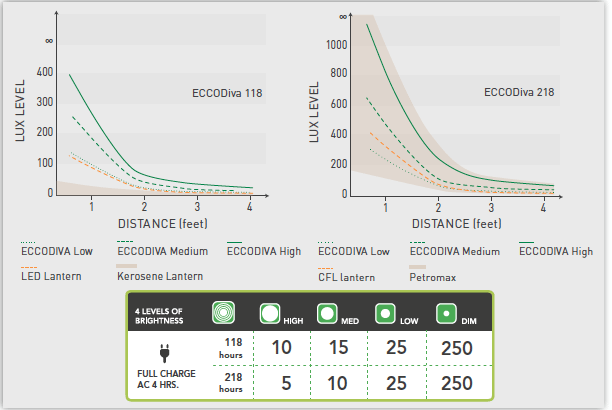

Results from Lighting Global's testing determined a full battery run time of 9.7 hours on high and 15 hours on medium. The run-time per day of solar charging was 8.3 hours on high and 12 hours on medium. The total light output was 82 lumens on high and 58 lumens on medium. The total lighting service was 680 lumen-hours/ solar-day on high, and 700 lumen-hours/ solar-day on medium. The lamp type is a single LED Lumen maintenance, and it retains 104% of original output after 2,000 hours run time.

Safety

Users must take appropriate precautions when using electrical devices.

Complementary Technical Systems

None

Academic Research and References

None

Compliance with regulations

This product meets the Lighting Global Global Quality Standards in truth in advertising, lumen maintenance, quality, and warranty.

Evaluation methods

The ECCODiva 118 was tested according to the Quality Test Method in the IEC 62257-9-5.

Other Information

Product can be purchased on AmazonFlipkartPepperfly, Waamall, Waaree Further information on product available on website
