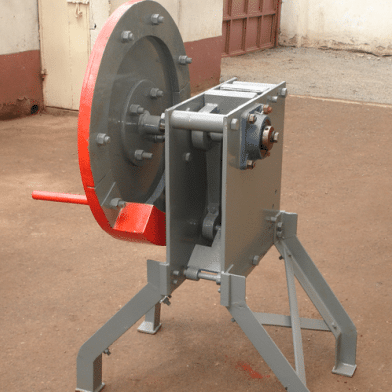

Makiga Stone Crusher

Upcoming Update

The Makiga Stone Crusher can crush stones to gravel of 1/4" to 2 1/2". It is operated manually and can be adjusted to the size the user needs.

Developed By Unknown
Content Partners
Unknown

Author

Product Description

The Makiga Stone Crusher is a manual machine that can crush stones to gravel of an adjustable size, between 1/4″ to 2 1/2″. It is made from durable material and has a lubrication system meant to expand the life of the machine.

Target SDGs

SDG 11: Sustainable Cities and Communities

Market Suggested Retail Price

$1.90

Target Users (Target Impact Group)

Household, Community, Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Makiga Engineering Services Ltd

Manufacturing/Building Method

The Stone Crusher can be used on a construction site or a small production facility.

Intellectural Property Type

Patent

User Provision Model

The user buys directly from Makiga. They can contact the different offices in Africa, inquire directly on the website or contact them in social media to learn more.

Distributions to Date Status

Hundreds of thousands of construction machines have been delivered.

System Dimensions

Unknown

Portability (yes/no)

Yes

Raw materials used

Rocks

Recommended water content (ratio)

N/A

Induced pressure (Mpa)

N/A

Power source

Manual

Finished unit dimensions

1/4 inch, 1/2 inch, 3/4, 1 inch and 2 inches

Rate of production (units/hour)

2 tonnes

Curation duration (days)

N/A

Suitable climate

N/A

Design Specifications

The crushing jaws are made from high manganese steel, and the main shaft is a heat treated, hardened alloy steel that is very durable. There is a loaded safety tie bar that prevents the overloading of the jaws. To use, the stones are loaded inside and the wheel is turned.

Product Schematics

Technical Support

The purchase includes training on operation and maintenance and an illustrated manual.

Replacement Components

Unknown.

Lifecycle

Very durable.

Manufacturer Specified Performance Parameters

Making a durable stone crusher with adjustable toggle plates and ballast sizes.

Vetted Performance Status

Unknown.

Safety

Loading stones into the machine could lead to injuries if the user's hand gets caught between the machine and a stone. There is risk since the jaws that crush the stones are open and a hand could be inserted.

Complementary Technical Systems

Makiga offers a variety of machines that could be used for other aspects of the same construction project.

Academic Research and References

None found.

Compliance with regulations

Unknown.

Other Information

“Contact information”, Makiga Engineering Services, LTD, accessed on March 4, 2024, https://makiga-engineering.com/contact-us/

“About us”, Makiga Engineering Services, LTD, accessed on March 4, 2024, https://makiga-engineering.com/about-us/

Makiga has a variety machines available for different purposes. Social Media: Twitter Facebook
