PowerSpout PLT

Upcoming Update

The PowerSpout is a small scale turbine with a micro-hydro generator designed to use watercourses to produce electricity.

Tested By
  • EcoInnovation Ltd. (Powerspout)
Content Partners
Unknown

Author

Product Description

PowerSpout is a brand of domestic scale hydro products for power generation and water pumping applications developed in New Zealand. The PowerSpout PLT is a compact hydropower technology that combines a pelton turbine, smart drive permanent magnet alternator and power control electronics into an integrated product. PowerSpout has other micro-hydropower products, including products for low head, turgo and pump applications.

Target SDGs

SDG 7: Affordable and Clean Energy

SDG 8: Decent Work and Economic Growth

Market Suggested Retail Price

$2,243.00

Target Users (Target Impact Group)

Household, Community, Small and Medium-sized Enterprises

Distributors / Implementing Organizations

The PowerSpout is distributed by various global distributors but its prime distributors are Aurora Power and Design, EcoInnovation, EcoVolt and Scoraig Wind Electric.

Competitive Landscape

Manufacturing/Building Method

This product is mass produced in New Zealand.

Intellectural Property Type

Trademark

User Provision Model

Users can obtain the product from the manufacturer or global dealers.

Distributions to Date Status

As of 2016, 1,500 units have been distributed.Interview with representative

Output voltage: (VAC)

200 VAC

Power output, min (kW at head, flow rate)

0.1 kW at 3 M, 0.1 L/s

Power output, max (kW at head, flow rate)

1.2 kW at 130 M, 10 L/s

Output frequency (Hz)

Depends on the inverter and end-use application

Minimum required head (m)

3 m

Minimum required flow rate (L/s)

0.1 L/s – 10 L/s

Number of nozzles

1 or 2 nozzles

Weight (kg)

23 kg

Phase

3-phase

Design Specifications

The PowerSpout is a turbine that uses a micro-hydro generator to produce electricity by the conversion of the kinetic energy of a watercourse into electrical energy. Its main components are the turbine's blades, rotor, and a permanent magnet alternator. Since the turbine can be built in different sizes for different applications, each model has different technical specifications.

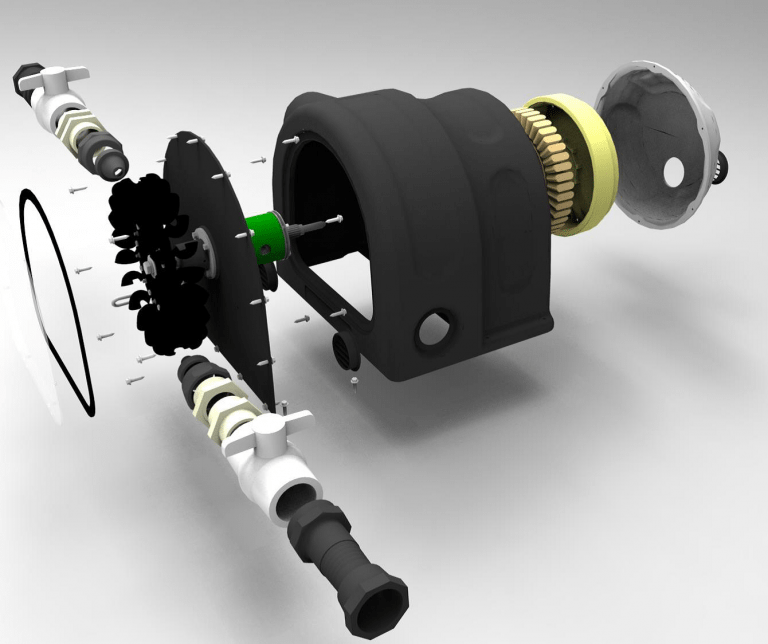

Product Schematics

Technical Support

A user manual is supplied with the product. If further technical assistance is needed, users can contact the manufacturer in New Zealand. Local electricians or plumbers can be of help but may not be familiar with the specific technology.

Replacement Components

Replacement parts can be purchased from the manufacturer or dealer.

Lifecycle

This product has warranty on different parts of the system, and has an expected lifetime of 15+ years.Interview with representative

Manufacturer Specified Performance Parameters

Designer specified performance targets include: modular, affordable, and durable.

Vetted Performance Status

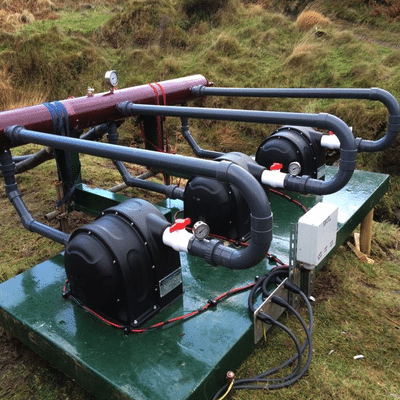

A case study on a grid-tied Powerspout installation was carried out by EcoInnovation and showed that an average power of 533 W is achieved in contrast with the 810 W stated by the manufacturers. The reason for this results was attributed to not having stable conditions of head and flow. However, even in this conditions it was found that end users still can save money on electricity with the product. Similar case studies were carried out by EcoInnovation but on a high head installation and on an installation and system outline.

Safety

Be sure to follow proper electrical installation and control guidelines.

Complementary Technical Systems

Some complementary systems are the MPPT or PWM battery charge controller, the DC to AC Inverters, the Electromagnetic Compatibility (EMC) Filters, a Battery Storage and Diversion Loads.

Academic Research and References

Donnelley, D., 2008, Totara Valley Micro-Hydro Development. Master’s thesis, Massey University, New Zealand.

Tehan, E., 2010, The Design, Installation and Operation of a Community Minigrid: Remote Implementation of Renewable Energy. Master’s thesis, The University of New South Wales, Sydney.

Penny, G., 2005, Energy in Rural Maori Communities. Water & Atmosphere. Water & Atmosphere, 13(4).

Find a Dealer. n.d. PowerSpout.

EcoInnovations Ltd. 2017. PowerSpout Technical Specifications (PowerSpout PLT, TRG, and LH). powerspout.com. New Plymouth, New Zealand : EcoInnovations Ltd.

Pelton (PLT) Info. n.d. PowerSpout.

PLT Parts & Accessories. n.d. PowerSpout.

EcoInnovations Ltd. 2017. PowerSpout Warranty and Terms. powerspout.com. New Plymouth, New Zealand : EcoInnovations Ltd.

EcoInnovations Ltd. 2016. Case Study 5 – Grid tied PLT installation. powerspout.com. New Plymouth, New Zealand : EcoInnovations Ltd.

EcoInnovations Ltd. 2016. PLT Case Study 3 – High head installation. powerspout.com. New Plymouth, New Zealand : EcoInnovations Ltd.

EcoInnovations Ltd. 2014. PowerSpout PLT Installation and system outline for client. powerspout.com. New Plymouth, New Zealand : EcoInnovations Ltd.

EcoInnovations Ltd. 2018. PLT User documentation. powerspout.com. New Plymouth, New Zealand : EcoInnovations Ltd.

PowerSpout Document Index. n.d. PowerSpout.

Catalyst® R&D Ltd. 2009. Assessing the Carbon Footprint of a PowerSpout. powerspout.com. New Plymouth, New Zealand : EcoInnovations Ltd.



Compliance with regulations

The product complies with several regulations (see references).

Evaluation methods

Catalyst R&D LTD performed a lifecycle analysis.

Other Information

Installation manuals, technical specifications, reference documents, case studies and PowerSpout videos.
