Puxin PX-ABS-3.4M3

Upcoming Update

Puxin PX-ABS-3.4M3 is a biogas digester that converts organic waste, animal, or human manure into biogas and organic fertilizer.

Content Partners
Unknown

Author

Product Description

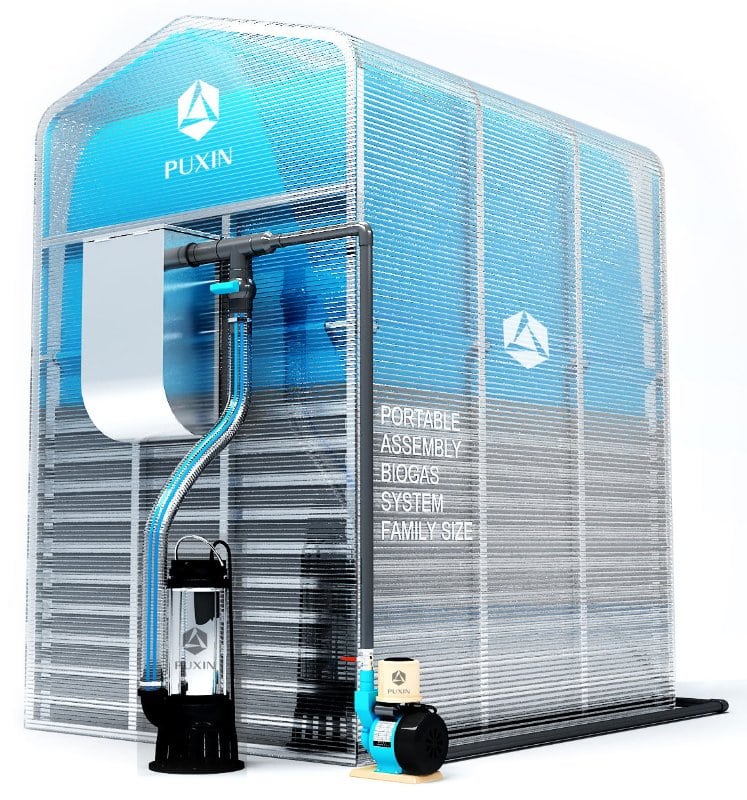

Puxin biogas system is a family-size digester that converts organic waste, animal, or human manure into biogas and organic fertilizer. The biogas digester is also removable and can be combined with different fertilizer types. The unit is distributed as a Do It Yourself Kit biogas system. The generated biogas can be used for cooking, water heating, and generating electricity. See this video of the product.

Target SDGs

SDG 7: Affordable and Clean Energy

SDG 8: Decent Work and Economic Growth

Market Suggested Retail Price

$850.00

Target Users (Target Impact Group)

Household, Community, Small and Medium-sized Enterprises, Public Sector Agencies

Distributors / Implementing Organizations

Shenzhen Puxin Technology

Competitive Landscape

Direct competitors include HomeBiogas, Sistema Biobolsa, Flexi Biogas BG5, and SimGas GesiShamba.

Manufacturing/Building Method

The biogas digester is manufactured through mass production and the whole product can be assembled by the user without training. The place of production is China

Intellectural Property Type

Patent

User Provision Model

Users can obtain the biogas system on Alibaba. Delivery within 2 weeks after receiving payment. The system is packed in a carton box, ready to install.

Distributions to Date Status

The manufacturers have 2-5 agents that act as distributors as of 2019.Interview with representative.

Output energy product

2 m3 biogas per day

Average daily biogas production (m3/day)

1.3 m3/day

Description of waste source(s)

Food waste, animal manure, human manure

Waste input requirements (kg per hour or day)

Food waste 25 kg/day; pig manure 45 kg/day; cow manure 60 kg/day; chicken manure 26 kg/day; human manure 32 kg/day; vegetable 65 kg/day

Description of other input requirements

3 kWh

Other input requirements (amount per hour)

Unknown

System dimensions (m)

156x120x195cm

Design Specifications

Design:

  • Net weight: 150 kg
  • Specification: 156 x 120 x 195 cm
Puxin biogas units perform anaerobic digestions. Anaerobic digestion is the breakdown of organic material by micro-organisms in the absence of oxygen. It produces biogas, a methane-rich gas that also contains carbon dioxide with trace amounts of other gases; and digestate, a source of nutrients that can be used as a fertilizer. The digestion process begins with bacterial hydrolysis of the input material in order to break organic polymers into smaller molecules that finally become methane and carbon dioxide after acidogenesis and methanogenesis. Standard equipment:

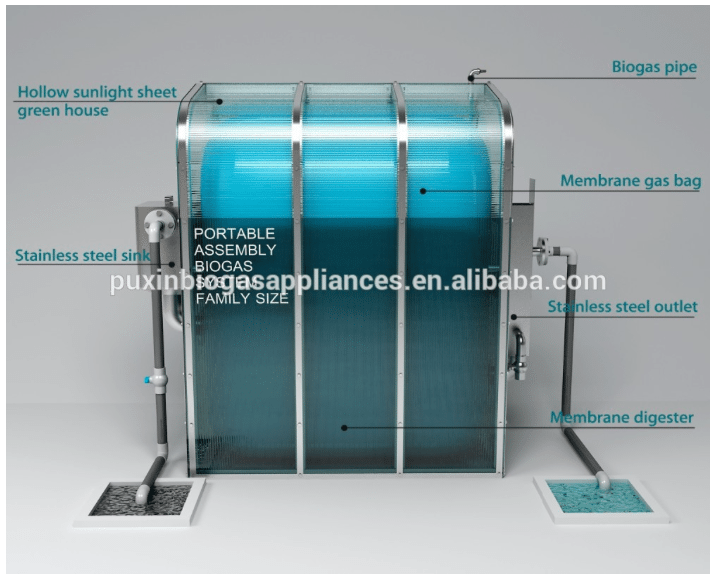

  • Portable Assembly Membrane Digester 3.4 CBM
  • Biogas pump 220 V AC 15 W
  • Biogas desulfurizer PX-1 L, filter of size 1 L
  • Biogas Fitting
  • Stainless steel sink
  • Stainless steel outlet
  • Hollow sunlight sheet greenhouse
Operation:
  • Nominal gas pressure: 0.12 bar
  • Power of biogas booster pump: 15 W
  • Minimum Ambient Temperature: 10 °C
  • Waste capacity: Food waste 25 kg/d; Pig manure 45 kg/d; Cow manure 60 kg/d; Chicken manure 26 kg/d; Human manure 32 kg/d; Vegetable 65 kg/d

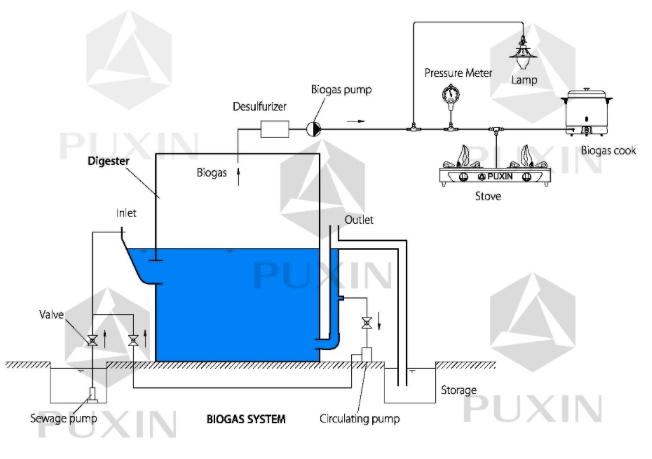

Product Schematics

Technical Support

Supported by Puxin. Installation and operation manuals available upon request.interview with representative

Replacement Components

Some of the components replaced by the manufacturer are the feeding pump, circulating pump, and membrane digester.

Lifecycle

Over 10-year lifetime with a 1-year warranty against manufacturing defects

Manufacturer Specified Performance Parameters

This plant was designed to make gas production efficient, be convenient for transport, and easy to install.

Vetted Performance Status

Testing of the product was done by Shenzhen USG Labs, the verdict was that the biodigester is capable of converting organic waste into biogas.

Safety

Extreme caution is necessary when working with biogas. Adequate ventilation, appropriate precautions, good work practices, and adequate personal protective equipment will minimize the dangers associated with biogas. Biogas storage & production bag is made of macromolecular structure polylayer design, therefore there is no leaking risk.

Complementary Technical Systems

Other related products can be added - not included in the unit price: 1. Feeding pump for sewage sludge disposal 2. Circulating pump for raw material feeding and anaerobic digestate mixing 3. Grinder for food waste shredding 4. Electric heater can be added for cold regions 5. Biogas stove, biogas rice cooker, biogas generator, etc 6. Biogass Lamp

Compliance with regulations

The product has the ISO 12100 certification

Evaluation methods

Each digester will be installed and inspected after manufacturing. Before sending it to Puxin, the factory will conduct a second inspection. Once the product has arrived at the company, the company’s technicians also need to install and check again.Interview with representative

Other Information

Special size products can be manufactured when ordered in batch.
