Updated on March 8, 2024

·

Created on June 24, 2016

Synthetic Sleeping Mat

Synthetic sleeping mat is a waterproof and tearproof mat.

Developed By
  1. NRSRelief
Content Partners
Unknown

Author

Product Description

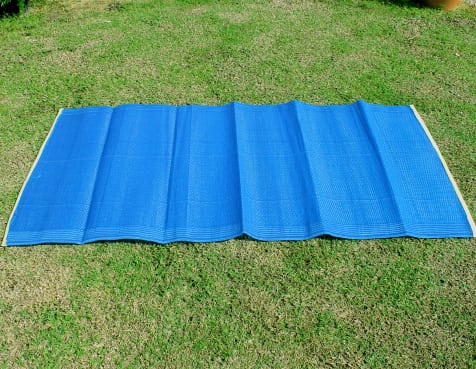

Synthetic Sleeping Mat is a waterproof and tearproof sleeping mat designed for emergency relief, suitable for 1 adult or 2 children.

Target SDGs

SDG 11: Sustainable Cities and Communities

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$56.27

Target Users (Target Impact Group)

Household, Public Sector Agencies, NGOs

Distributors / Implementing Organizations

United Nations High Commissioner for Refugees, International Federation of Red Cross and Red Crescent Societies, International Committee of the Red Cross.

Competitive Landscape

Direct competitors include Viva™ Thermal Sleeping Mat and Emergency Floor.

Manufacturing/Building Method

Mat is made of 100% synthetic yarn virgin or recycled raw material. Marking, logo and color are customized.

Intellectural Property Type

Trademark

User Provision Model

Synthetic sleeping mat can be ordered via Unicef

Distributions to Date Status

Unknown

Furniture type

Mat

Lifecycle

+12 months

Material

100% virgin mono-lament or multi-lament warp and thick tape PP or Polyester yarn in weft

Assembly Method

N/A

Tools included

N/A

Tools needed

N/A

Other information

None

Design Specifications

Dimensions: 1.8 x 0.9 m2 Weight: 0.5 kg/m2 Waterproof, tearproof, and material trim finish Material: 100% synthetic yarn woven 2/2 twill structure using a monofilament or multifilament warp. Minimum 500 deniers virgin propylene multi-filament straws for wefting Mat sides secured with a woven bias-binding tape with stitches through mat fabric.

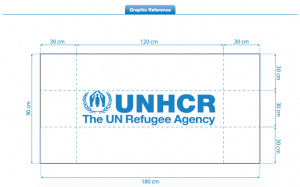

Product Schematics

Technical Support

None

Replacement Components

The mat can most likely be patched with local materials if it becomes ripped. The manufacturer does not provide any replacement components.

Lifecycle

Expected to last +12 months of use under hard tropical conditions

Manufacturer Specified Performance Parameters

The mat is designed to be waterproof and tearproof, and is suitable for 1 adult or 2 children.

Vetted Performance Status

Unknown

Safety

Unknown

Complementary Technical Systems

A similar product, the Viva Thermal Sleeping Mat, is an item featured in the UNHCR/ICRD/IFRC's Viva Winterisation Kit, which also includes a fire retardant winterization liner, a partition, heat-resistant floor protector (for a stove) and a heat-resistant chimney sleeve. The Synthetic Sleeping Mat could also be used along with the items found in this kit.

Academic Research and References

Compliance with regulations

Meets UNHCR standard for UNHCR relief efforts, which outlines distribution, relief planning, and relief action requirements.

Other Information

The Synthetic Sleeping Mat has replaced the Comfort Sleeping Mat in the NRS Relief Catalogue. Unicef Supply Catalogue - Synthetic Sleeping Mat
