Updated on March 11, 2024

·

Created on August 27, 2015

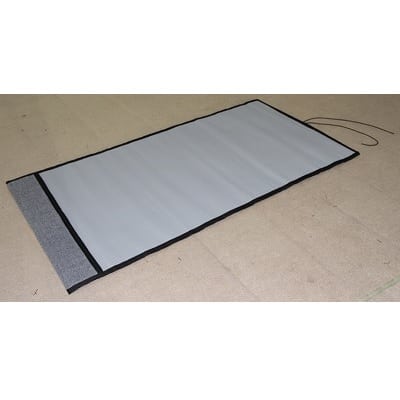

Viva™ Thermal Sleeping Mat

Upcoming Update

Insulating mat enables protection against the cold from the ground in a standard family tent.

Developed By
  1. NRSRelief
Tested By
  • The International Federation of Red Cross and Red Crescent Societies (IFRC)
  • United Nations High Commissioner for Refugees (UNHCR)
Content Partners
Unknown

Author

Product Description

The Viva Thermal Sleeping Mat is used for protection from the cold ground in severe conditions in a standard family tent. Target users are individuals in homeless and refugee shelters in cold climates.

Target SDGs

SDG 11: Sustainable Cities and Communities

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$2.20

Market Suggested Retail Price (Secondary Currency)

2.10

Target Users (Target Impact Group)

Household, NGOs

Distributors / Implementing Organizations

NGOs and partner organizations that acquire the floor mat from IFRC and NRS Relief.

Competitive Landscape

Direct competitors include Synthetic Sleeping Mat and Emergency Floor.

Manufacturing/Building Method

Available in bulk for necessary scenarios.

Intellectural Property Type

Trademark

User Provision Model

Professional organizations and NGOs are the only organizations allowed to purchase and distribute the product at the moment. Product is purchased in bulk, with estimated load-ability, packing and shipping information available

Distributions to Date Status

Unknown

Furniture type

Floor mat

Lifecycle

Unknown

Material

The insulating mat is an assembling of three layers: 1) ground-side plastic mat with a double weave, 2) aluminized canvas, and 3) upper-side fleece blanket

Assembly Method

None

Tools included

None

Tools needed

None

Other information

None

Design Specifications

3 layered-design: double weaved plastic, aluminized canvas, fleece blanket One open end to allow filling with local material to form a basic mattress All material fully fire retardant. Dimensions (LxW) (m²): 1.8 x 0.9 Shipping Weight (kg): 3.0

Product Schematics

Technical Support

Unknown

Replacement Components

Unknown

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

Materials specification: - First layer, plastic mat: Plastic floor mat made in a tightly woven twill structure, double thickness (2/1, 3/1, 2/2, 3/2) Virgin polypropylene (PP) multifilament 500 deniers in warp and virgin polypropylene (PP) hollow tube in weft, not containing any filler. Fire retardant to pass CPAI84/5 Tight woven, with minimum 1000 tubes per meter length Weight: 500g/m² minimum Colour: any colour. - Second layer, aluminised canvas: Strong synthetic canvas with durable aluminium coating, soft and noiseless, fire retardant to pass CPAI84/5 Tear resistance under ISO9073-4: minimum 40N in warp and weft - Third layer, fleece blanket: medium thermal, PLUS fire retardant to pass CPAI84/5 Mat opening: Mat opens at one end to allow access between plastic and aluminised canvas; allows for insertion of support/comfort products. Closes with a fold.

Safety

Unknown

Complementary Technical Systems

The mat is also available as an item in Viva's Winterisation Kit, which contains other products developed to protect against other issues found in cold conditions. Additionally, soft materials/mattress may be inserted into the sleeve, of the mat to improve comfort.

Academic Research and References



“Products – Viva Thermal Sleeping Mat”, NRS Relief, accessed on March 11, 2024, https://www.nrsrelief.com/products/viva-thermal-sleeping-mat/

“Specifications Sheet – Viva Thermal Sleeping Mat”, NRS Relief, accessed on March 11, 2024, https://www.nrsrelief.com/wp-content/uploads/2023/06/Viva-thermal-sleeping-mat-UNHCR-ICRC-IFRC-09062023.pdf

Compliance with regulations

Components pass CPAI84/5 fire retardant test. Second, aluminized canvas layer is tear resistant under ISO9073-4 Minimum Standards in Shelter, Settlement and Non-Food Items, IFRC Meets UNHCR / ICRC / IFRC standards.

Evaluation methods

UNHCR’s report on Winterization Assessment & Recommendations
