Updated on January 10, 2024

·

Created on July 28, 2017

T4T Mak IV Incinerator

Upcoming Update

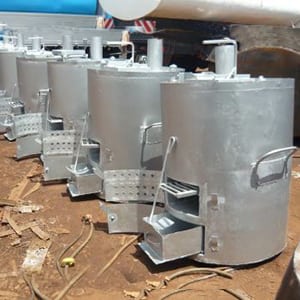

The T4T Mak IV Incinerator is a solid waste incinerator manufactured and distributed in Kampala, Uganda.

Tested By
  • IT Power Group (ITP)
  • University of Mississippi
Content Partners
Unknown

Author

Product Description

The T4T Mak IV Incinerator is a solid waste incinerator that turns waste into ash while avoiding the spreading of toxic gases. It is specially targeted at health facilities for safe incineration of hospital waste but can also be used in schools, universities and other complexes with a substantial waste generation.

Target SDGs

SDG 6: Clean Water and Sanitation

Market Suggested Retail Price

$4,900.00

Target Users (Target Impact Group)

Public Sector Agencies

Distributors / Implementing Organizations

The Incinerator is made and sold by Technology for Tomorrow Ltd (T4T), a company which has its roots in research and development at Makerere University. Examples of clients the incinerator has been sold to are local governments, EGPAF, Mercy Corps, Baylor Uganda, ICRC and Save the children. Interview with Manufacturer in 2018

Competitive Landscape

Direct competitors include De Montfort Medical Waste Incinerator.

Manufacturing/Building Method

The product is factory built by T4T Ltd in Kampala. Interview with Manufacturer in 2018

Intellectural Property Type

Trademark

User Provision Model

Users can obtain the product directly from the T4T website.

Distributions to Date Status

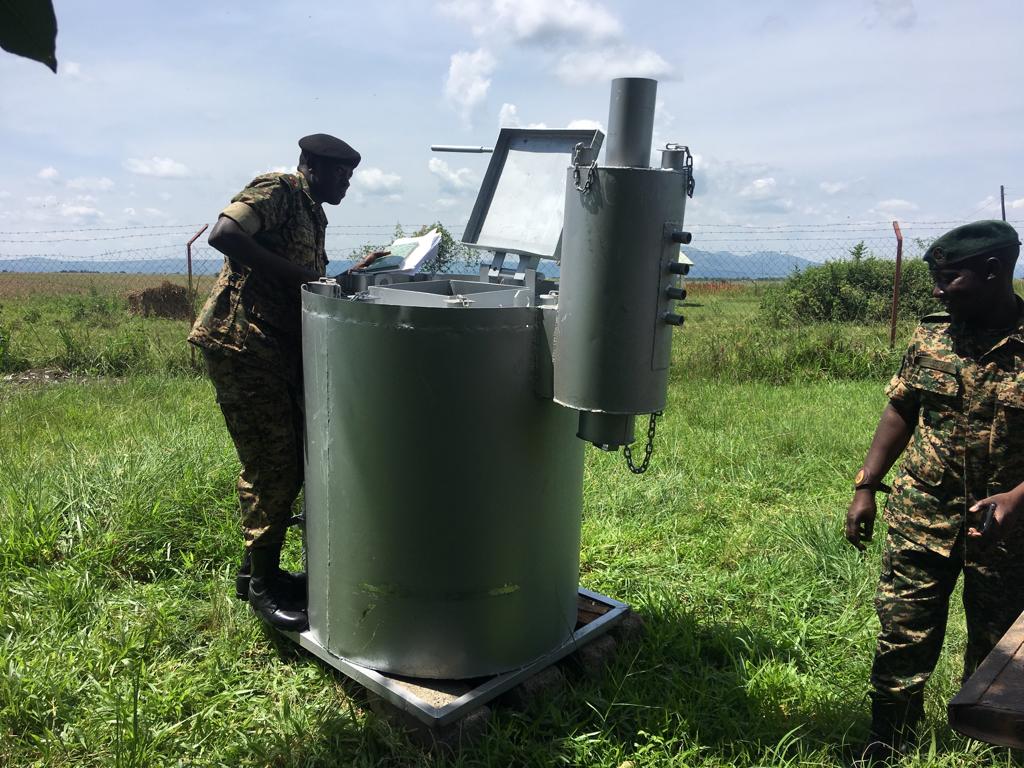

As of 2018, more than 50 incinerators have been installed in Uganda. Interview with Manufacturer in 2018 Installations have been made at Kayunga Hospital as well as Health Centres in Masaka, Kitgum, Gulu and Pader districts in Uganda. Incinerators were in use at the Makerere University, however, the incinerators have been removed due to new regulations in Kampala. 6 incinerators have been installed in Soroti and a new installation was planned in Mokono for September 2017. Interview with Manufacturer

Capacity (kg)

5 kg

Type of energy

Fire-power

Energy Requirement (kWh)

Unknown

Run-time (min)

25 min

Design Specifications

The T4T Mak IV Incinerator is primarily built from stainless steel. The top of the incinerator is covered with sand or refractory powder to stop air leakage and prevent heat loss. The incinerator has 3 chambers. The first chamber is the largest chamber where the solid waste is loaded in batches. Gases produced from the burning are retained in the smaller second and third chamber until the gases are released as colourless smoke. The incinerator takes 25 to 60 minutes to warm up and can destroy 15 kg/hr. The medium temperature in the 3 chambers is 850°C but can reach up to 1050°C. The combustion efficiency of the incinerator is at least 98%.

Product Schematics

Technical Support

Technical support can be done by a trained general technician or through T4T. T4T installs the system for extra cost and training on how to use and maintain the product can also be bought from T4T.

Replacement Components

Replacement components can be ordered from T4T.  Interview with Manufacturer in 2018

Lifecycle

The T4T Mak IV Incinerator has a lifetime of 5 years when used about 4 hours per day.

Manufacturer Specified Performance Parameters

Designer specified performance targets include reducing the volume of waste by 95%.

Vetted Performance Status

Testing performed by the manufacturer determined that the incinerator can burn up to  5 kg in about 25 minutes.

Safety

Potential hazards related to the operation of this product include accidental burning as the temperature can reach up to 1050°C.

Complementary Technical Systems

The burning of wastes can be used to heat water into super-heated steam, which can be used to either sterilize medical equipment or generate electricity by turning of a turbine.

Academic Research and References

Goal 6. Available: https://sdgs.un.org/goals/goal6

Compliance with regulations

The Ugandan Ministry of Health recommends the use of the product for medical waste management. The product complies with regulations in Uganda but cannot be used for general waste in Kampala. This is due to a local law which makes it illegal to use incinerators for all wastes apart from medical waste. As a result, the incinerators that were used in the capital city are no longer in use. However, this law does not apply to all of Uganda.Interview with Manufacturer in 2018

Evaluation methods

The product cites temperature reached, robustness and time to burn waste as evaluation criteria.

Other Information

T4T developed several incinerator models with different sizes and target users. The price and performance vary according to the model. For example, the product price ranges from 2,735 USD to 16,800 USD and lifetime spans from 4 to 8 years.
