UNICEF/UNHCR Reinforced Plastic Tarpaulin

Upcoming Update

Fire retardant, waterproof, rotproof, and UV-resistant reinforced plastic tarpaulin for disaster relief and emergency operations.

Developed By Unknown
Content Partners
Unknown

Author

Product Description

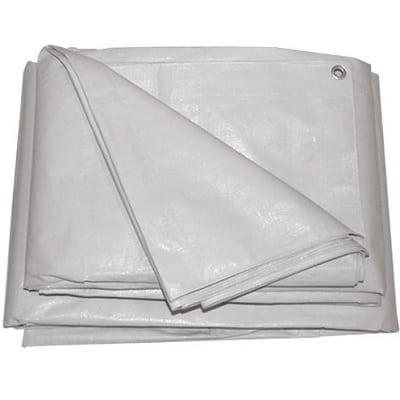

The UNICEF/UNHCR Reinforced Plastic Tarpaulin is a 5 x 4 m woven high density polyethylene tarpaulin featuring nylon ropes and plastic eyelets to secure the tarpaulin.

Market Suggested Retail Price

$12.00

Distributors / Implementing Organizations

Manufacturing/Building Method

This product is mass-produced in Dubai by NRS Relief following UNHCR/UNICEF Standard

Intellectural Property Type

Trade Secret

User Provision Model

Users can obtain a quote of the product from NRS Relief

Distributions to Date Status

The company produces and distributes Woven Flexible Tarpaulin since the decade of 1980, and there is not a registry of how many of this product have been distributed so far. However, the manufacturer estimated that around 100,000 were distributed in the last years  Interview with manufacturer

Intended number of occupants (#)

Unknown

Speed of assembly

Unknown

Footprint area (m²)

20 m²

Internal volume (m³)

Unknown

Material composition

Woven high density black polyethylene (HDPE) fibers, warp x weft, laminated on both sides with low density polyethylene (LDPE) coating.

Lifespan (years)

2 years

Flammable Flash Point Temperature (°C)

200 °C

Maximum snow load (kg/m²)

Unknown

Maximum wind speed (km/h)

Unknown

Suitable climates

All climates

Design Specifications

Reinforced Plastic Tarpaulin key features:

  • UNHCR/UNICEF standard
  • Fire retardant (optional)*, waterproof, rotproof and UV-resistant
  • Reinforced plastic tarpaulin in 4m x 5m sheet or 4m x 50m roll developed by international research project and designed for long outdoor use in all climates
  • Made of woven high density black polyethylene (HDPE) fibers, warp x weft, laminated on both sides with low density polyethylene (LDPE) coating
  • Highly recommended for family shelter protection

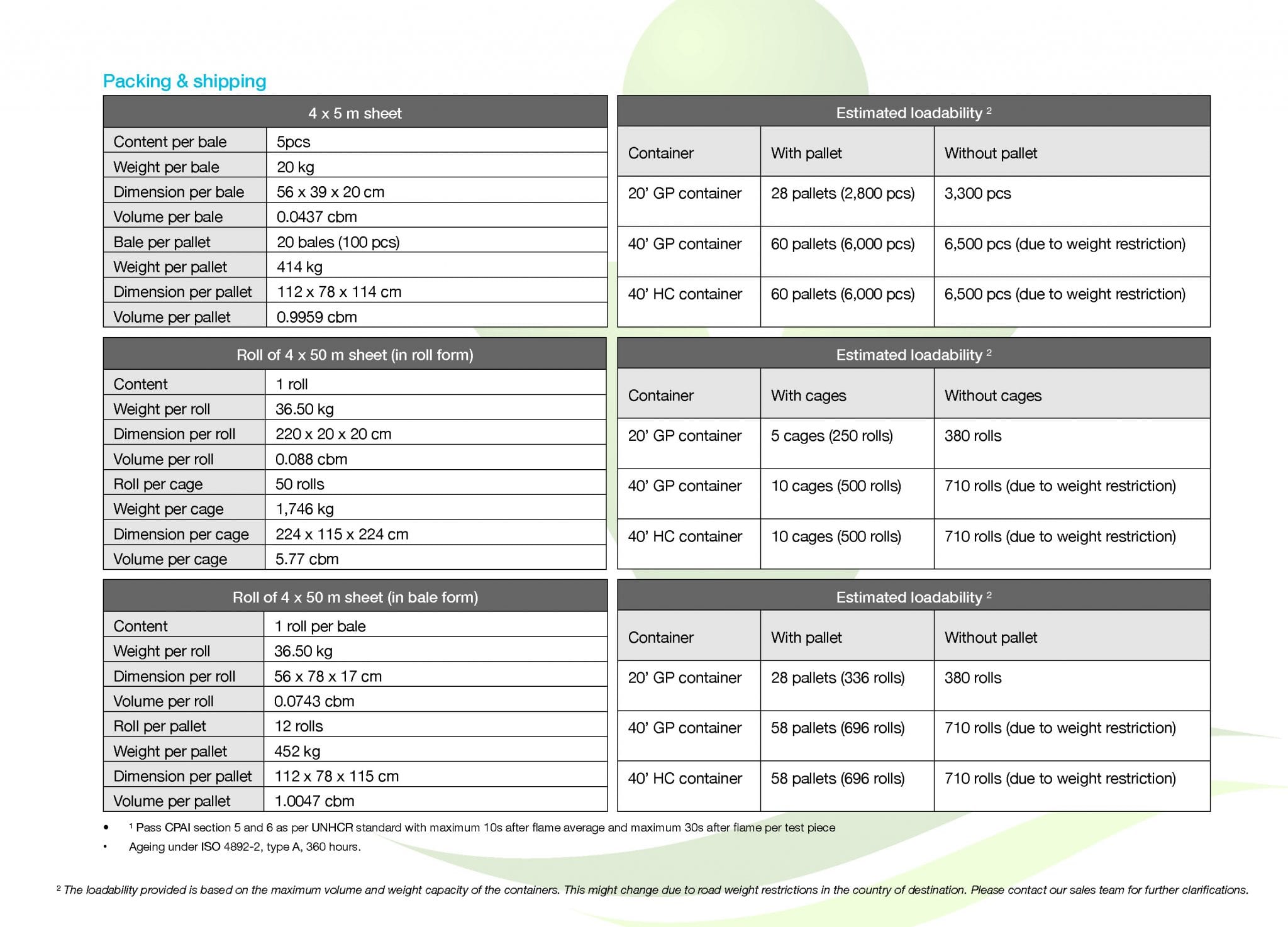

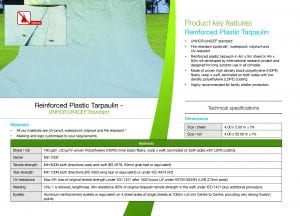

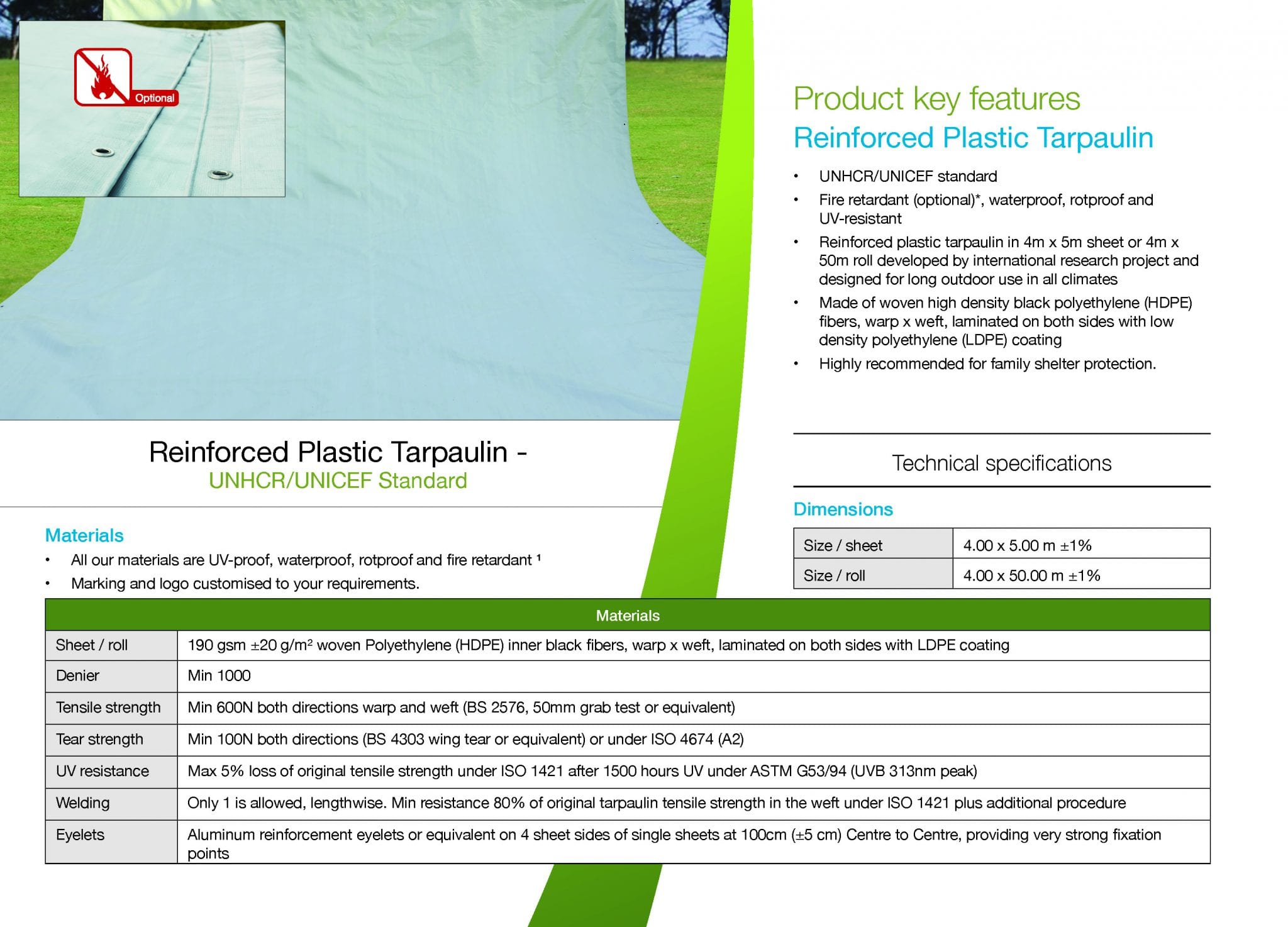

Product Schematics

Technical Support

There is no technical support provided and users are expected to maintain the product on their own.

Replacement Components

Unknown

Lifecycle

2 year lifespan in tropical climate with maximum sun exposure. No warranty or disposal information.

Manufacturer Specified Performance Parameters

The product was designed to resist water, rot, soil fauna, high temperatures (-20° to +80°C), and fire (flammability flash point over 200°C)

Vetted Performance Status

Unknown

Safety

N/A

Complementary Technical Systems

The reinforced plastic tarpaulin system is intended to drape/stretch over an erected structure - one built by the associated relief organization or the user.

Academic Research and References

None

Compliance with regulations

The manufacturer's technical specifications report the product complies with different standards for tensile strength, tear strength, UV resistance and fire risk.

Other Information

None
