Zero Till Seed Fertilizer Drill

AgroVision

The product is designed for simultaneous seed drilling and fertilizer application at different depths to improve germination.

Snapshot
Manufacturing & delivery
Performance & use
Research & standards
Feedback

Product description Brand name and product description

The Zero Till Seed Fertilizer Drill is designed to drill seeds and apply fertilizer simultaneously, by delivering them separately in a single drive and at different depths. Fertilizer is first placed, covered with soil then the seed and a roller is used to wholly cover the seeds. The product comes in various models;A-ZSFD9 A-ZSFD11 A-ZSFD13.

Target region(s) Target region for distribution/implementation (listed by country if specified)

Worldwide

Distributors/implementing organizations Organization(s) distributing/deploying this product directly to communities/individuals?"

India Agrovision Implements

Market suggested retail price Price per unit or service price per usage/terms (USD). Subsidies noted.

~1,087USD (~80,000 Rs)^{converted on September 2021}

Competitive landscape Similar products available on the market. May not be a comprehensive listing.

Mahindra fertilizer seed cum drill, VST Shakti and John Deere fertilizer seed cum drill

SDG targeted United Nations Sustainable Development Goals (SDGs) targeted with this product/application/service

Goal 2: Zero hunger

Goal 12: Responsible consumption and production

Target user(s) Target user/consumer base (country, income segment)

Small and medium scale farmers

Manufacturing/building method(s) Detail regarding solution production or construction method (instructions, mass production capacity, custom made,etc...)

This product is mass produced in India.

Product Intellectual Property Open source/IP protected (note patent)/trade secret/other?

Trademarked

User Provision Model Where can the product be purchased/acquired by end users?

Users can buy the implement from Indiamart or directly from manufacturer

Distribution to date Number of units that have been deployed, downloads or users to date

Unknown

Fields marked are sourced values that have been evaluated by the manufacturer or a third party, all others are design specifications.

Targeted crops

List of crops that this technology drills

All

Seed rate (kg/ha)

Quantity of seeds drilled, measured in kilogram per hectare

Unknown

Feedstock rate (kg/hr)

The rate of drilling, measured in kilograms per hour

Unknown

Working width (m)

Space covered in a single run

9 tines - 1.7 11 tines - 2.08 13 tines - 2.46

Seeding depth (cm)

Depth of the buried seeds

5 -10

Number of rows

The number of rows the technology drills

9, 11 and 13 tines

Storage capacity (kg)

Seed storage capacity

Seed box capacity: 45-65 kg, fertilizer box capacity: 50-85 kg depending on number of tines

Portable or stationary?

Is the system portable or stationary?

Portable

Size

The dimensions of the implement (l x w x h), measured in meters

Unknown

Materials

List of materials used to build the implement

Nylon type fluted roller

Field coverage (ha/hr)

The rate of work, measured in hectares per hour

Unknown

Weight (kg)

Overall weight of the implement, measured in kilograms

270 - 370

Power source

Type of energy used to power the seeder

Motorized

Power rating (W, if applicable)

Power required to run the equipment

It can varying based on the model from 30 - 85 HP

Design specifications Component and Operation overview including power, portability, facility requirements, preventative maintenance and user training requirements

The product is designed to drill seeds and apply fertilizer simultaneously but separately. The implement contains different containers to allow separate placement of seeds and fertilizer. The seeds and fertilizers are released by a screw sort of conveyor system. Depending on the necessity and area of the farmland, quantity of seeds to be drilled and fertilizer to be applied can be a conformed.

MODEL	A-ZSFD9	A-ZSFD11	A-ZSFD13
NO.OF METERING WHEELS	18	22	26
NO. OF DISTRIBUTION PIPES	18	22	26
NO. OF ROWS	9	11	13
WORKING WIDTH	1410 mm	1760 mm	2110 mm
SEED BOX CAPACITY	45 Kg.	55 Kg.	65 Kg.
FERTILIZER BOX CAPACITY	50 Kg.	70 Kg.	85 Kg.
ROW SPACING	Adjustable	Adjustable	Adjustable
GROUND WHEEL	15 Inch Diameter Spiked Roller	15 Inch Diameter Spiked Roller	15 Inch Diameter Spiked Roller
APPROX. WEIGTH	270 Kg.	320 Kg.	370 Kg.
REQUIRED TRACTOR	30 – 45 HP	50 – 65 HP	70 – 85 HP

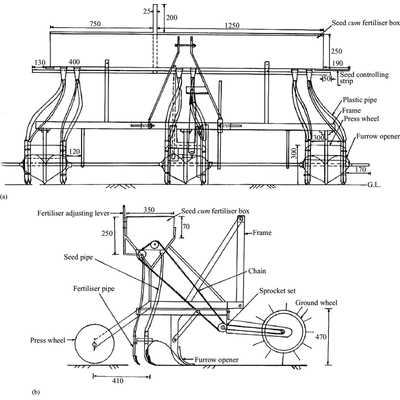

Product schematics Design and assembly illustrations

Technical support Technical support provided by

Provided by manufacturer.

Replacement components Availability of replacement components (in-country, by order,...)

Unknown

Lifecycle Disposal and warranty

Unknown

Manufacturer specified performance targets Designer / Manufacturer specified targets

Designer specified performance targets include: durability, easy to set up and excellent execution (plant spacing).

Vetted performance Findings of manufacturer evaluations or independent testing centers

Unknown

Testing organizations Independent lab, academic research centers, etc.

Unknown

Safety Potential hazards / risks related to operation of this product

Users must be cautious of the moving parts.

Complementary technical systems Performance of this product is improved with another technology (eg. Cookstoves and Wind-blocking skirts)

The company has other product offerings.

Academic research Academic research related to the product (e.g. published papers in peer-reviewed journals)

None

Compliance with regulations Product certifications and standards referenced by designer/manufacturer

The company has been certified by ISO 9001: 2008, EMS 14001, OHSAS and CE.

Evaluation methods Evaluation methods/protocols/guidelines referenced by designer or manufacturer.

Unknown

Other information

None

In context photographs (0)

You can use the form below to contribute a photo of this product.

In context files & documents (0)

Feedback from users, customers & distributors

Please let us know your experience in using this product through comments below.
