Mahindra Fertilizer Spreader

The Mahindra Fertilizer Spreader is a tractor mounted implement which is used to spread fertilizer.

Developed By
  1. Mahindra
Content Partners
Unknown

Author

Product Description

Mahindra Fertilizer Spreader is a product developed by Mahindra for spreading fertilizer in the field. It replaces manual labour and has a metering system that ensures uniform distribution reducing cost and time. It is tractor mounted implement which uses a rotating PTO (Power take-off) shaft as an input.

Target SDGs

SDG 2: Zero Hunger

SDG 12: Responsible Consumption and Production

Market Suggested Retail Price

$300.00

Target Users (Target Impact Group)

Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Manufacturer and dealers such as N.K. Tractors, and Vinayaka Motors

Competitive Landscape

Direct competitors include Shaktiman Square Fertilizer Broadcaster.

Manufacturing/Building Method

Mass produced in India

Intellectural Property Type

Trade Secret

User Provision Model

Users can obtain the product directly from the manufacturer as well as from the dealers such as N.K. Tractors and Vinayaka Motors.

Distributions to Date Status

Unknown

Spreading mechanism

Rotating disks

Power source

Power takeoff (PTO) shaft

Weight (kg)

Unknown

Size

Transport width: 0.8 – 1.15

Spreading width (m)

Storage capacity (kg or L)

Design Specifications

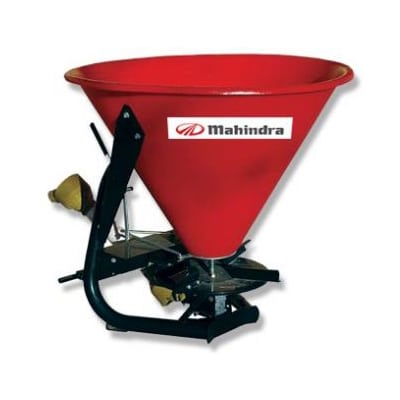

The Mahindra Fertilizer Spreader consists of two parts: a cone-shaped hopper, and a gear arrangement with a chain drive and spreader disc. The hopper is plastic and the main frame is tubular steel. Specifications:

Size 150 L to 500 L
Working Width 8-12 m
No. of Disc 1 Disc
Transport Width 0.8 m - 1.15 m
Spread Width (m) 0.8 m to 1.2 m
Operating RPM 540
Matching HP Above 25 HP
Opening Agitator Manual Controllable Openings Inbuilt Agitator

Product Schematics

Technical Support

Provided by manufacturer at their respective dealer locations. Interview with dealer

Replacement Components

Provided by manufacturer at their respective dealer locations. Interview with dealer

Lifecycle

Overall Unit: One year Parts and Labor Gearbox and Driveline: One year Parts and Labor This Warranty is limited to the replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part,and8 does not cover common wear items such as blades, belts, tines, etc

Manufacturer Specified Performance Parameters

Performance targets include:

  • Saves time, labour and fertilizers
  • Uniform distribution
  • Simple operating mechanism that is easy to maintain

Vetted Performance Status

Unknown

Safety

Safety instructions include the following but are not limited to:

  • Protective clothing and equipment should be worn.  Wear clothing and equipment appropriate for the job. Avoid loose fitting clothing.
  • Prolonged exposure to loud noise can cause hearing impairment or hearing loss. Wear suitable hearing protection such as earmuffs or earplugs.
  • Operating equipment safely requires the full attention of the operator. Avoid wearing radio headphones while operating machinery.

Complementary Technical Systems

Mahindra provides a wide variety of agricultural implements.

Academic Research and References

Chaudhari, S., et al., 2017, Design and Development of Fertilizer Spreader Machine. International Journal of Engineering Sciences & Research Technology.

Compliance with regulations

Unknown

Other Information
