E48 Egg Incubator

Upcoming Update

The E48 Egg Incubator is an electrically heated machine that provides optimal conditions for the incubation and hatching of eggs.

Tested By
  • Engoho Kuku Farmer
Content Partners
Unknown

Author

Product Description

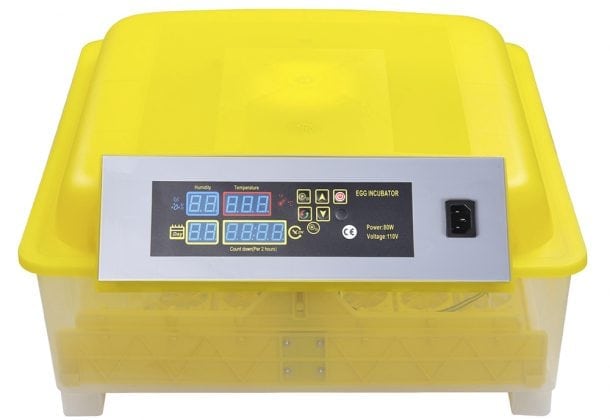

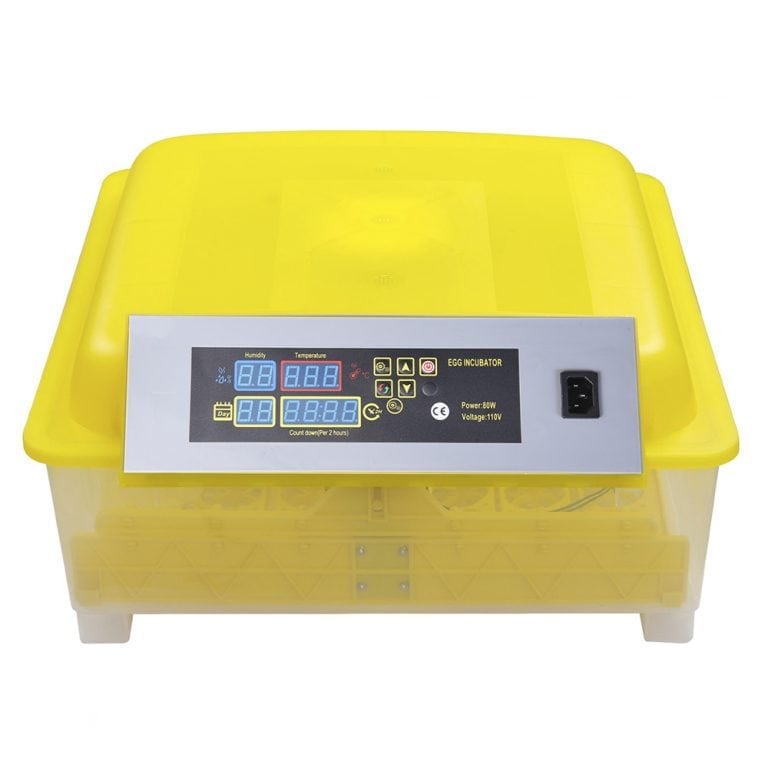

The E48 Egg Incubator is an electrically heated machine that provides optimal conditions for the incubation and hatching of eggs. It is designed for use by small scale farmers, where they can incubate up to a capacity of 48 eggs. The E48 Egg Incubator works with a closed loop mechanism that allows the user to set humidity, temperature, egg turning and positioning values on a user interface. The closed loop mechanism then adjusts the conditions inside the incubator to the optimum parameters to facilitate the development of the eggs.

Target SDGs

SDG 2: Zero Hunger

SDG 1: No Poverty

Market Suggested Retail Price

$200.00

Target Users (Target Impact Group)

Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Engokho Kuku Farmer , Ecochicks Poultry Limited

Manufacturing/Building Method

Batch production Interview with representative

Intellectural Property Type

Trademark

User Provision Model

Users can obtain the product directly from the manufacturing company; Wincom Limited or through online distributors such as Alibaba.com. The incubator can also be obtained from local distributors such as Engokho Kuku Farmer and Ecochicks Poultry Limited.

Distributions to Date Status

10,000 sets per month

Egg capacity

48 eggs

Egg turning mode

Automatic egg turning every 2 hours

Temperature control mechanism

Digital temperature control

Size (l x w x h)

50cm x 47cm x 23.5cm

Weight (kg)

5.5

Power source

Dual power input: AC/DC (solar) power supply

Power rating (W)

80

Voltage rating (V)

110V-120V at 60HZ or 220V-240V at 50HZ

Control interface (Yes/No)

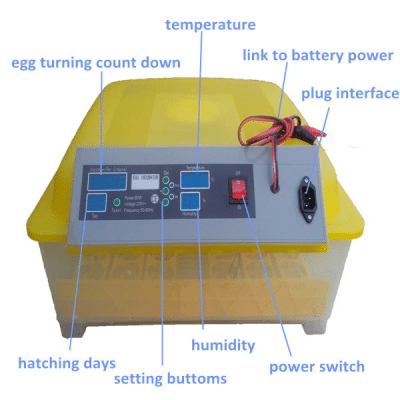

Yes. It has an LED display control interface.

Design Specifications

Design specifications:

  • Digital temperature control
  • LED display showing temp, humidity and egg turning time.
  • Temperature and humidity alarms
  • 4 large observation windows to allow monitoring without having to open the incubator.
  • Has an automatic turning system
  • Has a temperature adjustment range between 30oC to 42oC

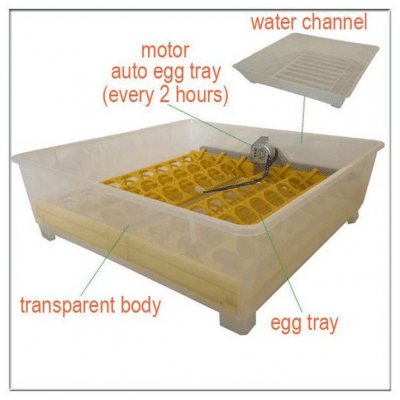

  • The bottom of the unit has inbuilt water channels to allow easy control of humidity levels.
  • Made from a durable and easy to clean material to prevent bacteria.

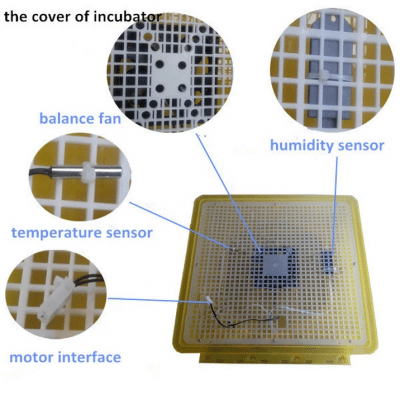

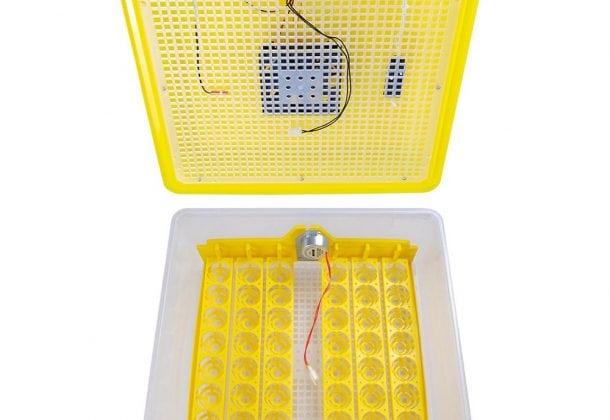

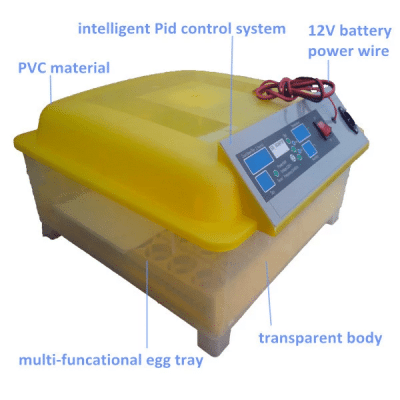

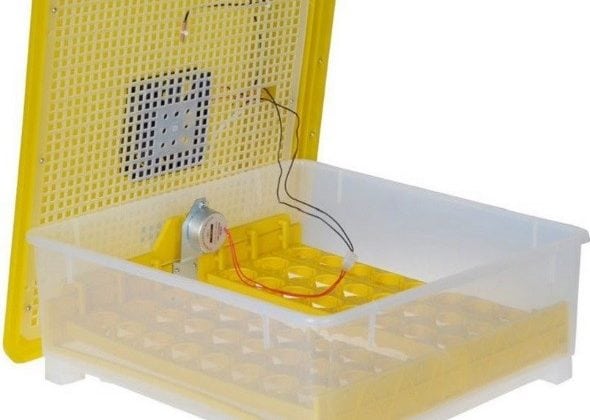

Product Schematics

Technical Support

Technical support provided by Engokho Kuku Farmer

Replacement Components

Replacement components are available from Engokho Kuku Farmer. Interview with representative

Lifecycle

8 years. Interview with representative

Manufacturer Specified Performance Parameters

Specified performance targets

  • Easy to clean

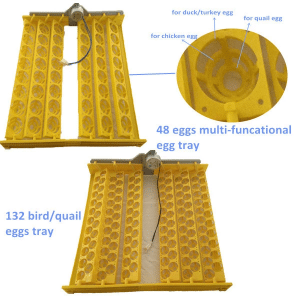

  • Suitable for incubating all poultry: chicken, duck, goose and turkey eggs.
  • Simple to use with set-up and operation instructions provided.

Vetted Performance Status

Unknown

Safety

No specified safety precautions.

Complementary Technical Systems

Engokho Kuku farmer offers a wide range of chicken farming equipment to small scale farmers.

Academic Research and References

None found

Compliance with regulations

ISO9001: CE SGS certificate
