Oxfam-DelAgua Single Incubator Kit

Oxfam-DelAgua Single Incubator Kit is a portable water testing kit that includes six water quality tests.

Tested By
  • care international
  • ChangeALife Uganda
  • Duke University
  • Sana’a University, School of the Environment
Content Partners
Unknown

Author

Product Description

DelAgua Single Incubator is a portable water testing system designed for testing fecal coliform, turbidity, free and total chlorine, pH, and temperature. A total of 200 tests can be performed with one kit. It was designed by Barry Lloyd, from the University of Surrey in collaboration with Oxfam. This product is specially used in places where there are no laboratory facilities.

Target SDGs

SDG 6: Clean Water and Sanitation

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$1,750.00

Target Users (Target Impact Group)

Household, Small and Medium-sized Enterprises, Public Sector Agencies

Distributors / Implementing Organizations

This product is been implemented by several global NGOs and offered by several retailers worldwide.

Competitive Landscape

Manufacturing/Building Method

This product is manufactured in Europe, assembled and quality controlled in the UK. Interview with representative

Intellectural Property Type

Select Type

User Provision Model

This product can be purchased directly from DelAgua or depending on customer location, from an in-country distributor. DelAgua offers supported pricing for charities. Interview with representative

Distributions to Date Status

As of 2020, 60,000+ have been distributed in over 150 countries.

Test types included

Thermotolerant (fecal) coliform count (E. coli), turbidity test, free and total chlorine, temperature, and pH

Equipment included

Incubator, sampling equipment

Tests per kit

200 tests per kit

Detection range

Unknown

Processing time for one sample (hr)

Unknown

Additional materials required

Safety equipment

Power required (yes/no)

Yes

Complete kit weight (kg)

10 kg

Design Specifications

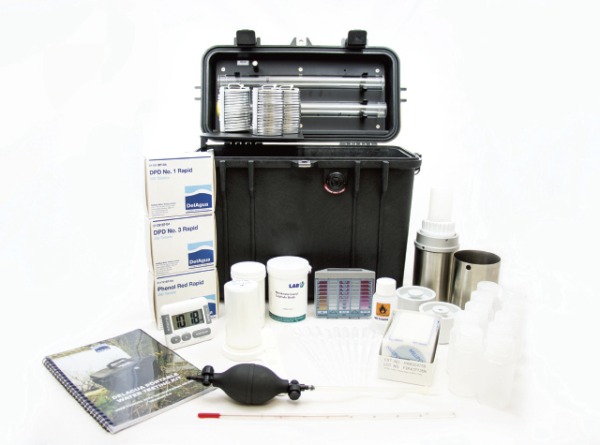

The 10 kg portable Oxfam-DelAgua Single Incubator Water Testing Kit is designed to carry out six (6) basic tests to measure the quality of drinking water – microbiological quality, turbidity, free chlorine, total chlorine, pH, and temperature. The system achieves 44°C in the incubator chamber for analysis of fecal coliforms. It is powered by an internal battery, sealed within the case housing, which can be recharged from mains or a car battery. The kit is capable of up to 5 incubation cycles between recharges making it completely independent for a full week of off-site surveying. The kit also includes several other components which can be found here. Dimensions for the kit is 34.4 x 14.6 x 29.7cm.

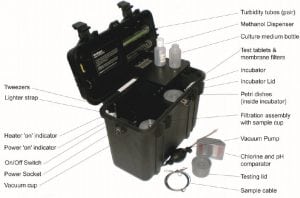

Product Schematics

Technical Support

DelAgua offers free training for anyone who purchases a DelAgua Kit. This is possible at their offices in Marlborough, Wiltshire. Interview with representative or via online videos.

Replacement Components

Replacement components are available from DelAgua, including a wide range of accessories and upgrades to increase the scope of customer water quality monitoring. Interview with representative

Lifecycle

10-15 years, but some have been known to work for more than 20 years. Interview with representative

Manufacturer Specified Performance Parameters

This kit was designed to carry out six basic tests to accurately measure the quality of drinking water – microbiological quality, turbidity, free chlorine, total chlorine, pH, and temperature which permit both assessments of the safety of drinking water and monitors the efficiency of water treatment and purification processes. Results can be obtained on-site within 16 to 18 hours for Thermotolerant (fecal) Coliform.

Vetted Performance Status

The manufacturer vets the effectiveness and usefulness of Oxfam -Deluga Kit through the personal feedback of its customers around the world. DelAgua cites 8 Case Studies of on-field experiences with the Kit.

Safety

Unknown

Complementary Technical Systems

A pressure cooker, portable sterilizer or access to an autoclave, methanol (approx 1ml per test), distilled water, 1L measuring cylinder or beaker, and clean cloths.

Academic Research and References

Adegbite, A.A., 2015, Comparative assessment of field methods for microbiological water quality testing emergencies.

Healing, T., Laboratories in emergencies.

Cavill, S., Technical inquiry practical experiences with field water quality.

DelAgua also cites a list of research and case studies on the use of this product.

“Our Customers – DelAgua,” DelAgua -, 19-Mar-2021. Available: https://www.delagua.org/who-we-serve/

“Distributors Map – DelAgua,” DelAgua -, 10-Feb-2021. Available: https://www.delagua.org/distributors-map/

Goal 6. (n.d.). Sdgs.un.org. Available: https://sdgs.un.org/goals/goal6

“DelAgua Single Incubator,” DelAgua -, 29-Apr-2021. Available: https://www.delagua.org/product/delagua-single-incubator/

“What we do – DelAgua,” DelAgua -, 06-Jan-2021. Available: https://www.delagua.org/what-we-do/

“Learning – DelAgua,” DelAgua -, 06-Jan-2021. Available: https://www.delagua.org/learning/#library-anchor

“The DelAgua kit components 1 DELAGUA PORTABLE WATER TESTING KIT,” Delagua.org. Available: https://www.delagua.org/wp-content/uploads/2021/04/DelAgua-Manual-Revised-2020-V1.pdf

Compliance with regulations

While there are no applicable standards identified relative to this test kit. The kit delivers test results aligned to the requirements of the WHO Guidelines for drinking-water quality – 4th ed

Evaluation methods

Field trials

Other Information

Tutorial videos on how to use the kit.



Video on history of Delagua test kit.
