Katadyn Drip

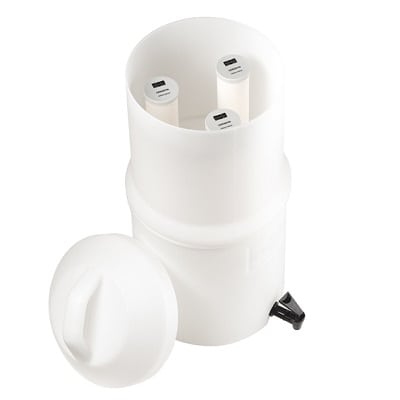

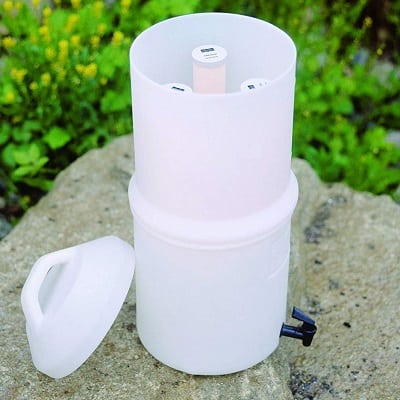

The Katadyn Drip Filter is a tabletop ceramic filter containing three filter candles in an upper 10 L bucket for dirty water and a lower 10 L bucket for dispensing filtered water.

Developed By
  1. Katadyn Group
Tested By
  • bachema Analytische Laboratorien
  • London School of Hygiene & Tropical Medicine (LSHTM)
  • Switzerland Spectrum Labs Inc.
Content Partners
Unknown

Author

Product Description

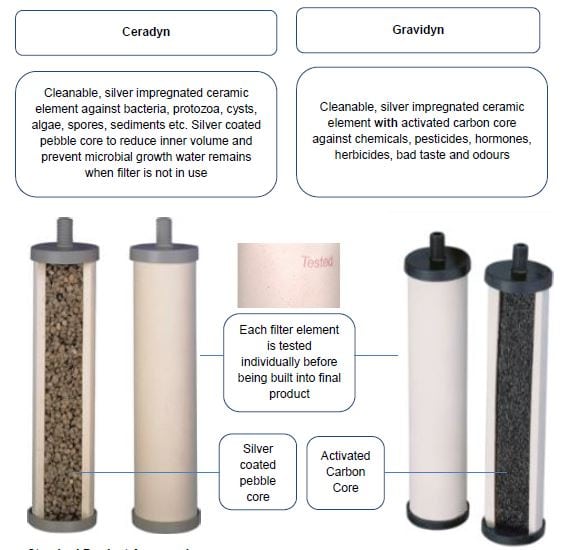

The Katadyn Drip is a tabletop ceramic filter containing three filter candles in an upper 10L bucket for dirty water and a lower 10L bucket for dispensing filtered water. It comes with either Ceradyn silver-impregnated ceramic filter candles or Gravidyn, which also contains activated carbon for chemicals removal.

Target SDGs

SDG 6: Clean Water and Sanitation

SDG 2: Zero Hunger

Market Suggested Retail Price

$318.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Katadyn sells directly to consumers and has also partnered with the Mexican government, World Hope, and the Rotary Foundation for distributions of its filters.

Competitive Landscape

Manufacturing/Building Method

Silicon, food-safe buckets can be bought from the manufacturer and produced in Switzerland or sourced locally for cheaper. Taps and maintenance kits can also be purchased separately from the manufacturer.

Intellectural Property Type

Trademark

User Provision Model

Users can purchase the filter online from Katadyn, other online retailers, or from distributions by international relief organizations.

Distributions to Date Status

Katadyn filters are distributed to families participating in the Mexican government’s project “Sin Hambre,” which is run by the Ministry for Social Affairs. Since the project started, Katadyn has delivered over 60,000 filters to Mexico. Other distributions include the countries of Thailand, Bolivia, and Puerto Rico.

Type of filter

Ceramic candle filter

Primary material of construction

ceramic, colloidal silver, optional activated carbon

Additives

None

Manufacturer-specified flow rate (L/hr)

4 liters/hour

Bacteria reduction

6 log

Virus reduction

Manufacturer claims the Ceradyn version eliminates viruses greater than 0.2 microns in diameter. However reduction value is unknown.

Protozoa reduction

Manufacturer claims the Ceradyn version eliminates  protozoa, and cysts, greater than 0.2 microns in diameter. However reduction value is unknown.

Heavy metals and/or arsenic reduction

Unknown

Maximum recommended influent turbidity level (NTU)

0-100

Effluent turbidity levels (NTU)

Unknown

Maintenance schedule

Scrub filter element with included cleaning pad when flow is reduced

Manufacturer-specified lifetime volume (L)

150,000 liters

Safe water storage integration

10 liters

Design Specifications

The Katadyn Drip weighs 3.3 kg and is 45 by 25 cm. It is a gravity household water filter for 1 to 6 people, with 4 liters per hour filtration through three ceramic filter candles. It comes in two versions: the Ceradyn and the Gravidyn, where the Gravidyn contains an additional activated carbon element for chemicals and chlorine reduction. The filters are designed to be long-life, low-maintenance, and last 2 to 9 years.

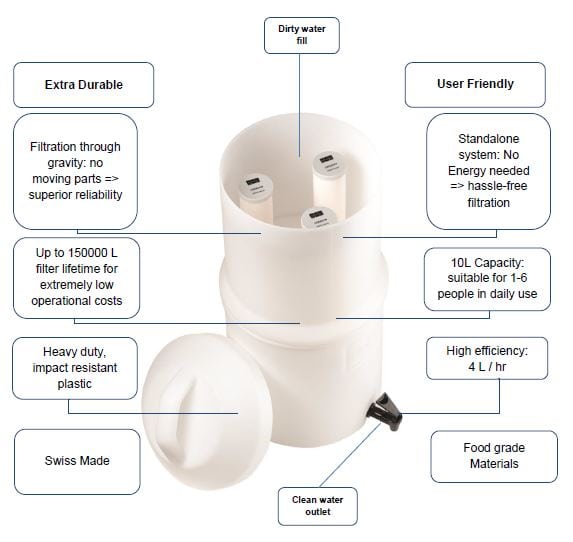

Product Schematics

Technical Support

Technical support is provided in the instruction manual online.

Replacement Components

Filter candles need to be replaced after the end-of-life measuring gauge indicates that the filter is too small and water flow has diminished. Replacement Ceradyn and Gravidyn filter candles are available for purchase online.

Lifecycle

The Ceradyn filter cartridge capacity is 50,000 liters per filter, so for the Katadyn Drip, which contains three filter candles, the lifetime capacity is 150,000 liters. For a family consuming 15 L of drinking water per day the expected lifetime of the Ceradyn filters candles are 9 years with low turbidity or 2 years with high turbidity. The full Katadyn Drip system comes with a 2-year warranty.

Manufacturer Specified Performance Parameters

The Ceradyn version eliminates bacteria, protozoa, cysts, algae, spores, sediments and viruses in combination with particles greater than 0.2 microns. The Gravidyn version also reduces chemicals.

Vetted Performance Status

A randomized controlled field trial found that Katadyn Drip ceramic filters were effective at improving the microbiological quality of drinking water in a low-income community in rural Bolivia in 2004. Independent labs Bachema and Spectrum also confirmed the bacteriological reduction of the Ceradyn and Gravidyn filters in a controlled setting.

Safety

To prevent contamination of the filtered water, the instruction manual recommends: letting filter elements dry completely in the air if the filter is not going to be used for longer than two days, cleaning the filter system (container and filter elements) at least once a month, keeping it out of direct sunlight,

Complementary Technical Systems

None

Academic Research and References

Safe household water treatment and storage using ceramic drip filters: a randomized controlled trial in Bolivia
Clasen T, Brown J, Suntura O, Collin S; (2004) Water Sci Technology

“Katadyn Group,” Katadyngroup.com. Available: https://www.katadyngroup.com/int/en

CAWST, “Project: Sin Hambre Project, Mexico, Drip Ceradyn Filter,” Project: Sin Hambre Project, Mexico, Drip Ceradyn Filter | Household Water Treatment and Safe Storage Knowledge Base. Available: https://www.hwts.info/projects/6bd60466/sin-hambre-project-mexico-drip-ceradyn-filter

CAWST, “Project: Rotary Club of Switzerland, Thailand, Drip Ceradyn Filter,” Project: Rotary Club of Switzerland, Thailand. Household Water Treatment and Safe Storage Knowledge Base. Available: https://www.hwts.info/projects/8d778220/rotary-club-of-switzerland-thailand-drip-ceradyn-filter

Goal 6. (n.d.). Sdgs.Un.Org. available: https://sdgs.un.org/goals/goal6

CAWST, “Manufacturer Sheet: The Katadyn Drip Filters. Gravity Water Filtration Units,” . Gravity Water Filtration Units. Household Water Treatment and Safe Storage Knowledge Base. Available: https://www.hwts.info/document/f8b48620/the-katadyn-drip-filters-gravity-water-filtration-units

CAWST, “Katadyn Drip Filter,” Katadyn Drip Filter. Available: https://www.hwts.info/products-technologies/e3cb323b/katadyn-drip-filter/technical-information

CAWST, “undefined: Reduction Test Katadyn Drip FIlter Ceradyn,” undefined: Reduction Test Katadyn Drip FIlter Ceradyn . Available: https://www.hwts.info/document/9223ad62/reduction-test-katadyn-drip-filter-ceradyn

Compliance with regulations

The Katadyn Drip filters meet the USEPA Guide Standard and Protocol for Testing Microbiological Water Purifiers for 6 log bacteria and 4 log cyst removal.

Evaluation methods

Laboratory water quality testing under batch conditions and field evaluations in Bolivia.

Other Information

No backflushing needed.

Leave a Reply

Explore similar solutions

Agriculture

January 2, 2024

Katadyn Survivor 06

Read Solution

Implemented by

Katadyn Group

Agriculture

January 19, 2024

Drip Kit with Solar Pump

Read Solution

Implemented by

Jain Irrigation Systems Ltd.

Agriculture

January 31, 2024

Mnyunyizi Drip Irrigation Kit

Read Solution

Implemented by

Illuminum Greenhouses Kenya

Agriculture

January 19, 2024

EOS International Drip Irrigation

Read Solution

Implemented by

EOS International

Agriculture

February 14, 2024

Netafim Family Drip System

Read Solution

Implemented by

Netafim

Agriculture

January 22, 2024

Proximity Designs Drip Irrigation System

Read Solution

Implemented by

Proximity Designs

Agriculture

January 20, 2024

SunCulture Drip Irrigation Kit

Read Solution

Implemented by

SunCulture

Agriculture

February 22, 2024

Greenhouse Venture Drip Irrigation System

Read Solution

Implemented by

Greenhouse Ventures

Agriculture

February 5, 2024

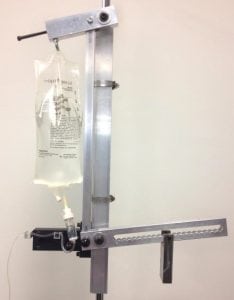

Rice University IV DRIP
