Updated on August 20, 2024

·

Created on August 29, 2018

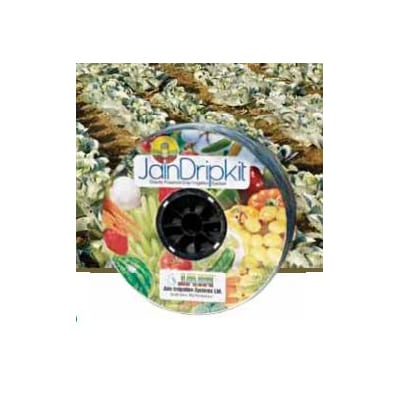

Jain Drip Kit with Solar Pump

Drip Kit, developed by Jain Irrigation Systems Ltd., is a drip irrigation system which uses gravity. It helps crops to maintain the desired amount of moisture.

Tested By
  • Jain Irrigation Systems Ltd.
Content Partners
Unknown

Author

Product Description

Drip Kit is a drip irrigation kit that operates on gravity and does not require electricity. The tubes used are clog resistant and the outlet holes are laser drilled making it precise.

Target SDGs

SDG 6: Clean Water and Sanitation

SDG 2: Zero Hunger

Market Suggested Retail Price

$147.00

Market Suggested Retail Price (Secondary Currency)

10000.00

Target Users (Target Impact Group)

Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Dealers across India like Agrotech Irrigation in Gujarat,  Hindustan Pipe Sales Corporation Delhi, and Agroline Technologies & Industries in Guwahati

Competitive Landscape

Direct competitors include Netakit, Driptech Micro-Irrigation Kit, and iDE Rope Pump.

Manufacturing/Building Method

Mass produced.

Intellectural Property Type

Trademark

User Provision Model

Users can purchase drip kits from dealers.

Distributions to Date Status

Unknown.

Coefficient of distribution uniformity

0.48

Highest limit burst pressure

2 kg/cm2

Maximum run length

700m

Minimum viable operating pressure

1kg/cm2

Design Specifications

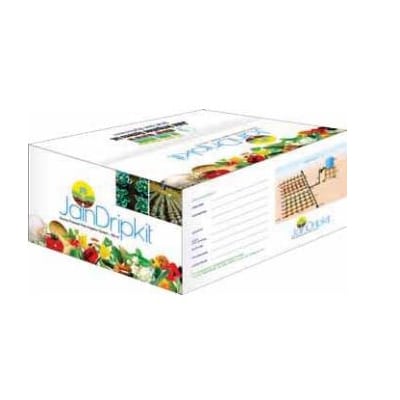

All items are supplied in one box that is easy to carry. It is available in 6 models: 30m², 100m², 250m², 500m², 1000m² & 2000m²

  • Available in 3 types of lnline tubing options:
    1. Thickwall - 12mm J-Turbo Excel® (JTE 1.6 lph, 30 cm spacing & 0.6-0.7 mm thickness)
    2. Thinwall - 16mm Jain Turbo Slim® - TE(JTS-TE 1.6lph, 30 cm spacing & 6 mil (150 micron))
    3. Thinwall - 16mm Chapin Deluxe (0.95 lph, 20cm & 6mil (150 micron))
  • The solar pumps have Brushless DC motors which receive power from solar PV panels. This system is without batteries. Jain solar pumps are available in both surface and submersible types.

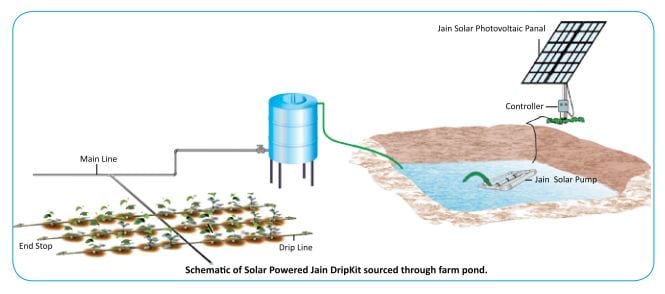

Product Schematics

Technical Support

Drip tapes can be patched and components replaced.

Replacement Components

Available from dealers like Kisanestore.

Lifecycle

Unknown.

Manufacturer Specified Performance Parameters

Performance targets:

  • No electricity required, operates on gravity
  • Easy to install, do it yourself
  • Portable system, can be easily shifted
  • Affordable
  • Portable and easy to carry

Vetted Performance Status

Unknown.

Safety

General guidelines for maximum performance are provided by the manufacturer.

Complementary Technical Systems

Jain Irrigation System provides an option to use solar trackers which increases discharge by approximately 20 to 25%

Academic Research and References

Er. P.D.Narale, Dr. N.S.Rathore, Dr. S.Kothari, 2013, Study of Solar PV Water Pumping System for Irrigation of Horticulture Crops

Dr. J. S. Pachpute, S. T. Pachpute, and Sane G. G., 2017, Low-cost Drip Irrigation Kits for Sustainable Rainfed Agriculture

Sachin S Patil, P T Nimbalkar, Abhijit Joshi, 2014, Hydraulic Study, Design & Analysis of Different Geometries of Drip Irrigation Emitter Labyrinth
