mWater Field Test Kit

mWater Field Test Kit is a water testing kit designed to detect E.coli, coliform bacteria, nitrate/nitrite, and chlorine residual.

Developed By
  1. mWater
Tested By
  • WaterAid
Content Partners
Unknown

Author

Product Description

mWater Test Kit is a single-use water quality test kit designed to detect E. coli, coliform bacteria, nitrate/nitrite, and chlorine residual without the need for a power supply. The kit is manufactured and distributed by mWater. It is designed for community health workers, NGO’s, and people who do not have access to laboratories or incubators.

Target SDGs

SDG 6: Clean Water and Sanitation

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$200.00

Target Users (Target Impact Group)

Public Sector Agencies, NGOs

Distributors / Implementing Organizations

This product has been implemented by several humanitarian organizations like USAID DIV, The World Bank Innovation Fund, Water.org, WaterAid International, WaterAid Australia, Millennium Water Alliance, The Water Trust, charity: water, The Water Project, Riverkeeper, Earth Echo, Safe Water Network, UNC Water Institute, Ugandan Water Project, Water4.org, Drink Local Drink Tap, Wine to Water, Haiti Outreach, UNICEF, WHO, Water4, MSF, GAIN, and UN-HABITAT.

Competitive Landscape

Manufacturing/Building Method

Unknown

Intellectural Property Type

Trade Secret

User Provision Model

This product is available for purchase from mWater and also through partner humanitarian organizations .

Distributions to Date Status

As of 2020, this product had over +40,000 active users (including NGOs, government, and researchers).

Test types included

E. coli, coliform bacteria, nitrate/nitrite, chlorine residual

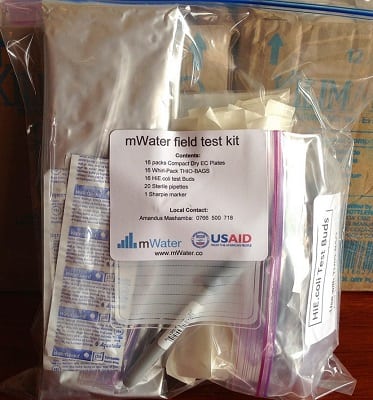

Equipment included

Bags, petri dishes, color comparison charts

Tests per kit

20 tests per kit

Detection range

Nitrate: 0 – 50 ppm; nitrite 0 – 10 ppm; chlorine residual 0 – 5 ppm; E. coli: absent or present

Processing time for one sample (hr)

24 hours for E.Coli and Total Coliform

60 seconds for Nitrate and Nitrite

25 seconds for residual Chlorine

Additional materials required

Safety equipment

Power required (yes/no)

No

Complete kit weight (kg)

Unknown

Design Specifications

mWater test kits are simple and portable water testing kits utilized for testing a variety of water parameters such as E. coli 1 mL and 100 mL, coliform bacteria, nitrate/nitrite, and residual chlorine. The tests are designed to be easily used and operated, without the need for a full-fledged laboratory and just at room temperature. All the materials in the test kit are pre-sterilized and are discarded after one-time use. Overall the Kit contains a whirl pak- standup bag with a HiMedia Ecoli reagent, Nissui compact dry EC plate with a gel reagent, and ITS waterworks test strips. For the bacterial confirmation test, users can either use the stand-up bag or the dry EC plate to detect the presence or absence of E.Coli. Similarly, ITS waterworks test strips are used for detection of Nitrate up to (0-50 mg/L), Nitrite up to (0-10 mg/L), and residual chlorine up to (0-5 mg/L). The results are calculated within a few seconds for Nitrate, Nitrite, and residual chlorine i.e. after 60 and 25 seconds. Whereas for the bacterial tests, results are obtained after 24 hours. Detailed instructions are available on the company’s website.

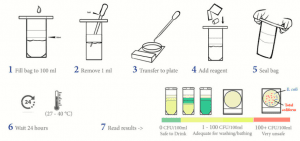

Product Schematics

Technical Support

Manual and guides are provided by the manufacturer.

Replacement Components

None

Lifecycle

Single-use product (disposal guidance unknown)

Manufacturer Specified Performance Parameters

This water test kit was designed to be used without the need for any laboratory or extra equipment like an incubator. Moreover, it was designed in a way that anyone without prior knowledge of water testing could also use it.

Vetted Performance Status

Since 2014, mWater services have been used by WaterAid, with more than 1,700 users and an increasing number of partners adopting it independently. Some examples of mWater’s use through WaterAid programs are Rwanda school baseline, Mozambique Post Implementation Monitoring Surveys, and Bugesera district water services monitoring.

Safety

Unknown

Complementary Technical Systems

Users can use the mWater mobile app as a complementary system for this product to map water sources.

Academic Research and References

“ABOUT —,” mWater. Available: https://www.mwater.co/about

Goal 6. (n.d.). Sdgs.un.org. Available: https://sdgs.un.org/goals/goal6

“mWater Portal,” Mwater.co. Available: https://portal.mwater.co/#/

“mWater Portal,” Mwater.co. Available: https://portal.mwater.co/#/dashboards/b5a55724ff12466f82c0572d3cdc3103

“How can online data platforms improve management of water, sanitation and hygiene services? WaterAid’s experience using mWater,” Wateraid.org. Available: https://washmatters.wateraid.org/blog/how-can-online-data-platforms-improve-management-of-water-sanitation-and-hygiene-services

“mWater Portal,” Mwater.co. Available: https://portal.mwater.co/#/consoles/2261470928e64cbfb0148594cbe8c089?share=a60f1ebd316947d89634e311c0a9402e&tab=8a506919-72a9-40a8-a23b-dc5b1889def2

“mWater Portal,” Mwater.co. Available: https://portal.mwater.co/#/dashboards/b73c78b7c73348f7aa999d82381f918f?share=2cba6680a67a4c22a895e3da643d4401

“mWater Portal,” Mwater.co. Available: https://portal.mwater.co/#/dashboards/14a4605e9a4d4bbfbd3d805bf48c0cd5?share=a065731916f14cd1a04717d21b59e908

“mWater Surveyor App,” Engineering For Change, 27-Aug-2015. Available: https://www.engineeringforchange.org/solutions/product/mwater-explorer-mobile-app/

“Guidelines for drinking-water quality: Fourth edition incorporating the first and second addenda,” Who.int, 21-Mar-2022. Available: https://www.who.int/publications/i/item/9789240045064

Compliance with regulations

The kit’s testing levels comply with World Health Organization guidelines for safe drinking water.

Evaluation methods

User testing with surveys.

Other Information

Leave a Reply

Explore similar solutions

Agriculture

January 17, 2024

Compartment Bag Test (CBT) Kit

Read Solution

Implemented by

Aquagenx

Agriculture

January 17, 2024

Hach Drinking Water Test Kit

Read Solution

Implemented by

HACH

Agriculture

January 24, 2024

NTU Singapore Water Test

Read Solution

Implemented by

Nanyang Technological University (NTU) Singapore

Agriculture

March 18, 2024

mWater Surveyor App

Read Solution

Implemented by

mWater

Agriculture

January 18, 2024

Oxfam-DelAgua Single Incubator Kit

Read Solution

Implemented by

Barry Lloyd, University of Surrey

Agriculture

January 27, 2024

Palintest Pooltester Kit

Read Solution

Implemented by

Palinter

Agriculture

January 11, 2024

British Berkefeld Household Filter Kit

Read Solution

Implemented by

Doulton

Agriculture

January 30, 2024

Isla Urbana Chaac Kit

Read Solution

Implemented by

IslaUrbana

Agriculture

February 27, 2024

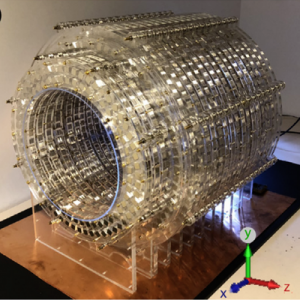

Low Field MRI Scanner
