Philips Fan Stove HD4012

Upcoming Update

The Philips Fan Stove has an internal fan and a rechargeable battery that produces a flame using very little fuel.

Developed By
  1. Philips
Tested By
  • Advanced Clean Cooking Solutions (ACCS)
  • U.S. Environmental Protection Agency
Content Partners
  1. Global Alliance for Clean Cookstoves

Author

Product Description

Philips Fan Stove (Model HD4012) burns pellets made of sawdust, peanut shells and other agricultural waste and biomass. It features an inbuilt fan and a rechargeable battery that forces air into the top and bottom of the combustion chamber, leaving a smoke-free wood-fire within very little fuel used.

As of 2018, this stove model is discontinued.



Target SDGs

SDG 7: Affordable and Clean Energy

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$89.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Several: Emerging Cooking Solutions, Copperbelt Energy Corporation, First Quantum Minerals, Sandvik, and SKF.

Manufacturing/Building Method

The stove was designed by Paul van der Sluis, a researcher at Philips Research Laboratories in Eindhoven. The example was manufactured by Philips in Lesotho, used for a while in Zambia and then shipped to Lund Sweden for evaluation. Philips Fan Stoves were afterwards mass produced by African Clean Energy in Lesotho since 2011 and by Emerging Cooking Solutions also in Lesotho.

Intellectural Property Type

Trademark

User Provision Model

Emerging Cooking Solutions produces the stoves and sells them to distributors such as Copperbelt Energy Corporation, First Quantum Minerals, Sandvik, and SKF.

Distributions to Date Status

The exact number of distribution to date is unknown, however, and for 2013 over 15,000 stoves were sold.

Fuel type

Biomass

Pot type

Both

Thermal efficiency (%)

38.4-39.4

PM emissions (g/MJ delivered to pot)

62.3-147.3

CO emissions (g/MJ delivered to pot)

0.98-2.71

Time to boil (min/L)

17.2-18.1

Design Specifications

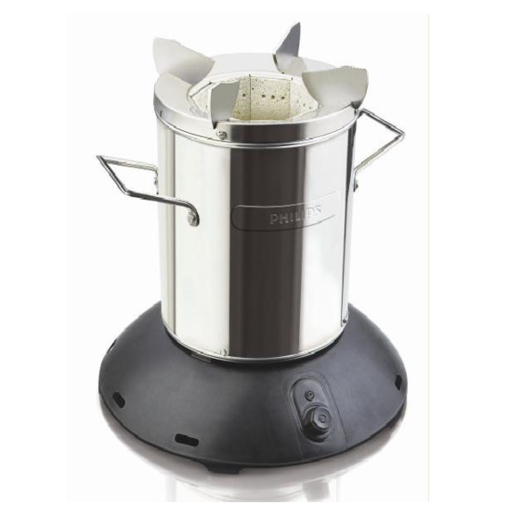

Design specifications include the stainless-steel body with a ceramic-inner combustion chamber. At the bottom of the combustion chamber, there is a knob, an inbuilt fan and a battery that is charged either from the grid (when available) or using a solar charger. It weighs 4.6 kgs and its dimensions (LxWxH) in cms are: 33 x 35 x 33.

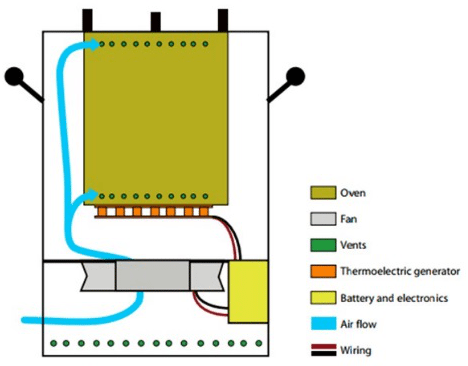

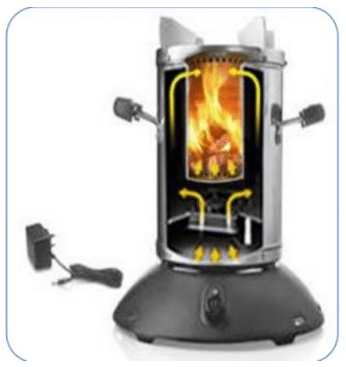

Product Schematics

Technical Support

Philips has product support representatives on every continent except Australia and Antarctica. For further support, contact Emerging Cooking  Solutions.

Replacement Components

Unknown.

Lifecycle

The stove has a 1-year warranty and expected lifecycle is 5 years.

Manufacturer Specified Performance Parameters

This stove meets the energy needs of off-grid families within a cost-efficient, sustainable and market-driven solution. Due to its integrated fan and battery, it utilises minimal wood chips (fuel) and the flame can be controlled by the user. Further key features can be seen on Energcare's website.

Vetted Performance Status

The testing results for the stove are summarized in the Clean Cooking Catalog.

Safety

Keep all flammable items away from the surrounding area of the stove, and do not enclose the area you are cooking within; proper ventilation is always required. Do not touch the body of the stove while in use.

Complementary Technical Systems

None.

Academic Research and References

MacCarty, N., et al (2008). A laboratory comparison of the global warming impact of five major types of biomass cooking stoves. Energy for Sustainable Development. Volume II.No 2.

Jetter, J., Kariher, P (2009). Solid-fuel household cookstoves: Characterization of performance and emissions. Biomass and Bioenergy. Volume 33, Issue 2, February 2009, Pages 294-305.

Pillarisetti, A., et al. (2014) Patterns of Stove Usage after Introduction of an Advanced Cookstove: The Long-Term Application of Household Sensors. Environ. Sci. Technol. 2014, 48 (24), pp 14525–14533. DOI: 10.1021/es504624c.

D.Loo, J., et al (2015). User Perspectives of Characteristics of Improved Cookstoves from a Field Evaluation in Western Kenya. Int. J. Environ. Res. Public Health 2016, 13(2), 167.

Further academic research here.

Emerging Cooking Solutions. n.d. Emerging.se.

The Copperbelt Energy Corporation Plc (CEC). n.d. Copperbelt Energy Corporation Plc.

First Quantum Minerals. n.d. first-quantum.com

Sandvik Group — Home. n.d. Sandvik.

SKF Group. n.d. skf.com

African Clean Energy. n.d. africancleanenergy.com

Roth, Christa, Paul Anderson, Hugh McLaughlin, Thayer Thomlinson, and Kelpie Wilson. 2014. Micro-Gasification: Cooking with Gas from Dry Biomass. Edited by Heike Volkmer. www.bmw.de. Eschborn, Germany : Deutsche Gesellschaft für Internationale Zusammenarbeit (GIZ) GmbH.

Philips High Efficiency Cook Stove | EnerGcare. n.d. EnerGcare.

Clean Cooking Alliance – Clean Cooking Catalog: Results Report – Philips HD4012. n.d. www.catalag.cleancookstoves.org. Global Alliance for Clean Cookstoves.

Global Alliance for Clean Cookstoves . 2014. The Water Boiling Test (Version 4.2.3): Cookstoves Emissions and Efficiency in a Controlled Laboratory Setting. www.1library.net. Global Alliance for Clean Cookstoves.

International Standards Organization (ISO). n.d. ISO’s International Workshop Agreements.

Global Alliance for Clean Cookstoves. 2013. Interim Reporting Requirements for IWA Tiers of Performance. cleancooking.org. Global Alliance for Clean Cookstoves.

Bailis, Rob. 2004. Controlled Cooking Test (CCT). www.cleancooking.org. Clean Cooking Alliance, Shell Foundation.

Compliance with regulations

Testers rated the performance of this stove according to tier rankings established by the International Organization for Standardization (ISO)’s International Workshop Agreement (IWA). The testers rated this stove on emissions, indoor emissions and efficiency, along with efficiency, energy consumption and fuel use. It was not tested in safety.

Evaluation methods

US EPA: Pollutant Emissions and Energy Efficiency under Controlled Conditions for Household Biomass Cookstoves and Implications for Metrics Useful in Setting International Test Standards Water Boiling Test (WBT) Controlled Cooking Test (CCT).

Other Information

Philips has been recognized for its efforts to promote sustainability.
