SCODE SP-FL Portable

Upcoming Update

The SCODE SP-FL Portable is a micro gasifier cookstove that uses an integrated low power fan to obtain a smokeless combustion process.

Tested By
  • African Centre for Technology Studies (ACTS)
Content Partners
Unknown

Author

Product Description

The SCODE SP-FL Portable is a front loading micro gasifier stove developed by Sustainable Community Development Services (SCODE). The stove uses a low power fan to burn any kind of biomass smokelessly.

Target SDGs

SDG 7: Affordable and Clean Energy

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$65.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Sustainable Community Development Services (SCODE).

Competitive Landscape

Manufacturing/Building Method

The SCODE SP-FL Portable is mass produced with SCODE´s input and is manufactured in regard to specifications provided by the Kenyan Bureau of Standards. SCODE’s warehouse in Nakuru fabricates the metal casing for the stoves whilst the ceramic components are sourced from Muranga. Per month the warehouse has a production capacity of 600 cookstoves.

Intellectural Property Type

Trademark

User Provision Model

Users can obtain the product directly from the manufacturers or through retailers, commision and awareness agents.

Distributions to Date Status

Exact number unknown. However, SCODE has distributed more than 50,000 cookstoves since 2013 between their different models.

Fuel type

Charcoal, crop residues, wood

Pot type

Flat bottom and round bottom

Thermal efficiency (%)

30.366

PM emissions (g/MJ delivered to pot)

Unknown

CO emissions (g/MJ delivered to pot)

Unknown

Time to boil (min/L)

Cold start: 23.0
Hot start: 11.67

Design Specifications

The SCODE SP-Fl Portable is a side feed forced draft micro gasifier cookstove and it's design is composed of a Whytheat K refractory cement combustion chamber and a 32 cfm low power fan with a regulator. The cookstove uses gauge 18 MS metal sheets for its housing. Specifications: Maximum Pot Capacity: 40 L

Product Schematics

Technical Support

Provided by SCODE or local trained builders.

Replacement Components

May be provided by the manufacturers.

Lifecycle

5 years.

Manufacturer Specified Performance Parameters

Manufacturers specify multiple fuel usage, low consuming fan, savings up to 50% of fuelwood, reduction by 60% of smoke emmissions, easy to light, faster cooking than normal stoves and less ash production as their performance targets.

Vetted Performance Status

Unavailable.

Safety

The safety concerns associated with the usage of wood-burning cookstoves are primarily related with carbon dioxide, carbon monoxide and sulfur dioxide emissions. Another significant safety concern is domestic accidents such as accidental burning or spill-overs.

Complementary Technical Systems

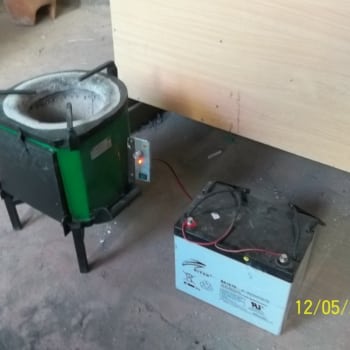

Due to the fact that the SCODE SP-FL requires a low power fan to assist with the combustion, an external power source is required. A solar panel or any other source of electricity can be installed to power the fan.

Academic Research and References

(2017). Advanced Biomass Cookstove Distribution. USAID & Winrock International

Johnson, O., Wanjiry, H., Muhoza, C., Lambe, F., Jürisoo, M., Amatayakul, W., & Chanevoy, A. (2015) From Theory to Practice of Change: Lessons from SNV’s Improved Cookstoves and Fuel Projects in Cambodia, Kenya, Nepal and Rwanda. Stockholm Environment Institute.

Kenya Bureau of Standards (KEBS). n.d. www.kebs.org.

Availing a Variety of Energy Services to Counties – Kenya Climate Innovation Center (KCIC). KCIC. May 19, 2017.

Scode | Improved Cooking Stoves. n.d. scode.co.ke.

Global Alliance for Clean Cookstoves. 2013. Interim Reporting Requirements for IWA Tiers of Performance. cleancooking.org. Global Alliance for Clean Cookstoves.

Global Alliance for Clean Cookstoves . 2014. The Water Boiling Test (Version 4.2.3): Cookstoves Emissions and Efficiency in a Controlled Laboratory Setting. www.1library.net. Global Alliance for Clean Cookstoves.

Clean Cooking Alliance – Clean Cooking Catalog: Results Report – SCODE SP-FL micro gasifier portable. n.d. www.catalag.cleancookstoves.org. Global Alliance for Clean Cookstoves.

International Standards Organization (ISO). n.d. Home. iso.org. ISO.

Compliance with regulations

Complies with the following cookstoves rating for the International Workshop Agreements as a streamlined process of the International Organization for Standarization (ISO) Tier 1 for efficiency.

Evaluation methods

Water Boiling Test Version 4.2.3.

Other Information

SCODE has two key programmes: Renewable energy technologies programme; and Sustainable Land Use Management. Apart from their work in cookstoves production they also promote the implementation of Biogas/Bio-latrines and solar (PV and Thermal) energy.
