S House 3
VTN Vo Trong Nghia Architects
S House 3 is a prefabricated house designed to be transported and assembled on-site by the user.
S House 3 is the third prototype house for low-income communities designed by Vo Trong Nghia Architects. It was conceived as a quickly built home in response to housing shortages resulting from natural disasters. The design integrates solutions such as natural lighting and ventilation within a modular precast structure.
Mekong Delta, Vietnam
Low-income families in the Mekong Delta area
Indication of whether design can be replicated in multiple locations
Number of individuals. 1 family = 5 persons.
Number of days from start of construction to completion
Surface area of footprint
Number of occupiable floors (ground floor only = 1)
Primary materials used
Composite estimated R-value
As calculated by designer
As calculated by designer
Based upon primary structural system as per the International Building Code
Based upon Structural Occupancy Category and soil conditions of site; as per the International Building Code
List of suitable climates for use of this design

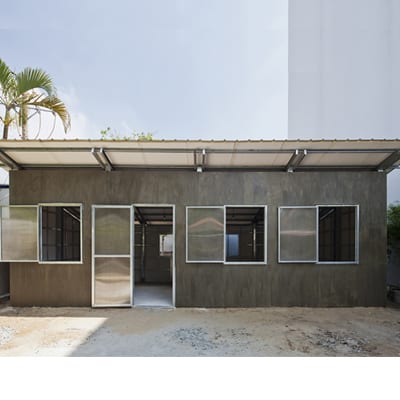

S House 3 is a 31.6 m² house that can be assembled in one day and it was designed to be transported by small boats to all Vietnam regions. Although the original project had only a single room, it was designed considering the possibility of dividing in multiple rooms according to the needs of the residents. The main structure is made from lightweight steel (1200 kg) and the walls are made of Slender steel lattice that support and rigidify the frames. The pedestal is incorporated with a concrete foundation. All components were designed to be lighter than 60 kg to facilitate transportation and construction. Different materials can be used for cladding and can be replaced by dwellers.
There is no technical support provided and users are expected to maintain the product on their own.
If there is any damage walls and roof can be replaced by the dwellers.
All the components were designed to be lighter than 60kg to allow easy transportation and construction . The manufacturer informs that it takes three hours to assemble the whole steel structure and roof.
Builders should wear appropriate protective equipment such as hardhats, gloves and safety glasses while working to protect against physical injury commonly associated with heavy construction.
Electricity, sanitation and water complementary technical system are required.
This design does not specifically comply with any international or country-specific regulations.
