WOWSOLAR HUB 6400

Upcoming Update

<span style="font-size: 11pt; font-family: Arial; color: #000000; background-color: transparent; font-weight: 400; font-style: normal; font-variant: normal; text-decoration: none

Tested By
  • Cotecna
Content Partners
Unknown

Author

Product Description

The WOWsolar Hub 6400 is a solar generator designed by Amped Innovation. The product provides AC and DC power for televisions, fans and music stereo sets and compressor based appliances like refrigerators. It contains an 800W inverter, a charge controller, four 300 W solar panels and a 640 Whr LiFePo4 battery. It is integrated with PAYGo functionality for users.

Target SDGs

SDG 7: Affordable and Clean Energy

SDG 8: Decent Work and Economic Growth

Market Suggested Retail Price

$530.00

Target Users (Target Impact Group)

Household, Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Unknown

Manufacturing/Building Method

The unit comprises of the cast aluminum base, heatsink and the main structural element. This structural element consists of a steel case, ABS plastic end pieces and is reinforced by a steel plate. This product is currently in the prototyping phase and not yet manufactured at scale.

Intellectural Property Type

Trademark

User Provision Model

Users can obtain the product from distribution partners of Amped Innovation.

Distributions to Date Status

None

Power rating (W or kW)

800 W

System dimensions (m)

0.41 x 0.23 x 0.3 m

Battery type

Lithium iron phosphate batteries

Battery capacity (mAh)

25000 mAh

Description of solar panels

4 Pcs, 300 W Polycrystalline Panel

Grid compatibility (yes/no)

Yes

Description of mobility

Mobile

Design Specifications

Specifications from the manufacturer include:

  • Power Hub
  • Solar cable
  • Branch connector
  • Solar panels

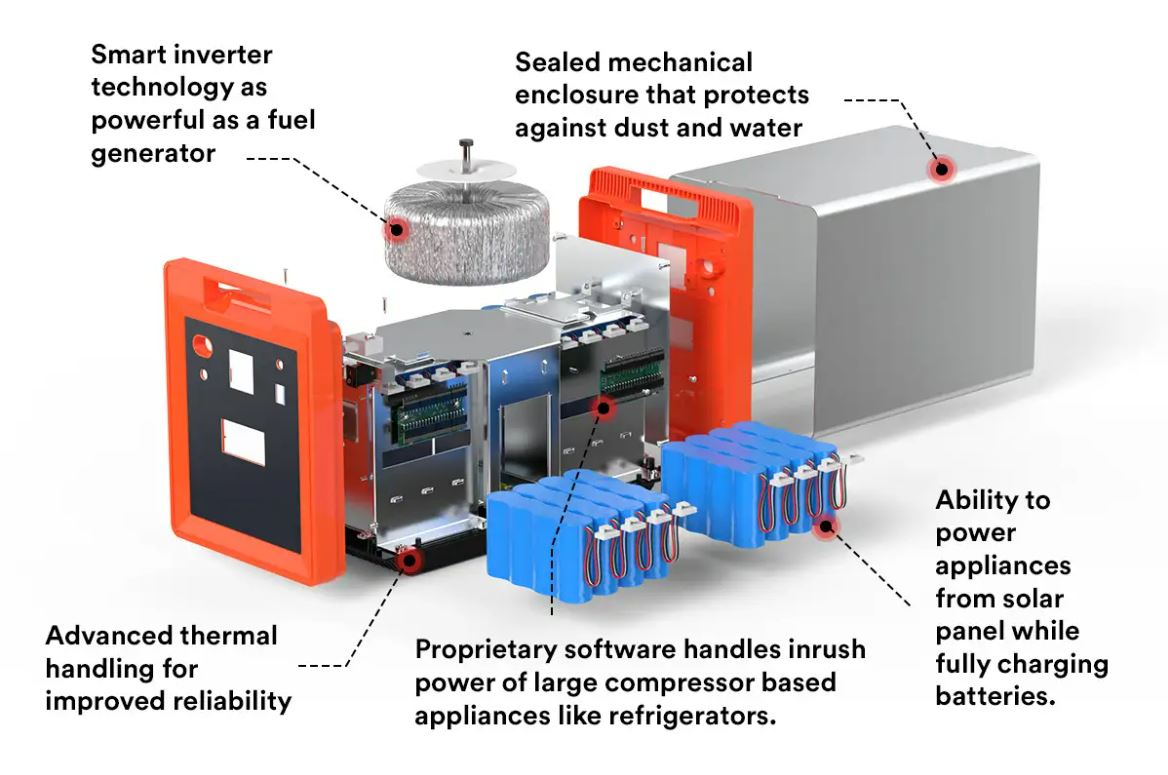

Product Schematics

Technical Support

 Support provided by distribution partners.

Replacement Components

Solar panels can be replaced separately.

Lifecycle

The product includes a 3 year warranty. The estimated lifecycle is 5 years.

Manufacturer Specified Performance Parameters

The manufacturers performance targets include:

  • Continuous operation at full power with 1.2KW PV array as input.
  • Full battery pack charge in 1.5hrs from empty

Vetted Performance Status

 Performance is certified under IEC 62040-1.

Safety

A potential hazard related to the operation of this product is risk of electrical shock. Other hazards may occur if submerged in water, or operated close to a fire or other substantial heat source.

Complementary Technical Systems

 None

Academic Research and References

No academic references.

IEC 62040-1:2017 | IEC Webstore. n.d. webstore.iec.ch.





Compliance with regulations

The product is certified by the International Electrotechnical Commission (IEC 62040-1).

Evaluation methods

The product is evaluated according to IEC 62040-1 standards

Other Information

A promotional video for the WOWSolar 6400 can be accessed with this link. Also the PowerHub has been featured on this article by Cleantechnica.
