Alvan Blanch Groundnut Lifter/Inverter
Read SolutionImplemented by
Alvan Blanch
Updated on September 18, 2024
·Created on October 5, 2020
The Alvan Blanch Thresher is a portable thresher designed to process various grains.

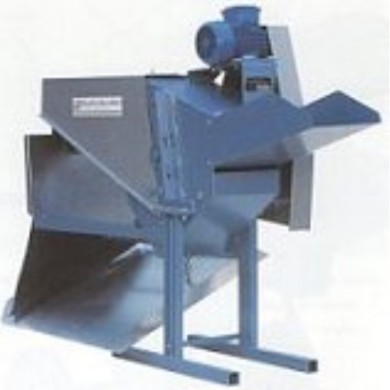

The Alvan Blanch Midget Thresher is a portable thresher designed to process various grains and is adaptable for rice processing. The threshers contain grain collection boxes, plasticized canvass tarpaulin, and a tool kit for operation. The product was designed and is manufactured and distributed by Alvan Blanch.
Target SDGs
SDG 2: Zero Hunger
SDG 9: Industry, Innovation and Infrastructure
Market Suggested Retail Price
$2,152.32
Market Suggested Retail Price (Secondary Currency)
1815 EUR
Target Users (Target Impact Group)
Household, Small and Medium-sized Enterprises
Distributors / Implementing Organizations
This product has been implemented through a network of approved dealers in over 100 countries.
Competitive Landscape
Direct competitors include SAYeTECH Multi-Crop Thresher, Pearl Millet Thresher, Imara Tech Multi-Crop Thresher, and Maya Pedal Bicycle Mill.
Manufacturing/Building Method
This product is mass-produced in the United Kingdom.
Intellectural Property Type
Patent
User Provision Model
Users can obtain the product/service from Alvan Blanch's global list of approved dealers.
Distributions to Date Status
The exact number is unknown, but as of 2021, there have been Alvan Blanch projects completed in over 100 countries worldwide.
Feedstock type
Corn, rice
Feedstock rate (kg/hr)
500 kg/hr
Manual or motorized
Manual
Energy requirement (W)
2.25 kW
Portable or stationary
Portable
Design Specifications

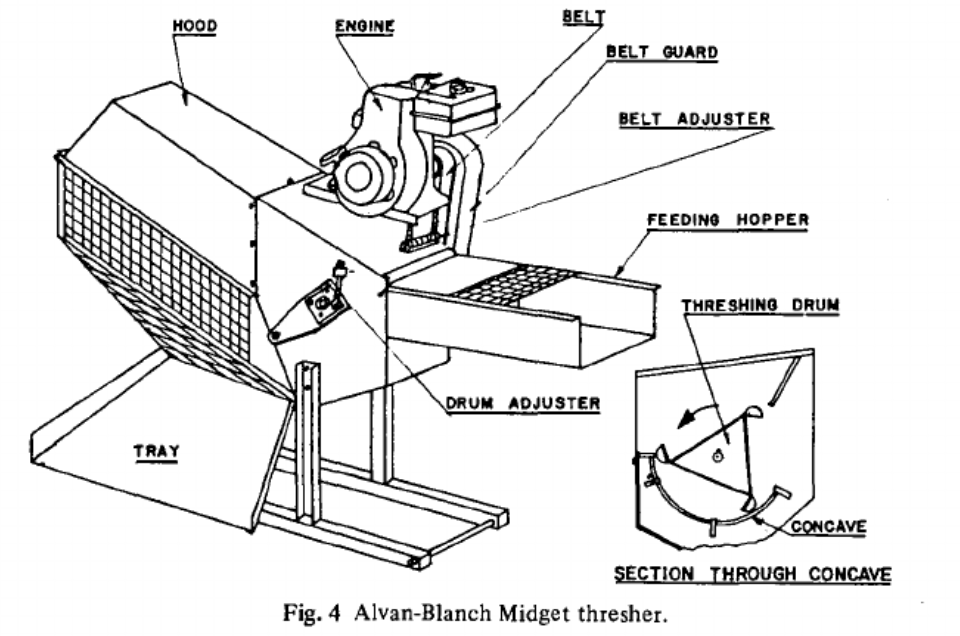

The Alvan Blanch Midget Crop Thresher is a portable thresher designed with heavy gauge welded steel with lifetime sealed bearings and anti-corrosion paint, and a bolted tubular square support frame with feet. The product has dimensions: 1420 x 580 x 1900 mm with a total weight is 190 kg. The machine has a 317 mm Peg drum with an adjustable concave, a feed table, and a side discharge spout. The drive is a PTO shaft from Power Tiller, including an attachment for speed conversion to 540 rpm.Cleaning is done through manual rotation and raking. The crop is fed directly into the drum from the table, and the separated grain falls through concave via the collection chute. The remaining grain, recovered as straw, is discharged from the drum onto fixed sloping sieve for secondary cleaning by manual raking.
Technical Support
Technical support is provided by the Alvan Blanch or its network of approved dealers.
Replacement Components
Unknown
Lifecycle
Unknown
Manufacturer Specified Performance Parameters
Designer specified performance targets include maximum reliability, functionality, and operator safety.
Vetted Performance Status
Testing performed by scientists from the Indian Agricultural Research Institute (IARI) and Kansas State University found that the machine worked satisfactorily for paddy and sorghum threshing but was not suitable for millets, groundnut, and maize.
Safety
Potential hazards related to the operation of this product include sharp and fast cutting tools.
Complementary Technical Systems

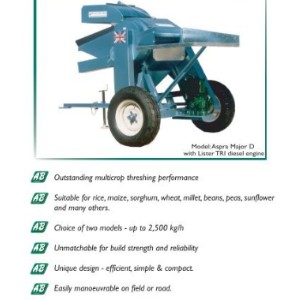

The manufacturer also sells a mobile thresher model, the Alvan Blanch Aspra.
Academic Research and References
Singhal, O.P., Thierstein, G.E., 1987, “Development of an axial-flow thresher with multi-crop potential,” Agricultural Mechanization in Asia, Africa, and Latin America, 18(3), pp. 57-65.
Compliance with regulations
Unknown
Other Information
This video developed by Alvan Blanch illustrates the operation and features of a similar mobile thresher model, Aspra.
