Alvan Blanch Oil Expeller Press XP100-E

Alvan Blanch Development Company Ltd

The Alvan Blanch Oil Expeller Press XP100-E is a cold press machine used for extracting oil from oilseeds like rapeseed and linseed

Snapshot
Manufacturing & delivery
Performance & use
Research & standards
Feedback

Product description Brand name and product description

The Alvan Blanch Oil Expeller Press XP100-E is an automatic oil expeller for cold pressing oilseeds like rapeseed, linseed and others. The product can expel oil from seeds at a feedstock rate of approximately 150 – 400 kg/hr.

Target region(s) Target region for distribution/implementation (listed by country if specified)

African countries^{Interview with representative}

Distributors/implementing organizations Organization(s) distributing/deploying this product directly to communities/individuals?"

Alvan Blanch Development Company Ltd^{Interview with representative}

Market suggested retail price Price per unit or service price per usage/terms (USD). Subsidies noted.

12,190 USD^{Interview with representative}

Competitive landscape Similar products available on the market. May not be a comprehensive listing.

BDC Systems Limited, Piteba Oil Expeller, Tinytech Palm Oil Mill Plant

SDG targeted United Nations Sustainable Development Goals (SDGs) targeted with this product/application/service

Goal 8: Promote sustained, inclusive and sustainable economic growth, full and productive employment and decent work for all

Target user(s) Target user/consumer base (country, income segment)

Small village co-operatives to privately owned farms and processing factories^{Interview with representative}

Manufacturing/building method(s) Detail regarding solution production or construction method (instructions, mass production capacity, custom made,etc...)

The Alvan Blanch Oil Expeller Press XP100-E is built using components such as proximity sensors, bar magnet grid, precision cast press plates and others.

Product Intellectual Property Open source/IP protected (note patent)/trade secret/other?

IP protected ^{Interview with representative}

User Provision Model Where can the product be purchased/acquired by end users?

All components can be ordered through Alvan Blanch – and can be sent out directly by DHL or airfreight – dimensions/weight dependent^{Interview with representative}

Distribution to date Number of units that have been deployed, downloads or users to date

About 40 ^Interview ^with ^{representative}

Fields marked are sourced values that have been evaluated by the manufacturer or a third party, all others are design specifications.

Feedstock types

List of crops that this technology can extract oil from

Oilseeds like rapeseed, sunflower, linseed, etc.

Volume of oil produced (L)

Amount of oil extracted, in liters

250-300

Capacity: Feedstock rate (kg/hr)

Amount of produce that can be cracked to extract oil, measured in kilograms per hour

150-400

Power source

How is the technology powered?

Motorized

Motor drive power (kW)

What is the power rate of the motor running the equipment, measured in kilowatts

9.2

Design specifications Component and Operation overview including power, portability, facility requirements, preventative maintenance and user training requirements

The Alvan Blanch Oil Expeller Press is designed such that the seed is placed under increasing pressure as it is conveyed through a tapered chamber. Because of the high level of compression (and pressure generated temperature) oil is expelled through a set of rings. The residual solid matter is conveyed to the end of the press and falls away as thin strips of ‘oilcake’.

• Compresses oilseed drape at 150 – 400 kg/hr

• No switches or basic control panel

• Dimensions (LxWxH) (cm): 155 x 112 x 180

• XP100E model has a 9.2 kWh motor. ^{Interview with representative}

SPECIFICATIONS
Models	Capacity (Typical)	Drive kW	Length mm	Width mm	Height mm
XP100	150 kg/hr	9.5	1550	1120	1800
XP300	400 kg/hr	23.0	2035	1276	1937

Key features:

Cast iron multi-segmented body
Stainless steel oil collection trough
Multiple filter frames with cotton filter cloth and oil discharge taps
For filtration of vegetable oils
Steel support stand
Geared pump with overflowing valve

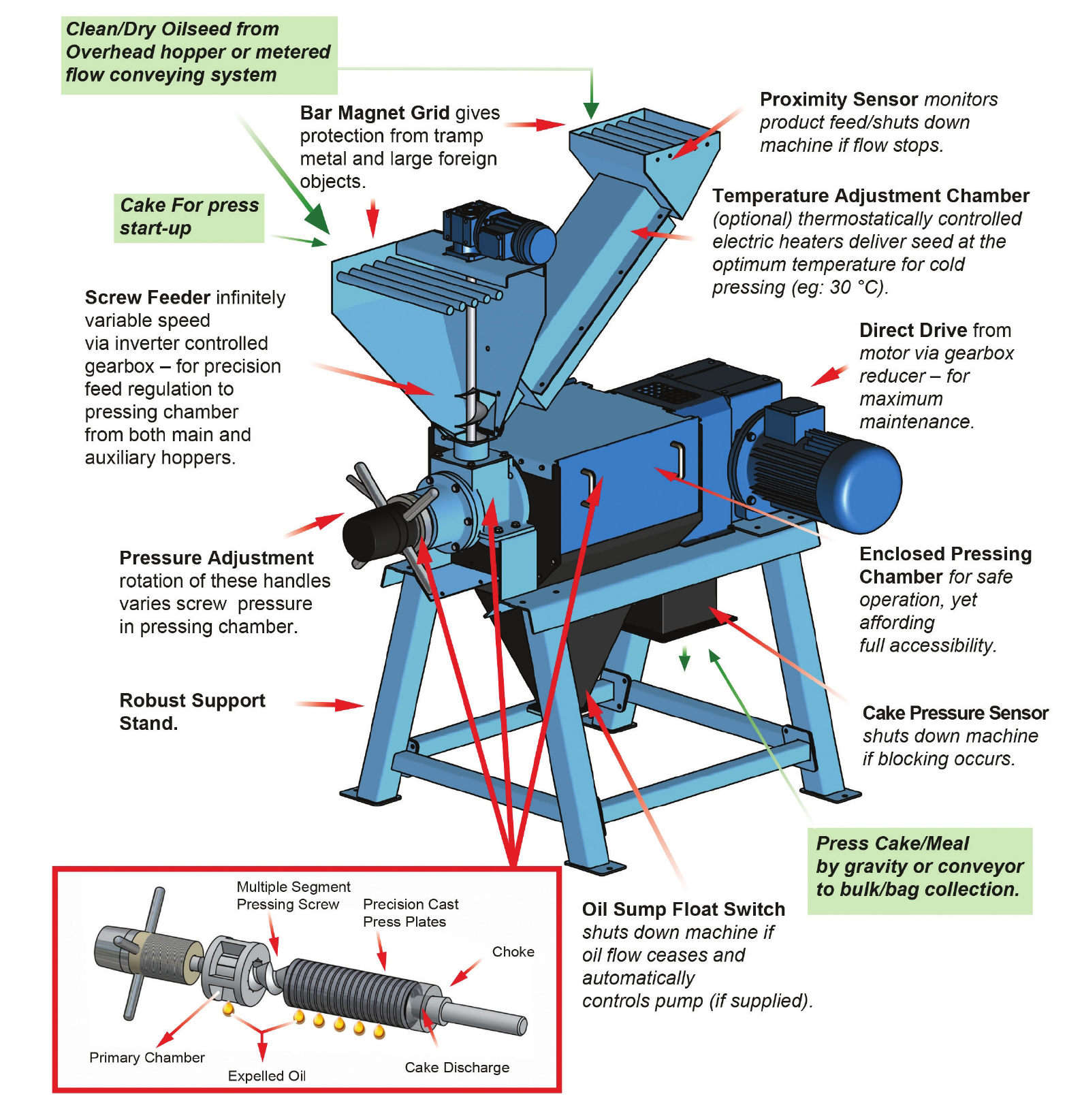

Product schematics Design and assembly illustrations

Technical support Technical support provided by

Technical support is provided by Alvan Blanch

Replacement components Availability of replacement components (in-country, by order,...)

Choke ring, multiple segment pressing screw, set of 17 cast iron replaceable plates^{Interview with representative}

Lifecycle Disposal and warranty

10-15 years

Manufacturer specified performance targets Designer / Manufacturer specified targets

The Alvan Blanch Oil Expeller Press is designed to expel approximately 250 to 300 liters of oil from one tonne of rapeseed, depending upon the original oil content, moisture content and cleanliness of the sample

Vetted performance Findings of manufacturer evaluations or independent testing centers

Unknown

Testing organizations Independent lab, academic research centers, etc.

Alvan Blanch

Safety Potential hazards / risks related to operation of this product

Unknown

Complementary technical systems Performance of this product is improved with another technology (eg. Cookstoves and Wind-blocking skirts)

If a generator is used to power the press – the press should be fitted with a speed controller. A voltage monitoring system is needed to avoid damage to the inverter.

The XP100E gives crude oil. In order to get processed oil, you would need a filter press, pump, settling tanks, etc.

Additional attachments include: Temperature Adjustment Chamber, Oil Pump, Feed Hopper, Proximity Sensor, MPC Pre-Cleaner, MPC Support Frame, IBC Tank, Primary Settling Tank ^{Interview with representative}

Academic research Academic research related to the product (e.g. published papers in peer-reviewed journals)

Orhevba, B. A., Chukwu, O., Osunde, Z. D., and Ogwuagwu, V., 2013, Influence of moisture content on the yield of mechanically expressed neem seed kernel oil. Academic Research International. 4(5) pp 252-257.

Bamgboye, A. I., and Adejumo, A. O. D., 2007, Development of a sunflower oil expeller. International Commission of Agricultural Engineering, 9: pp 1-7.

Nelson, A. I., Wijeratne, W. B., Yeh, S. W., Wei, T. M., and Wei, L. S., 1987, Dry extrusion as an aid to mechanical expelling of oil from soybeans. Journal of the American Oil Chemists’ Society, 64(9), 1341-1347.

Compliance with regulations Product certifications and standards referenced by designer/manufacturer

Unknown

Evaluation methods Evaluation methods/protocols/guidelines referenced by designer or manufacturer.

Every XP100E is not sold until it is tested on oil seed and deemed ready for distribution^{Interview with representative}

Other information

This video shows how the oil expeller works.

The Queens Award for Enterprise: International Trade 2012, state recognition by Buckingham Palace, winner of A.T. Ferrell Award for dealer innovation
