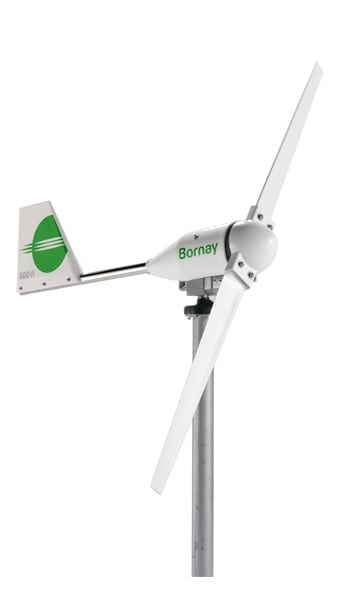

Bornay Inclin 600

Bornay

Snapshot
Manufacturing & delivery
Performance & use
Research & standards
Feedback

Product description Brand name and product description

Wind turbine designed to work in parallel with solar systems to support rural electrification, water pumping and telecom.

Target region(s) Target region for distribution/implementation (listed by country if specified)

Points of sale in: Spain, France, Mexico, Colombia, Venezuela, Peru, Argentina, Chile, Italy, USA. Success in rural African communities as well.

Distributors/implementing organizations Organization(s) distributing/deploying this product directly to communities/individuals?"

Bornay, through various national distributors worldwide.

Market suggested retail price Price per unit or service price per usage/terms (USD). Subsidies noted.

The Bornay Inclin 600 turbine costs $3,039 – $3,647 USD (£2000-£2400). However the tower mount can cost from £2-3500 depending on the height and type of tower.

Competitive landscape Similar products available on the market. May not be a comprehensive listing.

Very strong, competitive market: Bornay has a line of products: Bornay 250W, 1500W, 3000W and 6000W, Zephyr Airdolphin Mark-Zero/Pro, Marlec Rutland 913 Windcharger.

Solar powered micro/mini grids.

SDG targeted United Nations Sustainable Development Goals (SDGs) targeted with this product/application/service

Goal #7: Ensure access to affordable, reliable, sustainable and modern energy for all

Target user(s) Target user/consumer base (country, income segment)

Target consumers are those in remote areas not connected to the grid, or those connected with intent to sell power back to the grid.

Manufacturing/building method(s) Detail regarding solution production or construction method (instructions, mass production capacity, custom made,etc...)

Mass produced, available to ship within 24-48 hours

Product Intellectual Property Open source/IP protected (note patent)/trade secret/other?

Patented

User Provision Model Where can the product be purchased/acquired by end users?

World wide distribution through many distributors. It is not clear if turbines can be purchased directly from the company or only through distributors in each country. Can ship to any point on the planet in 24-48 hours.

Distribution to date Number of units that have been deployed, downloads or users to date

6,000

Fields marked are sourced values that have been evaluated by the manufacturer or a third party, all others are design specifications.

Start up windspeed (m/s)

3.5

Power output, min (W at m/s)

Unknown

Power output, max (W at m/s)

626 @ 14

Bladespan (m)

2.0

Turning radius (mm)

N/A

Direction of rotation

Counterclockwise

Number of blades

Control systems

Electronic regulator & Passive tilting

Blade materials

Fiberglass and carbon fiber

Windturbine weight (kg)

38.0

Design specifications Component and Operation overview including power, portability, facility requirements, preventative maintenance and user training requirements

*Technical specifications*

• Number of blades: 2

• Diameter: 2 m

• Material: Fiberglass and carbon fiber

• Direction of rotation: Counterclockwise

*Electrical Specifications*

• Alternator: Three phases, permanent magnet

• Magnets: Ferrite

• Nominal power: 600 w

• Voltage: 12, 24, 48 v

• RPM: @ 1000

• Regulator: 12 v 60 Amp; 24 v 30 Amp; 48 v 15 Amp

*Physical Specifications*

• Windturbine weight: 38 kg

• Regulator weight: 7 kg

• Packaging: 50 x 77 x 57 cm – 55 kg

• Dimensions – weight: 104 x 27 x 7 cm – 4,7 kg

• Total: 0,22 m3- 59,7 Kgr

• Scope of supply: turbine, controller

• Control and protection system: speed control, power Control, yaw Control, braking

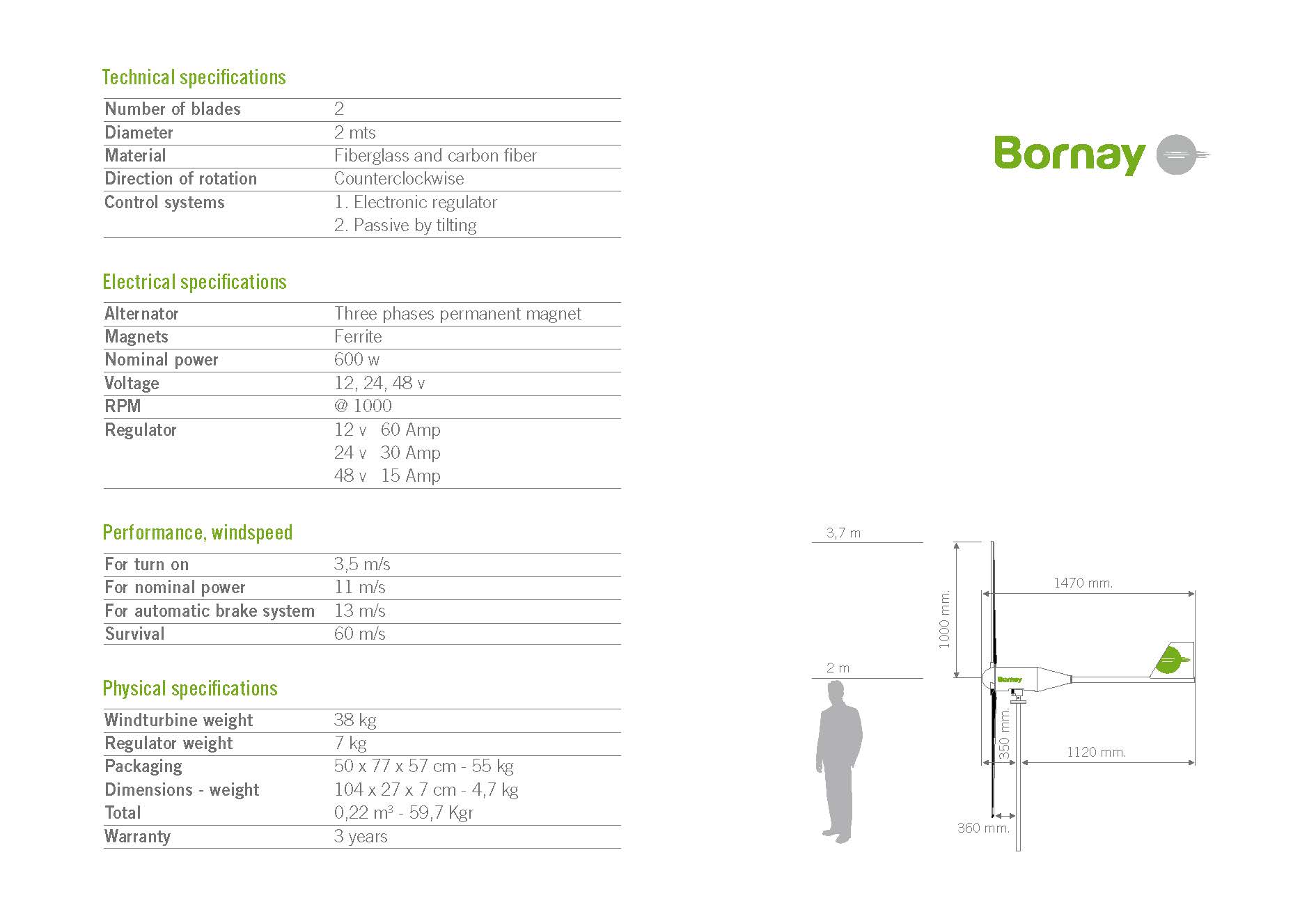

Product schematics Design and assembly illustrations

See image below.

Technical support Technical support provided by

Bornay (telephone support available), distributors, and authorized installers ^{Interview with representative}

Replacement components Availability of replacement components (in-country, by order,...)

Replacement components are also available through Bornay or via distributors ^{Interview with representative}

Lifecycle Disposal and warranty

Lifecycle unknown. The warranty for Bornay 600 is 3 years.

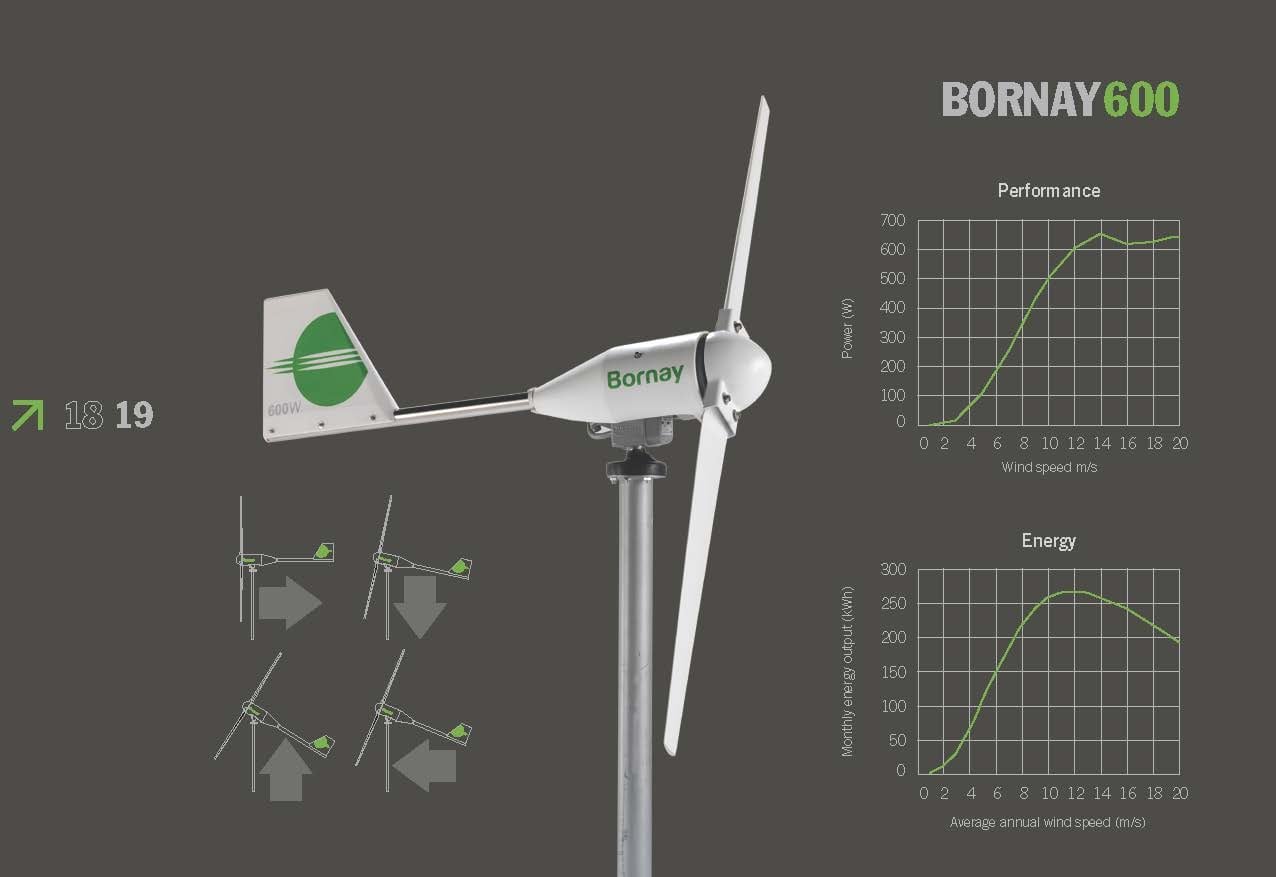

Manufacturer specified performance targets Designer / Manufacturer specified targets

Performance, windspeed

• For turn on: 3,5 m/s

• For nominal power: 11 m/s

• For automatic brake system: 13 m/s

• Survival: 60 m/s

Vetted performance Findings of manufacturer evaluations or independent testing centers

Unknown

Testing organizations Independent lab, academic research centers, etc.

Bornay has its own laboratory in Spain – not clear if other research centers are involved

Safety Potential hazards / risks related to operation of this product

There are some potential hazards during the operation (danger of proximity of the blades to objects, humans or wildlife), which can be prevented by using appropriate wiring and not letting the turbine run freely without connection to the battery.

Complementary technical systems Performance of this product is improved with another technology (eg. Cookstoves and Wind-blocking skirts)

A hybrid energy system, such as solar pv, is beneficial in the event of low wind. Bornay also recommends combining solar power with a wind turbine and having a battery bank to store energy.

Academic research Academic research related to the product (e.g. published papers in peer-reviewed journals)

Ettoumi, F.Y., Adane, A.E.H., Benzaoui, M.L., Bouzergui, N., Comparative simulation of wind park design and siting in Algeria. Renewable Energy. 2008 Oct;33(10):2333-2338.

Compliance with regulations Product certifications and standards referenced by designer/manufacturer

International standard ISO 9001, appliance standards under EC Directives: 89/392/CEE & 91/368/CEE, as well as the Normative of Security in Small windturbines: UNE-EN-61400-2. Bornay’s larger models have been tested with some others under CIEMAT-CEDER Spanish National renewable Energy center for distributed grids – but the 600 model was not part of these tests.

Evaluation methods Evaluation methods/protocols/guidelines referenced by designer or manufacturer.

No details about the testing methods were provided, although results are available online.

Other information

Unknown

In context photographs (0)

You can use the form below to contribute a photo of this product.

In context files & documents (0)

Feedback from users, customers & distributors

Please let us know your experience in using this product through comments below.

Solutions Library

Sign In

To search & compare 600+ essential technologies

Breezergy Micro Wind Turbine

Piggott Axial Flux Alternator Wind Turbine

Biro Air Turbine

Totempower Prototype SD-1

Quietrevolution qr5

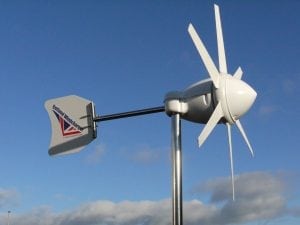

Rutland 910- 4 Furlmantic Windcharger
