Homaya SHSO1

Upcoming Update

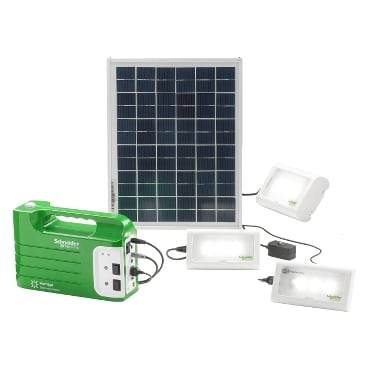

This solar home system is composed of a solar panel, a battery box with 3 USB ports (12 V DC/each), 2 fixed lamp, 1 portable and an inbuilt torch.

Tested By
  • Lighting Global
Content Partners
Unknown

Author

Product Description

Launched by Schneider Electric Industries SAS, the Homaya SHSO1 provides home lightning through an energy system composed of a solar panel, a Lithium-Iron Phospate battery, 2 fixed lamps, 1 portable lamp with 3-hours backup and 1 inbuilt torch, 4 LED lamps in total with +500 lumens when used in combination. The battery box has 3 integrated USD ports with 12 V DC/each that enable universal charging of mobile phones and radios and it features adapters for mobile phones.

Target SDGs

SDG 7: Affordable and Clean Energy

SDG 8: Decent Work and Economic Growth

Market Suggested Retail Price

$61.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Schneider Electric Industries SAS

Competitive Landscape

Direct competitors include M-KOPA IV Solar Home System and Barefoot Connect 620.

Manufacturing/Building Method

This product is mass produced. The manufacturer has 207 factories in 44 countries.

Intellectural Property Type

Trademark

User Provision Model

Directly from the manufacturer and from its international distributors.

Distributions to Date Status

Within the company's sustainability strategy, Schneider electric is developing inclusive business models within electric engineering tranings and entrepreneurship for people from underprivileged backgrounds. Since 2009, they have trained over 130,000 people, developed centres of excellence in Algeria, Colombia, Kazakhstan, and South Africa and they have disseminated projects in 50 countries worldwide, mostly in Africa, Asia and Latin America. The exact number of distributed Homaya solar solutions is unknown, however, over 3,200 households in Cameroon beneficiated from this systems in 2017 and more in remote villages in the Democratic Republic of the Congo.

Description of power outputs

3 USBs and 1 DC outlet

Description of light points

2 LEDs

Total lighting service (lumen-hours per solar-day)

2,000 lumen-hours per solar-day

Peak power rating (Wp)

6.9 Wp

Battery capacity (kWh; mAh)

Main unit has a capacity of 1,400 mAh and the portable lamp has 2,200 mAh



Nominal battery voltage (V)

Main unit has 12.8 V and portable lamp has 3.7 V

Battery type

Main unit has Lithium Iron Phosphate and portable lamp has Lithium ion

User replaceable battery (yes/no)

Yes

Remote system diagnostics (yes/no)

No

Payment structure

Purchased outright

Mobile service required (yes/no)

No

Design Specifications

Design specifications include the solar panel, battery and solar lamps. The solar module is a polycrystalline silicon panel with 6,9 Wp of maximum power point. The battery is Lithium-Iron Phospate type with 12,8 V of nominal voltage, 1400 mAh capacity and with 3 integrated USB ports (12 V DC/each) and LED indicator lights for monitoring the charging of the system. All lamps are LED type (2 fixed, 1 portable with 3 hours backup and 1 inbuilt Torch) with various light outputs, resulting in +500 lumens in total when used all together.

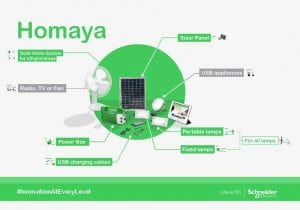

Product Schematics

Technical Support

Provided by the manufacturer, support centre available for product information, technical support, purchase product and other support (including mobile apss & videos) enquiries.

Replacement Components

The product has a 2-year warranty covering manufacturing defects, however, according to Lightning Global the battery is easily replaceable with common tools.

Lifecycle

Battery lifecycle is 5 years.

Manufacturer Specified Performance Parameters

Schneider Electric works  promoting renewable off-grid products and solutions in regions lacking electricity in a safe, environmentally friendly and sustainable manner. Solar products, including Mobiya, Homaya and Villaya are commercially desployed through adapted business models that ensure innovation and engagement. Both entrepreneurship and engage are promoted through  training, funding, and volunteering to accelerate the world toward a healthier future for its people and its climate.  Shneider Electric also supports the Energy Access Ventures Fund that will invest of €60 million to transform lives and stimulate economic development across Africa by providing access to electricity for a million people.

Vetted Performance Status

A Solar Home System composed of a 6,9 Wp maximum power polycrystalline silicon panel and V and 20 Ah capacity lithium-iron phospate battery (12,8 V, 1400 mAh) connected to 3 light points in high-brightness setting (2 fixed LED lamps and 1 portable) has the following running hours after a typical day of solar charging (5 kWh/m2/day):  it powers the fixed lamps for 3,6 hours and the portable lamp for 4,5 hours, giving a total light output of 520 lumens (380 lumens for the fixed lamps, 140 lumens for the portable) and a total lightning service of 2000 lumen-hours/solar-day). 99% of the original output remains after 2,000 hours run time.

Safety

The Homaya SHS01 is a plug and play device, however, electrical installation and control guidelines provided by Scheneider Electric must be followed to avoid electrical shocks.

Complementary Technical Systems

Scheneider Electric also commercializes other four Solar Home Systems and further solar products and electric appliances.

Academic Research and References

There is no academic research on this specific product, however, Chaurey, A. and Kandapal, T.C. give a review on solar home systems for rural electrification:

Chaurey, A., Kandapal, T.C., A techno-economic comparison of rural electrification based on solar home systems and PV microgrids. 2010 Jun. Energy Policy. Volume 38, Issue 6, Pages 3118-3129.

Compliance with regulations

This product meets the Lightning Global Quality Standards for Solar Home System Kits.  Valid until the 30th of May in 2019. It meets this other certifications: SONCAP (that allows exporting the product to Nigeria), LM79 and LM80 (both related to luminaires), SABS (South African Bureau of Standards), IEC (International Electrotechnical Commission) and  IDCOL (Infrastructure Development Company Limited that funds renewable infrastructure projects in Bangladesh).

Evaluation methods

Lightning Global verified the Solar Home System Kit Quality Standards in the Energy Resource Institute in New Delhi, India, in the following aspects: drop test, switch and connector cycling, strain relief test, physical ingress protection test. Water protection was not tested as this product is meant for indoor use only. Portable lamp meets water ingress protection requirement with a warning label.

Other Information

For 2018, Schneider Electric is among the top 25 companies in Fortune Magazine’s Change the World ranking. Further awards and recognitions. A video about a Schneider initiative to bring home lightning to communities in South Africa
