DaSol SSL200

Upcoming Update

The SSL200 is a solar lighting kit for household use.

Developed By
  1. Anji DaSol
Tested By
  • Lighting Global
Content Partners
Unknown

Author

Product Description

The SSL200 is a solar light lightning kit developed by Anji DaSol Solar Energy Science & Technology Co., Ltd. The product consists of a solar panel and a solar lamp. It also has the functionality of charging a mobile phone.

Target SDGs

SDG 7: Affordable and Clean Energy

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Unknown

Competitive Landscape

Manufacturing/Building Method

The product is mass produced in a facility located in The Health Industrial Park, Anji, Zhejiang, China.

Intellectural Property Type

Trademark

User Provision Model

Unknown

Distributions to Date Status

Unknown

Lamp type

LED

Number of light points

1

Total light output (lumens)

Low: 52 lumens, High: 210 lumens

Multiple brightness settings (yes/no)

Yes

Light duration on single charge (hr)

Low: 4.7 hours, Medium: 20 hours, High: 40 hours

Mobile charging (yes/no)

Yes

Power source

Solar panel

Battery type

Lithium iron phosphate battery

Peak power rating (Wp)

2.5 Wp, 3100 mAh

Battery capacity (kWh; mAh)

3100 mAh

Battery nominal voltage (V)

3.2 V

User replaceable battery (yes/no)

Yes

User replaceable light (yes/no)

Unknown

Design Specifications

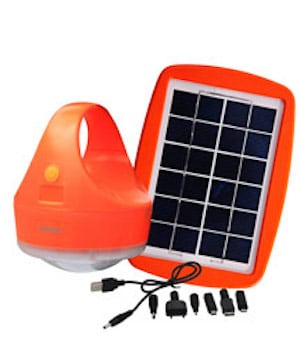

The SSL200 solar lighting kits includes one solar panel, a solar lamp, a steel stand, and several phone adapters. Specifications:

  • 1 - Polycrystalline silicon 2.4 W Solar Panel
  • 1 - Solar Lamp with one lightning point of 7 LEDs
  • 1 - Steel Stand for desk use
  • Several adapters to charge directly from the battery

Product Schematics

Technical Support

May be provided by the manufacturer during the warranty period.

Replacement Components

The battery of the solar lamp is replaceable and the solar panel may be replaced via USB port connection.

Lifecycle

The solar panel has a life span of above 20 years, the battery above 5 years and the lamp has a lifetime up to 50,000 hours. The product has a two year warranty.

Manufacturer Specified Performance Parameters

Manufacturers specify a 2000 cycles built-in lithium iron phosphate battery, long lifetime, dimmable lamp for energy savings, and a 3.7 kg carbon dioxide emissions reduction as the performance targets of the SSL200.

Vetted Performance Status

Lighting Global verified the following quality standards categories:

  • Truth in advertising
  • Lumen maintenance
  • Battery composition, protection and durability
  • Physical ingress protection
  • Water ingress protection
  • Soldering and electronics workmanship
  • Mechanical durability
  • Minimum warranty terms
  • Performance reporting.
Note that the results verified by Lighting Global expired in March 2019.

Safety

Two safety issues identified include:

  • If pressure is applied on the photovoltaic panel by sitting or stepping on it, the device might break and cause bodily injury or electrical shock.
  • A minor risk of burns exists due to the heating of the photovoltaic panel's surface by the sun.

Complementary Technical Systems

None

Academic Research and References

While there is no specific academic research, some information about off-grid solar lights can be found in the following paper:

Mills, E., Tracy, J., Alstone, P., Jacobson, A. and Avarto, P., 2015, Low-cost LED flashlights and market spoiling in Kenya’s off-grid lighting market, Energy Efficiency, 8, pp 323 – 337.

Compliance with regulations

Complies with IEC 62257-9-5 and holds ISO 9001:2008, CE and RoHS certifications.

Evaluation methods

Lighting Global cites Quality Test Method (QTM) in IEC 62257-9-5 and the Lighting Global Quality Assurance Protocol for Solar Home Systems as evaluation criteria.

Other Information

Anji DaSol Solar Energy Science & Technology Co., Ltd also manufactures other solar lighting kits as well as other products like polycrystalline and monocrystalline modules, folding panels and solar power banks. More information on IEC 62257-9-5 and ISO 9001:2008,
