Estufa Palermo

Upcoming Update

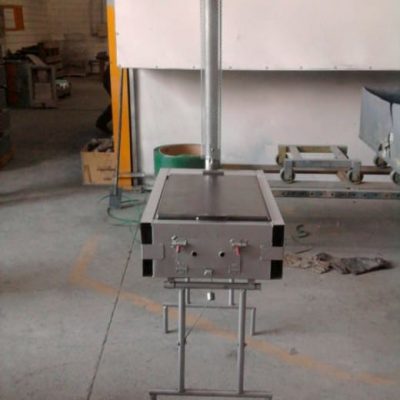

The Estufa Palermo is a plancha-style, wood-burning stove with a chimney.

Content Partners
Unknown

Author

Product Description

The Estufa Palermo is a plancha-style cookstove with a smoke extraction chimney, designed to burn wood and other biomass fuels with up to a 60% saving in fuel. It is designed and manufactured in Mexico by Abastecedora Palermo.

Target SDGs

SDG 7: Affordable and Clean Energy

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$171.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

This product is distributed by Abastecedora Palermo in Mexico.

Competitive Landscape

Direct competitors include ONIL Stove and Chispa Hogar.

Manufacturing/Building Method

Manufactured in Mexico.

Intellectural Property Type

Trademark

User Provision Model

This product is available through direct sales from the manufacturer.

Distributions to Date Status

Unknown

Fuel type

Biomass, wood

Chimney (yes/no)

Yes

Forced or passive

Passive

Pot type

Flat bottom

Pot capacity (L)

50 L

Thermal efficiency (%)

Unknown

PM emissions (g/MJ delivered to pot)

Unknown

CO emissions (g/MJ delivered to pot)

Unknown

Time to boil (min/L)

Unknown

Design Specifications

The Estufa Palermo is a side-feed, plancha-style, modular cookstove with a chimney. It is designed to burn biomass such as wood and has a large flat plate for the use of flat-bottomed pots. The maximum pot capacity is 50 L, and the unit weighs 40 kg. The dimension of the stove is 81 mm x 51 mm x 21 mm (l/w/h).

Product Schematics

Technical Support

Provided by the manufacturer.

Replacement Components

This product does have replaceable parts, including the chimney, smoke exhaust chute, combustion chamber tray and insulating bricks.

Lifecycle

The product has a warranty of 2 years and an expected lifecycle of 10 years.

Manufacturer Specified Performance Parameters

The cookstove is designed to reduce fuel consumption, smoke, and CO2 emissions.

Vetted Performance Status

Unknown

Safety

Potential safety hazards include burns from hot surfaces, and those associated with other biomass stoves.

Complementary Technical Systems

None

Academic Research and References

Medina, P., et al., 2017, “Comparative performance of five Mexican plancha-type cookstoves using Water Boiling Tests,” Development Engineering, Vol 2., pp. 20-28.

Wang, X., et al., 2013, “What Have We Learned about Household Biomass Cooking in Central America?,” Washington DC.

Compliance with regulations

Unknown

Evaluation methods

Unknown

Other Information

None
