Updated on February 23, 2024

·

Created on October 13, 2020

EVA System

Upcoming Update

The EVA System is a portable colposcope that connects with a mobile phone.

Developed By
  1. Mobile ODT
Content Partners
Unknown

Product Description

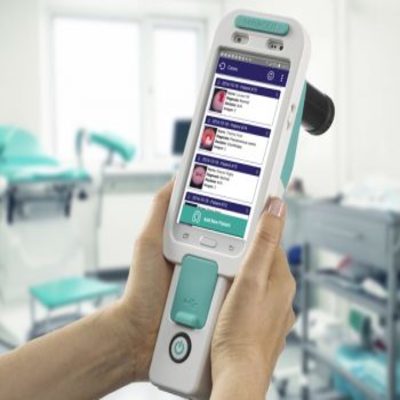

The EVA System is a portable, internet-connected, and FDA-authorized colposcope which connects with a mobile phone. Eva Systems are connected with high-quality optics, image, and video capture with secure and aims to streamline how gynecological examinations are conducted, recorded, and how patient cases are reviewed.

Target SDGs

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$1,800.00

Target Users (Target Impact Group)

Small and Medium-sized Enterprises, Public Sector Agencies

Distributors / Implementing Organizations

Distributed by Mobile ODT and distribution partners

Competitive Landscape

Direct competitors include Pocket Colposcope.

Countries

Israel, United States

Manufacturing/Building Method

Unknown

Intellectural Property Type

Patent

User Provision Model

This product is distributed by MobileODT distribution partners to doctors in the hospital.

Distributions to Date Status

Unknown

Consumables

None

Detection sensitivity

Unknown

Indispensable equipment for function (Y/N)

Yes

Maintenance or calibration required by user at time of use? (Y/N)

No

Number of Tests Performed

Unknown

Power supply type: Continuous, Recharging only (V, time required, battery life), Other

Rechargeable battery

Time required for procedure (minutes)

Unknown

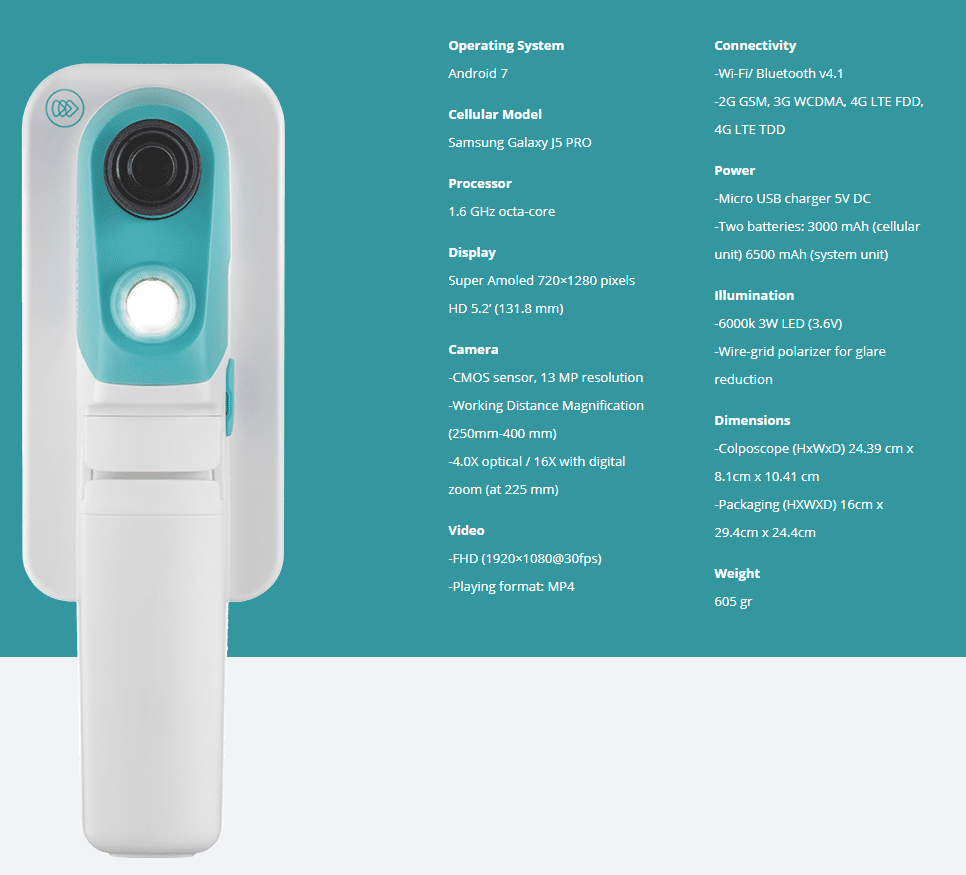

Design Specifications

Operating System : Android 7 Processor : 1.6 GHz octa-core : Android 7 Display : Super Amoled 720×1280 pixels HD 131.8 mm Camera

  • CMOS sensor, 13 MP resolution
  • Working Distance Magnification (250 mm-400 mm)
  • 4.0 X optical / 16X with digital zoom (at 225 mm)
Video
  • FHD (1920×1080@30fps)
  • Playing format : MP4
Connectivity
  • Wi-Fi / Bluetooth v4.1
  • 2G GSM, 3G WCDMA, 4G LTE FDD, 4G LTE TDD
Power
  • Micro USB charger 5V DC
  • Two batteries: 3000 mAh (cellular unit) 6500 mAh (system unit)
Illumination
  • 6000k 3W LED (3.6V)
  • Wire-grid polarizer for glare reduction
Dimensions
  • Colposcope : 24.39 cm x 8.1 cm x 10.41 cm
  • Packaging " 16 cm x 29.4 cm x 24.4 cm
Weight : 605 g

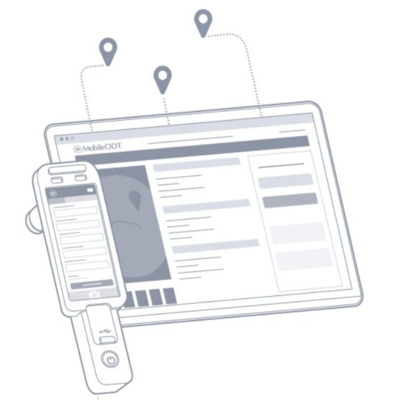

Product Schematics

Technical Support

Provided by manufacturer

Replacement Components

N/A

Lifecycle

5 - 10 years

Manufacturer Specified Performance Parameters

Designer specified performance targets include: high-speed of detection, portable, and low-cost

Vetted Performance Status

Unknown

Safety

Users must take appropriate precautions when using electrical devices.

Complementary Technical Systems

None

Academic Research and References

Qing, C., Zhongpeng, F., Di, Z., Long, S., 2019, Importance of Colposcopy Impression in the Early Diagnosis of Posthysterectomy Vaginal Cancer. Journal of Lower Genital Tract Disease. Vol. 23, pp. 13-17

Angela, H., Joan, W., et al., 2019, Diagnosis of Cervical Precancers by Endocervical Curettage at Colposcopy of Women With Abnormal Cervical Cytology. Journal of Lower Genital Tract Disease. Vol. 130, pp. 1218-1225

Justia Patents, “MOBILEODT LTD

Compliance with regulations

The product is certified by USFDA.

Evaluation methods

Unknown

Other Information

None
