Grundfos AQtap

Grundfos AQtap is a water ATM.

Developed By
  1. Grundfos
Tested By
  • None
Content Partners
Unknown

Author

Product Description

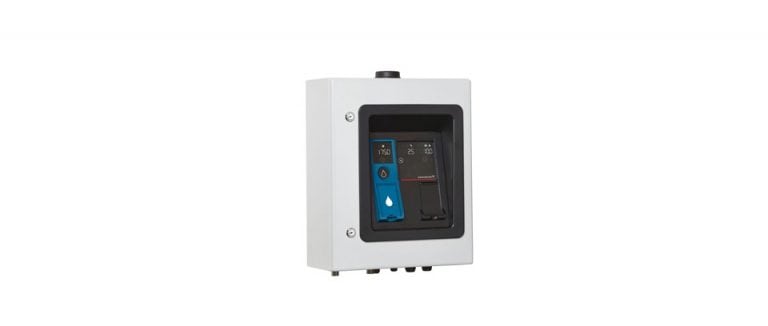

Grundfos AQtap is a water distribution interface that provides a platform for revenue collection and online management of water resources. The system uses WaterCards for users to purchase and store water credits, delivering water in 1-liter increments. Cards can be loaded via a water vendor or by mobile phone payment. Power is supplied from the grid or from solar panels and has a backup battery capable of 250 tappings. The AQtap provides a mechanism to expand water kiosk operations while maintaining accountability and transparency.

Target SDGs

SDG 6: Clean Water and Sanitation

SDG 7: Affordable and Clean Energy

Target Users (Target Impact Group)

Community, Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Grundfos has several international offices and websites are available by clicking “global” on the website.

Manufacturing/Building Method

Mass produced by Grundfos manufacturing.

Intellectural Property Type

Trade Secret

User Provision Model

Customers purchase products directly from the manufacturer.

Distributions to Date Status

Unknown

Description of system

Water ATM

Integrated treatment (yes/no)

No

System flow rate (L/min)

33.33 L/min

Maximum number of customers served

Unknown

Compatible water sources

Groundwater or treated surface water

Design Specifications

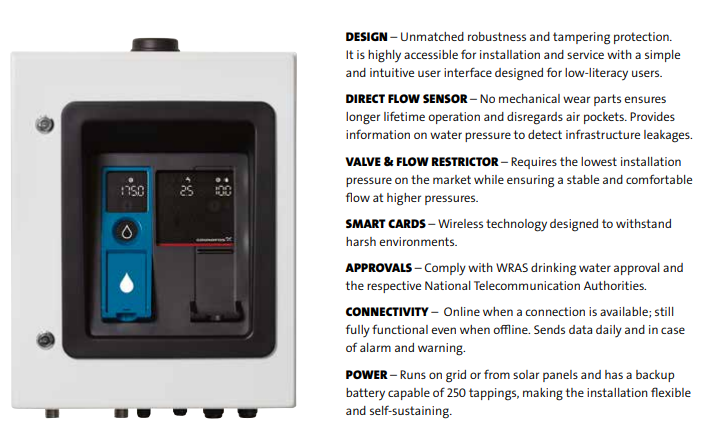

Grundfos AQTap has a tamper-protected design. The product has a direct flow sensor to detect leakages, valve and flow restrictor to ensure stable flow, and a wireless smart card technology for revenue collection. The water management system logs all water data and credit transactions. More details available on Grundfos AQTap brochure.

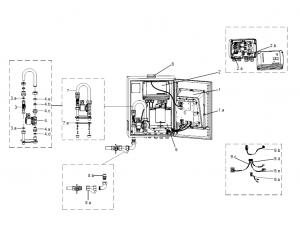

Product Schematics

Technical Support

Installation and operating instructions are available for the standard AQtap and a solar AQtap option.

Replacement Components

A comprehensive list of all spare parts includes: battery, antenna, cable, control unit, flow restrictor, flow sensor, hydraulic parts, plug, power supply, strainer, valve, and service suitcase.

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

Grundfos aims to have tampering protection and intuitive user interface designed for low-literacy users. The smart cards are designed to withstand harsh environments.

Vetted Performance Status

None

Safety

Safety instructions are detailed in the installation and operating instructions. Link can be found in research & standards.

Complementary Technical Systems

Direct flow sensor provides information on water pressure to detect infrastructure leakage. Treated water delivery system and storage.

Academic Research and References

“Lifelink Water Solutions,” Unfccc.int. Available: https://unfccc.int/climate-action/momentum-for-change/ict-solutions/lifelink-water-solutions

“Grundfos,” Grundfos.com. Available: https://www.grundfos.com/

“eWATERservices,” eWATERservices. Available: https://www.ewater.services

“Goal 6,” Sdgs.un.org. Available: https://sdgs.un.org/goals/goal6

Q. Tap, “AUTOMATED WATER KIOSKS,” Engineeringforchange.org. Available: https://www.engineeringforchange.org/wp-content/uploads/2016/08/Grundfosliterature-5565188.pdf

Engineeringforchange.org. Available: https://www.engineeringforchange.org/wp-content/uploads/2016/08/Grundfosliterature-5585277.pdf

Grundfos, “What is Grundfos Lifelink water solutions?,” 26-Mar-2015. Available: https://www.youtube.com/watch?v=ZNdz4V26OGE

“UNFCCC,” Unfccc.int. Available: https://unfccc.int/

Compliance with regulations

From Grundfos AQtap literature: The wetted parts are approved for drinking water by the Water Regulatory Advisory Scheme (WRAS). The GSM communication module is approved by the respective National Telecommunication Authorities. In addition, the AQtap dispenser must be used with water complying with WHO drinking water standards and technical data.

Evaluation methods

Unknown

Other Information

A promotional video is available here.

Recipient of the United Nations’ Momentum for Change Lighthouse Activity Award in the ICT category.
