Lorentz PS600 CS-F

Upcoming Update

The Lorentz PS600 CS-F DC Surface Solar Pumps are high specifications solar-powered in-line centrifugal DC pumps specifically designed for higher flow drinking water supply, livestock watering, pond management, and irrigation applications.

Developed By Unknown
Tested By
  • MET Labs
Content Partners
Unknown

Author

Product Description

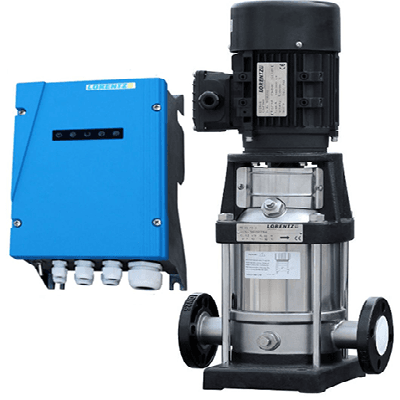

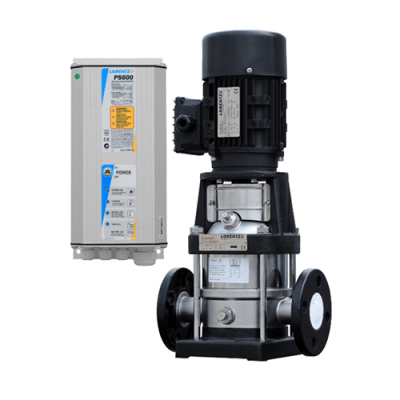

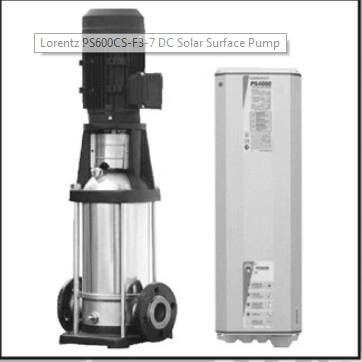

The Lorentz PS600 CS-F DC Surface Solar Pumps are high specifications solar-powered in-line centrifugal DC pumps specifically designed for higher flow drinking water supply, livestock watering, pond management, and irrigation applications. The pumps are designed for use in remote and harsh conditions; aiming for fast and simple installation, long life expectancy, and proven service record. Each system contains a pump, a motor, and a controller.

Target SDGs

SDG 2: Zero Hunger

SDG 7: Affordable and Clean Energy

Market Suggested Retail Price

$2,460.00

Target Users (Target Impact Group)

Community, Small and Medium-sized Enterprises, Public Sector Agencies

Distributors / Implementing Organizations

Lorentz sells the pump through a global network of authorized dealers.

Manufacturing/Building Method

The mechanical, electronic, and software designs are carried out in Hamburg (Germany) while manufacturing is done in 2 of their factories outside Beijing (China).

Intellectural Property Type

Trade Secret

User Provision Model

Users can obtain the product through local distribution partners who are supported by Lorentz with the latest training, tools, knowledge, information, and support.

Distributions to Date Status

Unknown

Pump type

Centrifugal

Irrigation capacity (acre)

Unknown

Maximum flow rate (L/min)

29 m3/hour

Maximum lift/head (m)

25

Required pressure (MPa)

Unknown

Maximum distance from water source (m)

Unknown.

Power source

Solar

Power requirement: Max power (W)

700

Power requirement: Max motor current (A)

13

Power requirement: Voltage range (V)

68V (optimum Vmp); 48-72V (nominal voltage).

Design Specifications

Motor

  • Pumps are fitted to ECDRIVE maintenance-free brushless DC motors without integrated electronics.
  • They should be powered by solar arrays configured to provide the input voltage required and sized at approx 120% of the rated motor power.
  • Speed: 900-3300 rpm
  • Insulation Class: F
  • Enclosure Class: IPX4
Controller
  • Integrated data logging of all relevant technical parameters, flow, and fuel cost savings easily accessible via pump scanner smartphone app.
  • Advanced configuration options for daily flow rate, constant and min/max pressure, level, and flow rate sensing.
  • Sensor inputs for dry run protection, tank switch, water metering, pressure, and level sensing.
  • Switch output for external devices (e.g chlorine dosing units, irrigation valves, etc).
  • Integrated SunSensor for extended pump lifetime.
  • Optional remote control functionality using the PS Communicator and pump manager service.
  • Integrated MPPT (Maximum Power Point Tracking) for maximum solar energy conversion efficiency.
  • Protection against reverse polarity, overload, and over-temperature.
Operating conditions
  • Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solids and fibers.
  • Maximum Liquid Temperature: +700 C
  • Ambient Temperature: -300C - +500 C
  • Suction Head: Max 6m (depending on operating parameters, refer to COMPASS software sizing)

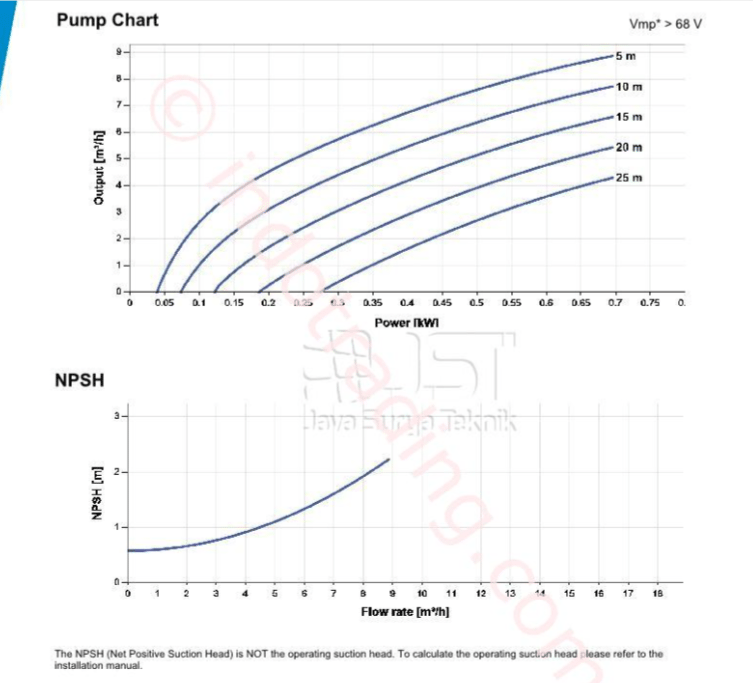

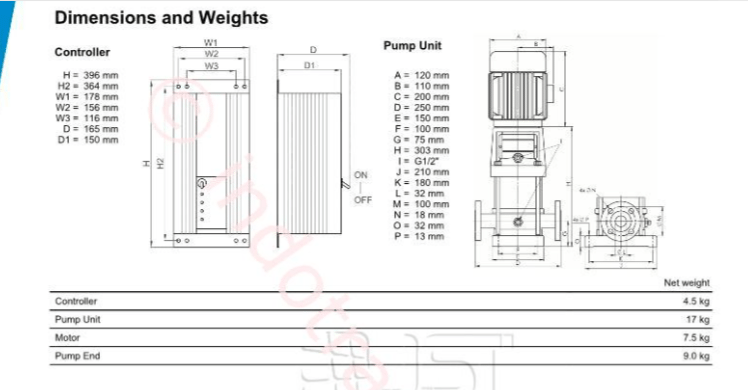

Product Schematics

Technical Support

Technical support is provided through trained local partners.

Replacement Components

Replacement components are available through local partners. Interview with representative

Lifecycle

15 years. Interview with representative

Manufacturer Specified Performance Parameters

Performance targets:

  • Long life expectancy and proven in the service record
  • Designed for use in remote and harsh conditions
  • Smart modular design for simple and cost-effective servicing and repair
  • Fast and simple installation
  • Cost-effective spare parts philosophy
  • Very strong ROI against diesel powered pumping reducing production costs and reducing the carbon footprint

Vetted Performance Status

Unknown.

Safety

No specified precaution hazards.

Complementary Technical Systems

Lorentz offers a wide variety of pump technology products.

Academic Research and References

Compliance with regulations

MET Certification for electrical safety.

Other Information
