Micro-Sizer

Upcoming Update

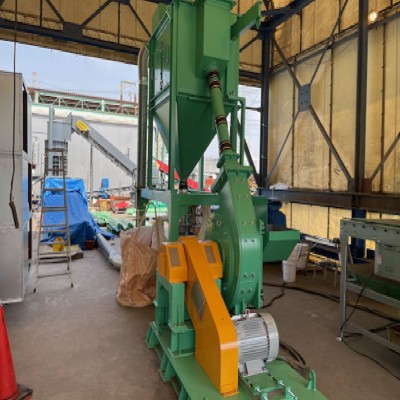

The Micro-Sizer is a crushing machine for glass recycling.

Content Partners
Unknown

Author

Product Description

The Micro-Sizer is glass cullet production equipment. Micro-Sizer crushes glass into powdery glass cullet and has been adopted by various organizations including glass cullet manufacturers and local governments both in Japan and the United States. Separation of other materials is not required with Micro-Sizer. For instance, caps and labels do not have to be removed from glass bottles before they are crushed. Liquid, a smell of alcohol, sugar and salt content are also eliminated during the crushing process. Glass cullet comes in different sizes between 0.05mm and 5.00mm.

The produced glass cullet by Micro-Sizer can be used in the following applications: (1) sand-like product as an alternative to natural sand for beach areas suffering from coastal erosion; (2) auxiliary material mixed with cement for concrete construction (i.e. graphite); (3) material mixed with asphalt for road construction; (4) material to improve clay soil; (5) purifying material for hydroponics; (6) floor material for walking road in golf course; (7) material mixed with paint coating for fluorescent display for road traffic; (8) material for bricks, ceramics and blocks.

This product is distributed in Japan and the United States, however further distribution is planned for emerging markets and developing countries.

Target SDGs

SDG 9: Industry, Innovation and Infrastructure

SDG 12: Responsible Consumption and Production

Target Users (Target Impact Group)

Small and Medium-sized Enterprises, Public Sector Agencies

Distributors / Implementing Organizations

Donico Inter Co., Ltd is the current distributer and they are looking for business partners who can import Micro-Sizer for local sales and would provide training on how to operate the equipment.

Manufacturing/Building Method

N/A

Intellectural Property Type

Patent

User Provision Model

Users can obtain the product directly from Donico Inter Co., Ltd

Distributions to Date Status

Since 1995 Donico Inter Co., Ltd has been developing the business in the US and Japan, about 20 Micro-Sizers have been installed in the US. In the Japanese market.

User operation

User intervention is required only for loading the machine

Consumables

No consumables required

Power supply type

Power supply is a sealed motor of 22 Kw / 50 Hz

Design Specifications

The area required for installation is 4 m x  6m. The Micro-Sizer has 11 rotors that operate at a rotation speed of 1800 rpm.It has a gross weight of 2000 Kg and air input of 50 m2/m, producing noise less than 85 Decibel. The diameter of the rotor is 610 mm, the belt size is 2000 mm and has an IN-let size of 170 mm.The material of the internal part is more wear-resistant than iron and aluminum. This special material is long-lasting and therefore reduces the operating cost in a longer perspective. In terms of volume, Micro-Sizer can produce about 2 ton of glass cullet per hour. Micro-Sizer can crush glass (i.e. glass bottles) into glass cullet (size is between 0.05mm and 5.00mm) by separating impurities such as caps and labels. Also, Micro-Sizer can eliminate liquid, smell of alchol, sugar and salt content during the crushing process.

Product Schematics

Technical Support

Provided by manufacturer.

Replacement Components

Although the wear proof metal material installed in the Micro-Sizer equipment is a long-lasting material, it can eventually becomes worn after extended operation time. Therefore, replacement and maintenance is inevitably required.

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

It has been adopted by local governments therefore performance was vetted by some institutions.

Safety

Users must take appropriate precautions when using electrical devices.

Complementary Technical Systems

None

Academic Research and References

There are some academic publications related to the product and glass recycling.

Compliance with regulations

N/A

Evaluation methods

None

Other Information

Video about the operation of the Micro-Sizer Japanese patent – 4048537
