Updated on June 11, 2024

·

Created on July 27, 2020

NetBeat

NetBeat is an irrigation and fertigation management system that integrates monitoring, analysis, and automation into a single platform and allows for remote management.

Developed By
  1. Netafim
Content Partners
Unknown

Author

Product Description

NetBeatTM is an irrigation and fertigation management system that integrates monitoring, analysis, and automation into a single platform. It combines sensing, monitoring, analysis, and decision support, as well as automation and control both onsite and remotely via a smartphone.

Target SDGs

SDG 2: Zero Hunger

SDG 8: Decent Work and Economic Growth

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Netafim

Manufacturing/Building Method

This product is mass-produced by Netafim.

Intellectural Property Type

Trademark

User Provision Model

NetBeat can be acquired directly from Netafim's website.

Distributions to Date Status

Unknown

Telecommunication service required

Wi-Fi, Bluetooth, Cellular, Ethernet, LoRa RF, RS-232

Device(s) required

Smartphone or Computer

Level of connection service needed

3G, 4G, LTE, or Broadband

Permanent network connectivity required (Y/N)

N

Usage rate (%)

Unknown

Additional features required

Dosing systems, Sensors, controllable irrigation system

Two way communication (Y/N)

Y

Literacy support (Y(specify) / N)

N

Languages available

English

Operating system and version

Linux

Power requirements

Mains Power Supply or Battery/Solar Panel

eAgriculture application

Automated irrigation and fertigation

Design Specifications

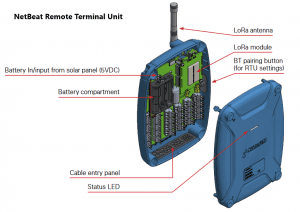

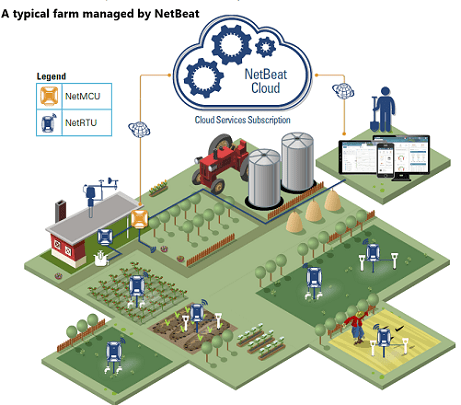

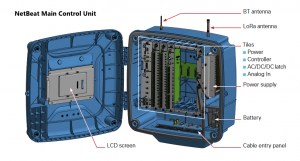

NetBeat is an automated irrigation system that monitors crops and the environment, then uses a cloud-based system to determine the irrigation and fertigation schedule and effect that automatically. It is controlled on-site or remotely using a computer or smartphone It consists of a Main Control Unit (MCU) and Remote Terminal Units (RTU) that collect information and relay it back to the MCU over wired or wireless connections. It utilizes a system of sensors placed on the ground and on the plants and combines this with external information on climate and satellite photographs. This information is sent to a cloud system that determines when the plants need to be irrigated, based on various pre-stored models for each specific crop, and automatically opens the valves in the fields. The sensors that are integrated with the system include soil sensors, plant sensors, and hydraulic sensors.

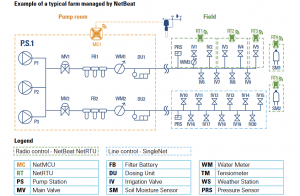

Product Schematics

Technical Support

Provided by the manufacturer. Users can also do basic maintenance on their own following the video guidelines in Netafim's YouTube channel.

Replacement Components

Replacement components include all MCU and RTU components.

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

According to Netafim, NetBeat aims to:

  • Provide real time insights on soil moisture, weather conditions and crop status.
  • Enable farmers to deliver precise amounts of water and fertilizers to crops.
  • Enable automated irrigation and fertigation based on predefined programs, sensor based trigger or cloud based crop models.
  • Support farmers with more than 50 years of irrigation and nutrigation expertise and agronomical know-how from Netafim.

Vetted Performance Status

Unknown

Safety

Potential hazards related to the operation of this product include:

  • Improper usage, handling, and disposing of lead-acid batteries may lead to injury or fire.
  • Exposure to radiofrequency fields beyond the FCC rules for human exposure may occur near antennas.
  • NetRTU installations can attract lightning discharge, hence the need for a lightning arrester.
  • Users may be exposed to hazards that come with working at heights during the installation of NetRTU.
  • Installing the NetRTU's near overhead power lines can lead to electrocution.

Complementary Technical Systems

The manufacturer also sells a solar panel for outdoor powering of the Remote Terminal Units.

Academic Research and References

“GrowSphereTM – The OS for Precision Irrigation and Fertigation.” n.d. Netafim.Com. https://www.netafim.com/en/digital-farming/

“Contact Us.” n.d. Netafim.Com. https://www.netafim.com/en/contact-us/

“Global Leader in Irrigation Solutions.” n.d. Netafim.Com. https://www.netafim.com/

“JISL Resource to Root Project.” n.d. Jisl.Co.In. http://jisl.co.in/jainresourceroot/index.htm

“News.” n.d. Rainbird.Com. https://www.rainbird.com/news

“Goal 2.” n.d. Sdgs.Un.Org. https://sdgs.un.org/goals/goal2

“Goal 8.” n.d. Sdgs.Un.Org. https://sdgs.un.org/goals/goal8

“GrowSphereTM – The OS for Precision Irrigation and Fertigation.” n.d. Netafim.Com. https://www.netafim.com/en/digital-farming/

USER MANUAL. n.d. “NE TBE ATTM.” Netafim.Jp. https://www.netafim.jp/bynder/C53B7C8C-E45D-4249-8ED830FD386EC092-netbeat-user-manual-including-interface-manual-2.5.19.pdf

Compliance with regulations

NetBeat System components complies with all the Local RF regulations, Cellular Regulations and meets the following specific regulations: CE, FCC/CSA, UL, ROHS, EMC.

Evaluation methods

Unknown

Other Information

Netafim also offers a wide range of irrigation tools and equipment such as drippers and drip lines, sprinklers, filters, valves, pipes, connectors, and information on growing different types of crops.

“Netafim.” n.d. Youtube. https://www.youtube.com/user/utubenetafim
