KSNM Cono Weeder
Read SolutionImplemented by
KSNM
Product Description

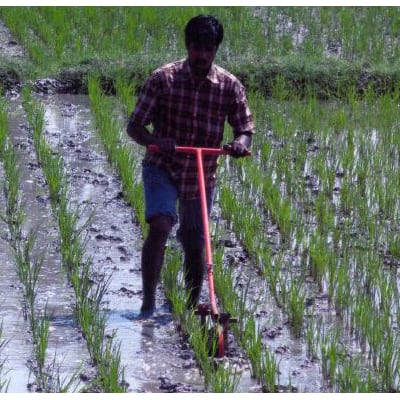

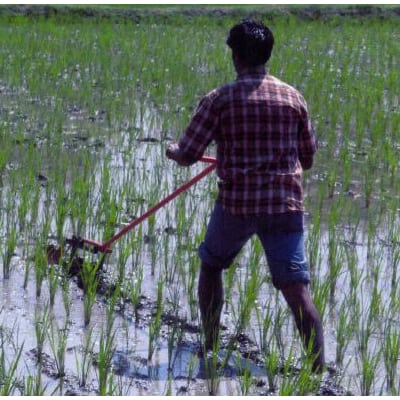

Cono Weeder is a manually operated weed remover used to remove unwanted plants (weeds) that hinder crop development. It allows for the timely, efficient, and cost-effective removal of weeds. Cono Weeder is developed by Magnificent Engineers based on a design by the Central Institute of Agricultural Engineering-Regional Centre, Coimbatore.
Target SDGs
SDG 2: Zero Hunger
SDG 8: Decent Work and Economic Growth
Market Suggested Retail Price
$21.00
Target Users (Target Impact Group)
Small and Medium-sized Enterprises
Distributors / Implementing Organizations
The manufacturer (Magnificient Engineers) distributes their product on their own.
Competitive Landscape
Direct competitors include KSNM Cono Weeder.
Regions
Southeast Asia
Countries
India
Manufacturing/Building Method

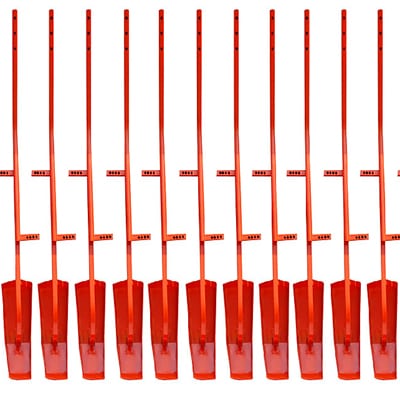

Mass produced in India.
Intellectural Property Type
Trade Secret
User Provision Model
The manufacturer sells the product individually as well as in bulk with dealership and distributorship models.
Distributions to Date Status
10,000 Interview with representative
Targeted Crops
Rice
Field Coverage (ha/hr)
0.15 ha/day
Materials
Metal
Weight (kg)
5.5
Power source
Manual
Design Specifications

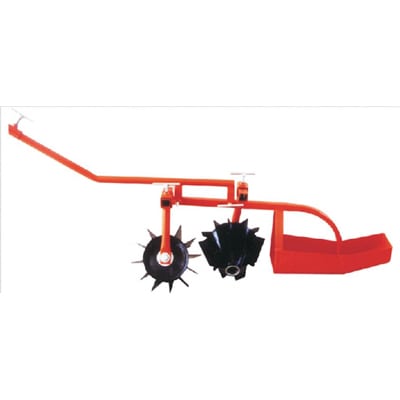

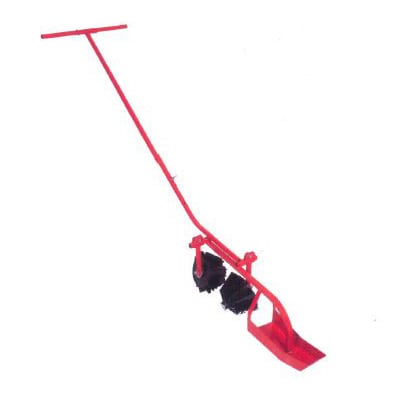

Cono Weeder is ergonomically designed and consists of two metallic cones with blades fixed to them.
Design specifications
|
1
|
Overall Dimension (L x B x H), mm | 2140 x 500 x 1070 |
|
2
|
Weight in Kg | 5.5 |
|
3
|
Working Width, mm | 140-160 |
|
4
|
No. of Cones | 2(Metallic) |
|
5
|
Height of handle from the ground, mm | 1070 |
|
6
|
No. of blades in the Weeding Cone | Straight blade – 6 Serrated blade – 6 |
|
7
|
Blade thickness, mm | 1.6, 2 |
|
8
|
Width of handle, mm | 500 |
|
9
|
Size of float(L x B x H), mm | 330 x 120 x 70 |
Product Schematics
Technical Support
Provided by manufacturer
Replacement Components
Replacement components are available individually. Metallic cones are available in bulk.Interview with representative
Lifecycle
Minimum of 2 years
Manufacturer Specified Performance Parameters
- Capacity of 0.15 ha/day
- Force required to push it
- Saving in labour – 50% compared to manual method
- Saving in cost – 40% compared to manual method
Vetted Performance Status
The test report prepared by CIAE - Regional Centre Coimbatore shows the performance of the Cono weeder with reference to the condition of field/soil, weed, crop, and operator.
Safety
The Cono Weeder is operated manually and no safety procedures are specified.
Complementary Technical Systems
Magnificent Engineers offers a range of equipment for the care and harvesting of similar crops
Academic Research and References
Compliance with regulations
Product certified by the Ministry of Agriculture, Department of Agriculture and Cooperation, Krishi Bhavan, New Delhi, India
Other Information
- Youtube video of the Cono Weeder
- Conor weeder mass production agriculture information
- Commercial Test Report by CIAE – Regional Centre Coimbatore
- Conor weeder warranty
