Updated on January 10, 2024

·

Created on October 3, 2018

Niwa Office 200 X2

Upcoming Update

Solar home system designed to provide lighting and mobile phone charging for an office or a small commercial business.

Developed By
  1. Niwa
Tested By
  • Lighting Global
Content Partners
Unknown

Author

Product Description

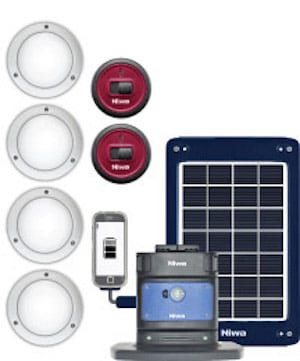

Niwa Office 200 X2 is a modular solar home systems with 4 ceiling lamps and mobile charging capabilities. Each lamp offers 50 Lumen brightness. In addition to supporting mobile phone charging, this system was designed to support internet tablets,  music speakers, radios, battery chargers, mosquito repellents and gaming consoles.

The system can be upgraded by adding higher lumen output lamps, higher rated charge controllers and higher power solar panels.

Target SDGs

SDG 7: Affordable and Clean Energy

Market Suggested Retail Price

$100.00

Target Users (Target Impact Group)

Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Niwa and distributors of their products.

Competitive Landscape

Manufacturing/Building Method

Mass produced.

Intellectural Property Type

Patent

User Provision Model

Available through direct order from the manufacturer and through manufacturers.

Distributions to Date Status

Unknown

Description of power outputs

5 USBs

Description of light points

4 LEDs

Total lighting service (lumen-hours per solar-day)

830 lumen-hours per solar-day

Peak power rating (Wp)

5 Wp

Battery capacity (kWh; mAh)

3,100 mAh

Nominal battery voltage (V)

3.2 V

Battery type

Lithium iron phosphate

User replaceable battery (yes/no)

Yes

Remote system diagnostics (yes/no)

No

Payment structure

Purchased outright

Mobile service required (yes/no)

No

Design Specifications

Appliances: LED Lamps, Mobile Phone. Lamp: LED CRI – 87, CCT – “Cool” (5000 – 8000 K) Batteries: 3.2V, 3.1 Ah

Product Schematics

Technical Support

Available from the manufacturer.

Replacement Components

Available from manufacturer and distributors.

Lifecycle

Battery has a lifetime of 5 Years.

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

Lighting Global has vetted the following performance parameters; 1. Truth in Advertising 2. Lumen Maintenance 3. AC-DC Charger Safety 4. Battery Composition, Battery Protection, Battery Durability. 5. Physical Ingress Protection 6. Water Ingress Protection 7. Drop Test 8. Soldering and Electronics Workmanship 9. Mechanical Durability 10. Minimum Warranty Terms 11. Performance Reporting

Safety

Follow proper electrical installation and control guidelines.

Complementary Technical Systems

None

Academic Research and References

Allet, M., 2016, Solar Loans through a partnership approach: lessons from Africa, The Journal of Field Actions, Special Issue 15, pp. 128-137

Compliance with regulations

This product has complied with the Lighting Global Quality Standards, and has been tested according to the Quality Test Method stipulated in the IEC 62257 – 9 -5 Standard.

Evaluation methods

Lighting Global Quality Standards

Other Information

Read more on the Quality Test Method stipulated in the IEC 62257 – 9 -5 Standard Visit website for purchase
