ovCatch 300 Night Fishing Light

Upcoming Update

Rugged industrial-grade solar powered light designed for

Developed By Unknown
Content Partners
Unknown

Author

Product Description

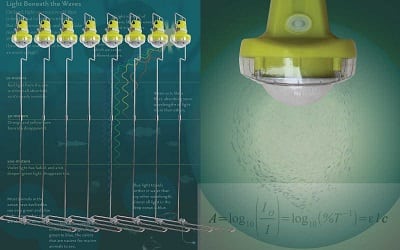

ovCatch™ 300 Night Fishing Light is a rugged industrial grade night fishing lighting tool. The product design was based on light transmission theory and actual night fishing experiments, and optimized by working with experienced fishermen, during moonless nights, on board of fishing boats, on the lake, and through comparisons with traditional pressurized kerosene lamps. It uses lithium batteries, LEDs and is made of a waterproof body.

Distributors / Implementing Organizations

Manufacturing/Building Method

Mass produced in Guanzhou and Shenzhen in China.

Intellectural Property Type

Patent Protected

User Provision Model

Direct purchases from Omnivoltaic Energy Solutions.

Distributions to Date Status

Unknown

Lamp type

LED

Number of light points

1

Total light output (lumens)

Low: 34 lumens, High: 310 lumens

Multiple brightness settings (yes/no)

Yes

Light duration on single charge (hr)

Unknown

Mobile charging (yes/no)

No

Power source

Solar Panel

Battery type

Lithium Ion

Peak power rating (Wp)

12 Wp

Battery capacity (kWh; mAh)

8800 mAh

Battery nominal voltage (V)

Unknown

User replaceable battery (yes/no)

Yes

User replaceable light (yes/no)

Unknown

Design Specifications

Solar PV Module: 13W Polycrystalline Silicon. Battery: Lithium Ion 8800mAh, at 3.6V Description of Lighting Points: 12 LEDs Colour Characteristics: CRI 83 CCT "Daylight" (>5000 K) Waterproof: The lighting unit meets IP67

Replacement Components

Available from the manufacturer during the two-year warranty period.

Lifecycle

5 Years

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

Lighting Global has vetted the following performance parameters: 1. Truth in Advertising 2. Lumen Maintenance 3. AC-DC Charger Safety 4. Battery Composition, Battery Protection, Battery Durability. 5. Physical Ingress Protection 6. Water Ingress Protection 7. Drop Test 8. Soldering and Electronics Workmanship 9. Mechanical Durability 10. Minimum Warranty Terms 11. Performance Reporting

Safety

Follow proper electrical installation and control guidelines.

Complementary Technical Systems

None

Academic Research and References

Gunther B, Sven B, Stolz M, Ansgar A, Bernhard A (2016) Lifetime Simulation of Rechargeable Batteries for Solar powered Fishing Lights Applied Mechanics and Materials, ISSN: 1662-7482, Vol. 848, pp 115-118



Compliance with regulations

The ovCatch 300 has complied with the Lighting Global Quality Standards, and has been tested according to the Quality Test Method stipulated in the IEC 62257 - 9 -5 Standard.

Other Information

None
