Peepoo Personal Toilet and Peepoo Collection System

Upcoming Update

Peepoo is a biodegradable toilet waste bag that converts human waste into fertilizer and the Peepoo Collection System is a waste-management service for urban sanitation.

Developed By
  1. Peepoople Kenya
Tested By
  • Department of Energy and Technology – Swedish University of Agricultural Sciences
  • University of Nairobi
Content Partners
Unknown

Author

Product Description

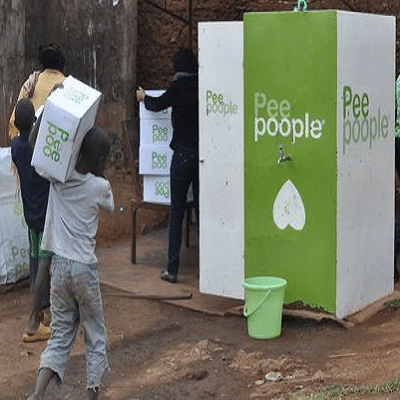

The Peepoo collection system is an enterprise based solution ideally serving 20,000+ users. The enterprise is an operating at a drop-point staffed by service operators that collect used Peepoos in the local community or immediate neighborhood. A refund is paid for each used Peepoo that is delivered. The Peepoos are collected and transported daily to a temporary storage area where they are safely kept and processed into usable fertilizer and sold to farmers.

Peepoo is a personal, single-use, self-sanitizing, biodegradable toilet that turns human waste into fertilizer without water. Peepoo can be used as a household toilet that helps prevent the spread of diarrheal diseases in urban slums and during emergencies to help save lives on a massive scale.

The target regions is any low income areas in the developing world with difficulty supplying their inhabitants with hygienic sanitation. Interview with representative

Specifically, Peepoople saleswomen and retail kiosks are now selling Peepoos in Kibera, Kenya, and in Goma, DR Congo. The Peepoo system has also been implemented in more than 100 schools in in Kibera. Peepoo has also been successfully tested in: Boxwood slum, Durban, South Africa together with Oxfam Novib, slum areas in Mymensingh, Bangladesh together with GIZ Bangladesh Bihar, India and as emergency response Peepoo has been recently used in Pakistan and the Philippines.

Regarding the market suggested retail price, to date, women micro-entrepreneurs in Kibera, Kenya sell Peepoos to beneficiaries as single units or in rolls of 25 Peepoos. The price-supported retail price is 3 Kenyan Shilling (approximately $0.03) per Peepoo. A refund of 1 Kenyan Shilling ($0.01) is given to the customer for each used Peepoo that is returned at a Peepoo drop-point.

The Pee Poople project currently employs 5 service operators (collectors) at a salary of Sh 1,500/month (~$14.30 USD). Collectors also receive a shilling (~$0.01 USD) per collected Peepoo bag. The total staffing investment for the year is ~$900.00 USD along infrastructure costs.

The Pee Poople project is evaluating the willingness-to-pay of users in the targeted areas. Peepoople predicts a need for price support of its Peepoo solution until 2020 in the Kibera project. The size of the subsidy depends on a variety of factors such as the development of the cost of the bioplastic raw material and artificial fertilizers. In the long term, the plan is that Peepoo shall be affordable for consumers directly, and the Peepoo system will be self-sustainable without subsidy.

Target SDGs

SDG 6: Clean Water and Sanitation

Target Users (Target Impact Group)

Household, Community

Distributors / Implementing Organizations

Peepoople Kenya (a registered NGO in Kenya) is piloting the collection services in Kibera Kenya under the Pee Poople project. The pilot that began in 2010 in partnership with the Chief, Chairman, and Elders of the Silanga Village in Kibera and has been financed by Swedish Vinnova and Dutch Simavi funds for the first three years.Interview with representative Regarding the Peepoo Person Toilet, Peepoople saleswomen and retail kiosks sell Peepoos directly to customers as part of Peepoople Kenya. Additionally, partner NGOs distributing Peepoos include the Red Cross, Oxfam, Caritas, ACF and UN-agencies.

Manufacturing/Building Method

This is a collection service based model. The distributed product, the Peepoo bags are mass produced via a high-speed production line Stockholm, Sweden. The capacity of the plant is up to 500,000 Peepoos per day, up to 12 million on a monthly basis.

Intellectural Property Type

Patent

User Provision Model

In local slum communities, users may purchase Peepos through Peepoople micro-entrepreneurs or kiosks. A local partner is responsible for organising the sales of Peepoos in urban slums. In schools, Peepoos are distributed for free to the children, initially financed by the school’s donors. In emergencies/refugee camps, Peepoos are distributed through governmental organisations or aid organisations Users can access the service by bringing their used Peepoos to drop-points in their local community or immediate neighborhood, which are staffed by service operators. The drop-points are open daily and are centrally located. In Kibera, a designed van also moves around the slum picking up bales containing used Peepoos.

Distributions to Date Status

The Peepoo collection service is currently operating in the Silanga village in the Kibera slum in Nairobi Kenya and supplies sanitation on a daily basis to 20 000 urban slum dwellers and school children. Farmers who utilize the fertilizer are receiving it for free from Pee Poople. As of April 2015, 67 farmers are on the waitlist for the fertilizer.

Toilet type

Peepoo Personal Toilet: Accessory

Peepoo Collection System: Container-based service

Evacuation method

Dry

Storage conditions

Container storage

Capacity (L)

Peepoo Personal Toilet: 0.8 L

Peepoo Collection System: Unknown

Time until emptying

Peepoo Personal Toilet: Single-use bags, inactivated after 4 weeks

Peepoo Collection System: Collection frequency at user discretion

Design Specifications

A Peepoo Personal Pack contains 28 Peepoo toilets and one Moyla disposal bag. The outer bag and inner funnel is made of high performance, fully biodegradable plastics that meet EU standard EN 13432. This means that Peepoo disintegrates and that the molecules are broken down into carbondioxide, water and biomass. EN 13432 is the strictest of all standards for evaluating biodegradability and compostability. The biodegradable plastics are made up of a mixture of aliphatic/aromatic co-polyesters (Ecoflex) and polylactic acid (PLA), with small additives of wax and lime. The biomaterial is developed in cooperation with the German company BASF. Peepoo is designed to optimize the contact between faeces and urea so that the urea dissolves and decomposes rapidly. As the urea breaks down, ammonia starts to inactivate infectious organisms. The carbonates that are produced when urea decomposes help to control the pH at a level that supports the ammonia sanitisation. The Peepoo polymer is developed to contain the ammonia within Peepoo during the time sanitisation occurs. Following decomposition the used Peepoos can be utilised directly in home gardens. Outer packaging material: OPP and PE Guaranteed shelf-life: 2 years Dimension: 140 x 160 x 40 mm Weight: 340 grams Packing: 20 Peepoo Personal Packs per box Box: 200 x 300 x 400 mm, 7 kg. Pictorial disposal guidelines for Peepoo bags are provided. The Peepoo collection system is comprised on a drop-point staffed by service operators that collect used Peepoos and is open daily. Used Peepoos are brought by customers who receive a refund for each used Peepoo that is delivered. The value of the refund is approximately 1/3 of the Peepoo purchase price (~$0.01 USD). The Peepoos are collected in woven polypropylene flexible containers (Big or Jumbo bags) which have a tube liner to ensure no leakage occurs and are held in place by a movable rack. When one bag is filled, it is closed and a new one is opened. Full Big or Jumbo bags are transported daily to a temporary storage area where they are safely kept for 4 weeks until they are fully sanitized and processed into usable fertilizer. Regular control of the internal temperature of the stored bags is performed. When fully sanitized, used Peepoos are brought to a nearby area were they are discharged through the base of the Big or Jumbo bags. The Peepoos are disintegrated mechanically, which releases the sanitized excreta for further processing, such as mixing with sand and clay into fertilized soil that can be sold.

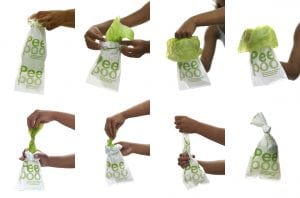

Product Schematics

Technical Support

Peepoo Personal Toilet is provided by Peepoo AB, Sweden.Interview with representative

Replacement Components

The Peepoo Personal Toilet, as a single-use product, it does not have replaceable components. For the Peepoo Collection System, Big or Jumbo bags are provided by Peepoople Kenya.

Lifecycle

Peepoo disposable bags have a guaranteed shelf life of 2 years. The service lasts as long as its payment.

Manufacturer Specified Performance Parameters

The urea inside Peepoo inactivates pathogens (harmful bacteria, viruses and parasites) after 4 weeks and Peepoo does not start to break down until the contents have been completely sanitized. PeePoople Kenya estimates the project will generate approximately 4,000 tonnes of pathogen-free fertilizer.

Vetted Performance Status

The Department of Energy and Technology at the Swedish University of Agricultural Sciences developed the single use, self-sanitising, biodegradable toilet (Peepoo bag) and tested it for smell, degradability and hygiene aspects. It was found that no smell was detectable from a 25 mm thick bag filled with faeces during 24 hours in a 10 square meter room at 30 degrees C. Bags that had been in contact with urea-treated faeces or urine for 2 months in air, compost or water at 24 or 37 degrees C showed little signs of degradation. Pathogen inactivation modelling of the 4 grams of urea present in the bag indicated that appropriate sanitation of fecal material collected was achieved in the bag within 2–4 weeks, after which the bag can be degraded and reused as fertilizer. The used Peepoos offer a safe nutrient for rural or urban farming. Peepoople Kenya was registered and incorporated as an NGO in Kenya. The Peepoople Kenya team is working in a very close relationship with the Silanga Chief, Chairman and Elders of the community in planning and implementing the Peepoo solution.

Safety

Peepoo Personal Toilet meets the WHO requirements for safe sanitation.

Complementary Technical Systems

Peepoo Kiti: Specially designed seat/holder to be used with Peepoo toilet for sitting or squatting Peepoo Yizi: Privacy tent for use in home or shelter Simple hand washing equipment is offered free of charge at each drop-point to ensure safe handling of waste.

Academic Research and References

Nordin, A., 2010, Ammonia Sanitisation of Human Excreta Treatment Technology for Production of FertiliserUppsala: Faculty of Natural Resources and Agricultural Sciences Department of Energy and Technology and National Veterinary Institute, A doctoral thesis.

Patel, Deepa, et al., 2011, Excreta disposal in emergencies: Bag and Peepoo trials with internally displaced people in Port-au-PrinceWaterlines 30 (1): 61-77.

Vinnerås, Björn, et al., 2009, Peepoo bag: self-sanitising biodegradable toiletWater Science and Technology 59(9): 1743-1749.

study by Department of Energy and Technology, Swedish University of Agricultural Sciences developed the single use, self-sanitizing, biodegradable toilet (Peepoo bag) and tested it for smell, biodegradability and hygiene aspects. Pathogen inactivation modelling of the 4 grams of urea present in the bag indicated that appropriate sanitation of faecal material collected is achieved in the bag within 2– 4 weeks, after which the bag can be degraded and reused as fertilizer.

Compliance with regulations

Peepoo Personal Toilet meet the WHO requirements for safe sanitation. World Health Organization (WHO) has established three requirements for a sanitation system to function for the individual, his or her surroundings, and for society in general. It must: 1. Isolate faeces from the individual. 2. Prevent flies and small animals from coming into contact with faeces, in order to prevent contamination. 3. Inactivate pathogens in faeces before they are returned to nature. The outer bag and inner funnel is made biodegradable plastics that meet EU standard EN 13432. EN 13432 are standards for evaluating biodegradability and compostability. Peepoo fertilizer meets NEMA microbiological quality guidelines for waste water use in irrigation. Peepoos meet WHO requirements for safe sanitation.

Evaluation methods

Peepoo Personal Toilet: Field trials and lab testing. The Pee Poople project is a large-scale field study evaluating the willingness-to-pay of users in the targeted areas.

Other Information

Check out their promotional video here. The Pee Poople project.
