Updated on January 19, 2024

·

Created on September 26, 2019

Solar Flyhorse Light

Upcoming Update

Solar Flyhorse Light is a solar-powered street light with smart power control function.

Developed By
  1. RoadSmart
Tested By
  • RoadSmart
Content Partners
Unknown

Author

Product Description

Solar Flyhorse Light is a solar intelligent street light in a unique shape. It is designed to resolve problems of concentrated light beams and outstanding dark spots for vehicles and pedestrians in night traffic.

Target SDGs

SDG 7: Affordable and Clean Energy

Target Users (Target Impact Group)

Community

Distributors / Implementing Organizations

The product is distributed through firms like DHL, UPS, FedEx or TNT

Competitive Landscape

Manufacturing/Building Method

Bulk production

Intellectural Property Type

Patent

User Provision Model

The product can be acquired online. The customer must contact RoadSmart and provide information about their project needs. A quote according to the client's requirements is then provided. Once the customer confirms the samples and places deposit, RoadSmart arranges the production.

Distributions to Date Status

Unknown

Lamp type

LED

Light output (lumens)

180 lumens/W

Number of light points

1

Solar panel description

Varies depending on the model type:

  • 100 W/18 V
  • 120 W/18 V
  • 150 W/18 V
  • 100 W*2 pcs/18 V
  • 120 W*2 pcs/18 V

Peak power rating (Wp)

Varies depending on the model type:

  • 30 W
  • 40 W
  • 50 W
  • 60 W
  • 70 W

Battery type

Rechargeable Lithium-ion Battery

Battery capacity (kWh; mAh)

Varies depending on the model type:

  • 0.38 kWh
  • 0.46 kWh
  • 0.61 kWh
  • 0.69 kWh
  • 0.88 kWh

Grid compatibility (yes/no)

Unknown

Tower height (m)

7-12 m

Design Specifications

The light uses MPPT Technology which increases the conversion of solar energy and reduces charge time. It has a mounting height of 8 m with the following specifications: Solar panel: 100 W LiFePO4 battery: 380 Wh/12.8 V LED power: 30 W Lumens: 5800-6100 lm LED quantity: 154 pcs

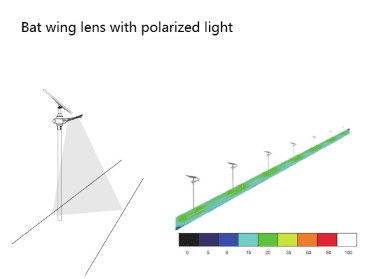

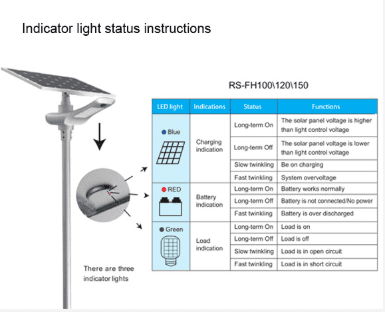

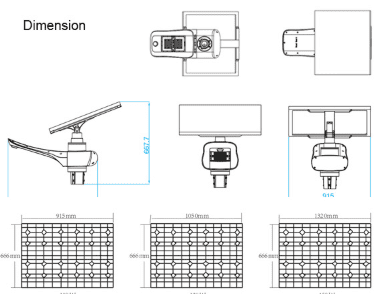

Product Schematics

Technical Support

Provided by the manufacturer

Replacement Components

Replacement components include the battery, control, and LEDs

Lifecycle

50,000 hrs

Manufacturer Specified Performance Parameters

The light is designed to effectively shorten the 20% charge time and work for 3-4 rainy days.

Vetted Performance Status

Unknown

Safety

User must take appropriate precaution when using an electrical device.

Complementary Technical Systems

None

Academic Research and References

Wang, Z. and Wang, Z., 2019, Research on Collaborative Method of Road Smart L Lighting, IOP Conf. Series: Materials Science and Engineering, 569.

Ali, M., Orabi, M., Abdelkarim, E., Qahouq, J.A.A. and El Aroudi, A., 2011, Design and development of energy-free solar street LED light system, IEEE PES conference on Innovative Smart Grid Technologies – Middle East (ISGT Middle East)

Costa, M.D.A., Costa, G.H., dos Santos, A.S., Schuch, L. and Pinheiro, J.R. 2009, A high efficiency autonomous street lighting system based on solar energy and LEDs, Power Electronics Conference

Compliance with regulations

The product has passed CE, FCC, CQC, RoHS, SGS, ISO9001:2008 certifications

Evaluation methods

The solar street light has passed IP65 test, salt spray test, IK08 wind force test.

Other Information

Video on Roadsmart Solar Flyhorse Light
