Updated on September 19, 2024

·

Created on October 20, 2021

Futurepump SE1

Futurepump SE1 is an irrigation pump powered by solar energy.

Developed By
  1. Futurepump Ltd.
Tested By
  • Kijani Testing Limited
Content Partners
Unknown

Author

Product Description

The Futurepump SE1 is a solar powered portable irrigation pump designed for small scale farmers to ensure the steady supply of water and also to minimize the energy needed for irrigating the farmlands.

Target SDGs

SDG 2: Zero Hunger

SDG 6: Clean Water and Sanitation

Market Suggested Retail Price

$495.00

Target Users (Target Impact Group)

Community, Small and Medium-sized Enterprises

Distributors / Implementing Organizations

The product is available directly from the manufacturer or from various international distributors.

Manufacturing/Building Method

The materials for the pump are sourced locally and the products are manufactured  in India, then shipped to clients directly or through third party distributors. The product is designed, however, in the Netherlands.

Intellectural Property Type

Trademark

User Provision Model

Products can be ordered directly online from the company or through its third party distributors.

Distributions to Date Status

As of 2020, the manufacturer has sold over 8000+ pumps.

Pump type

Solar powered irrigation pump

Irrigation capacity (acre)

Up to 1 acre

Maximum flow rate (L/min)

30 L/min

Maximum lift/head (m)

7 m

Required pressure (MPa)

Unknown

Maximum distance from water source (m)

15 m

Power source

Solar powered

Power requirement: Max power (W)

60 – 120 W

Power requirement: Max motor current (A)

2.5 A (DC)

Power requirement: Voltage range (V)

30 – 36 V

Design Specifications

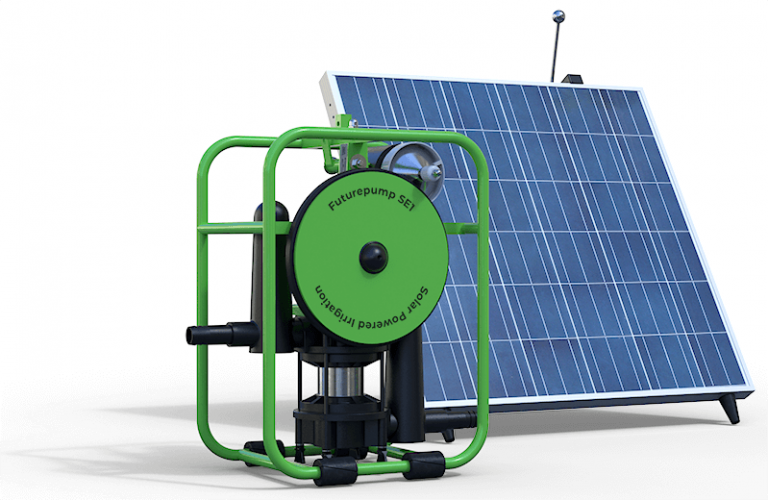

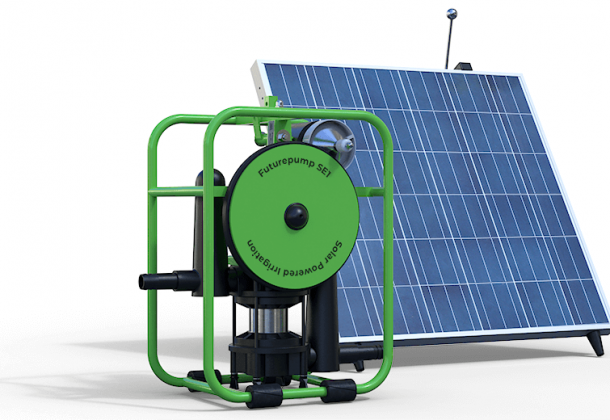

The Futurepump SE1 is a solar powered water pump which can operate with 60-120 W and 30-36 V. The pump weighs approximately 15.5 kg, with dimensions of 330 x 240 x 470 mm (L x W x H). It also comes supplied with a 8 m flexible inlet or suction pipe of 25 mm in diameter. The box comes together with spare parts and tools for installation, with up to 10 years of warranty. The solar pump (Futurepump SE1) is not only suitable for farm irrigation (direct irrigation using hosepipe), it is also compatible with sprinklers, drips and overhead tanks.

Product Schematics

Technical Support

Technical support is provided to clients upon purchase by registering on the company's portal to benefit from continuous support or assistance concerning the product.

Replacement Components

The package comes with spare parts, however it is possible to receive additional support from the company pertaining to replacing certain parts.

Lifecycle

10 years warranty

Manufacturer Specified Performance Parameters

The manufacturer aims to reduce fuel costs and time for farmers, and increase productivity.

Vetted Performance Status

Field tests were conducted by Kijani Testing Limited. The product is produced by Futurepump (India) Pvt Ltd using ISO 9001:2015-certified quality management system.

Safety

No known safety hazards are related to this product.

Complementary Technical Systems

The product is compatible with sprinklers, hosepipes, overhead tanks and solar panels; some of which could be purchased directly through Futurepump.

Academic Research and References

None

Compliance with regulations

The manufacturer uses ISO 9001:2015-certified quality management system.

Other Information

Youtube video explaining the installation of the equipment.
