Home Mate H1/H1G

Upcoming Update

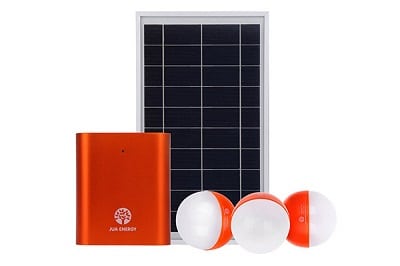

Solar home system with three lamps, a solar panel and a controller.

Tested By
  • Lighting Global
Content Partners
Unknown

Author

Product Description

Home Mate H1/H1G is a solar home system designed for rural areas with electricity shortage or without grid coverage. A PV panel and control enables mobile charging capabilities and LED lamp functionality.

Target SDGs

SDG 7: Affordable and Clean Energy

SDG 8: Decent Work and Economic Growth

Market Suggested Retail Price

$120.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Distributed through online retailer, Jumia.

Manufacturing/Building Method

Mass produced in China.

Intellectural Property Type

Trademark

User Provision Model

Available from online retailers.

Distributions to Date Status

Unknown

Description of power outputs

1 USB

Description of light points

3 LEDs

Total lighting service (lumen-hours per solar-day)

2,400 lumen-hours per solar-day

Peak power rating (Wp)

6.7 Wp

Battery capacity (kWh; mAh)

9,600 mAh

Nominal battery voltage (V)

3.2 V

Battery type

Lithium Iron Phosphate

User replaceable battery (yes/no)

No

Remote system diagnostics (yes/no)

Yes

Payment structure

Pay-as-you-go

Mobile service required (yes/no)

Yes

Design Specifications

Weight: 3.05 kg Colour Characteristics: CRI 81 CCT "Cool" (3000 - 5000 K) Solar PV Module: 6.7 Polycrystalline Silicon Battery: 3.2V, 9600mAh, 30Wh Operating Temperature: 0 - 45°C

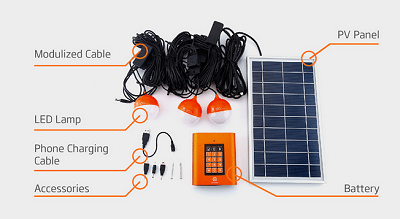

Product Schematics

Technical Support

Available from manufacturer.

Replacement Components

Available from manufacturer.

Lifecycle

Battery has a lifespan of 3 years at 2000 cycles. LED lamps have a lifespan of 50000 hours. Solar PV module has a lifespan of 10 years.

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

Lighting Global has vetted the following performance parameters; 1. Truth in Advertising 2. Lumen Maintenance 3. AC-DC Charger Safety 4. Battery Composition, Battery Protection, Battery Durability. 5. Physical Ingress Protection 6. Water Ingress Protection 7. Drop Test 8. Soldering and Electronics Workmanship 9. Mechanical Durability 10. Minimum Warranty Terms 11. Performance Reporting

Safety

Follow proper electrical installation and control guidelines.

Complementary Technical Systems

None

Academic Research and References

No academic references.

IEC TS 62257-9-5:2018 | IEC Webstore. n.d. webstore.iec.ch.

IEC TC 82 Dashboard: Solar photovoltaic energy systems. n.d. www.iec.ch.

Energy Savers – Buy Energy Saving Bulbs Online. n.d. Jumia Kenya.

About Us | Jua Energy. n.d. www.juaenergy.com.

Lighting Global. 2018. Solar Home System Kit Quality Standards, Version 2.5. Lighting Global.

Previously Certified Products. n.d. VeraSol.

Compliance with regulations

Home Mate H1 has complied with the Lighting Global Quality Standards, and has been tested according to the Quality Test Method stipulated in the IEC 62257 - 9 -5 Standard.

Evaluation methods

Lighting Global Quality Standards.

Other Information

None
