Product description Brand name and product description

Hand-operated pump for accessing water when the water table depth is out of reach of suction pumps, up to 35m.

Target region(s) Target region for distribution/implementation (listed by country if specified)

Regions in Ethiopia where the water table is too deep to access with other pumps.

A number of rope pumps have been deployed in Bangladesh (dated 2002)

Distributors/implementing organizations Organization(s) distributing/deploying this product directly to communities/individuals?"

iDE manufactures the pumps to be distributed by various businesses serving farmers.

iDE implements their own product as part of the Rural Prosperity Initiative II (RPI-II) program funded by the Bill and Melinda Gates Foundation

Market suggested retail price Price per unit or service price per usage/terms (USD). Subsidies noted.

Pump costs vary based on well depth. The greatest variation of 6-22 meter depth was $66.77-85.86 USD (1400-1800 ETB as of 2008).
IDE aim to keep the combined cost of a hand-drilled borehole and pump to below $167.00 USD (3,500 ETB), including installation. The cost of the pump itself is kept below $100. They are able to do this because they source and negotiate for materials in bulk and the producer buys them from the centralised IDE store.

Competitive landscape Similar products available on the market. May not be a comprehensive listing.

Vergnet Hydropump, U3M, Afridev, India Mark II, Volanta, Tany, Bush Pump, Elephant Pump

SDG targeted United Nations Sustainable Development Goals (SDGs) targeted with this product/application/service

SDG #6: Clean water and sanitation

Target user(s) Target user/consumer base (country, income segment)

Smallholder farmers in need of micro-irrigation technologies

Manufacturing/building method(s) Detail regarding solution production or construction method (instructions, mass production capacity, custom made,etc...)

Individually crafted by local craftsmen/producers

Product Intellectual Property Open source/IP protected (note patent)/trade secret/other?

Open source technology

User Provision Model Where can the product be purchased/acquired by end users?

Product can be acquired if you contact iDE’s micro-finance office located in Addis Ababa

Financing options: subsidy, access to micro-finance, traditional savings schemes, and raising funds from within family assets.

Distribution to date Number of units that have been deployed, downloads or users to date

243 (as of 2011)

Fields marked are sourced values that have been evaluated by the manufacturer or a third party, all others are design specifications.

Approximate discharge (L/min @ specific head)

• 24 at 6m head• 18 at 9m head• 12 at 12m head• 9 at 18m head

Piston nominal diameter (cm)

2.54

Pumping life/water depth (m)

1 - 35

Pump materials

1” I.D.* pipe and washers, PVC guide pipe, Steel Welded Frame, 14" Tire sidewall, Galvanized Sheet Metal Hood

Pump type

Rope pump

Type of well

Hand dug or borehole, max depth of 20m, diameter of <75 mm

Village level operation and maintenance (yes/no)

Yes

Design specifications Component and Operation overview including power, portability, facility requirements, preventative maintenance and user training requirements

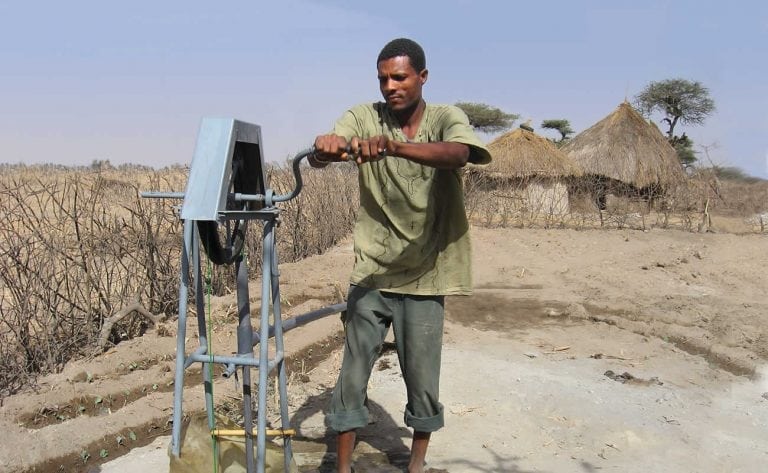

The iDE Rope Pump is a hand-operated option for accessing water when the water table depth is out of reach of suction pumps, up to 35m. Washers of locally-available material are tied some distance apart along a long loop of rope, which is threaded down into a well and back up through a pipe. As the rope leaves the pipe it passes over a wheel and back down into the well. As the wheel is turned, the washers bring water up in a continuous stream through the pipe.

• Construction Materials: Sheet metal, tire, rebar, PVC handle, rope, washers of local material

• Dimensions: 1.3m x 0.6m

• Weight: 15kg

*SYSTEM INCOMPATIBILITIES*

• Pressurized Irrigation Systems

• Well Bores less than 75mm Diameter

Note, IDE does not recommend depths over 22 m because the Rope Pump cannot then be effective lifting water for productive purpose, which is their main objective. However yields are still adequate for domestic purposes.

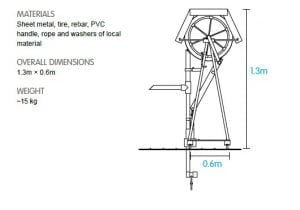

Product schematics Design and assembly illustrations

See image. Product schematics are shown in the iDE catalog, Page 15

Technical support Technical support provided by

Most issues are possible to resolve by basic troubleshooting. Technician support may be needed if issue is complex, however a trained village mechanic should be able to resolve problems.

All of the methods in testing / building a new rope pump are listed in the training manual assistance that iDE provides to a producer/manufacturer.

Replacement components Availability of replacement components (in-country, by order,...)

Rope and washers need periodic replacement. Available in country.

Lifecycle Disposal and warranty

Lifespan information unavailable. Warranty information not specified by iDE. Individual dealers and organizations implementing the pumps may have their own warranty.

Manufacturer specified performance targets Designer / Manufacturer specified targets

Performance targets are noted in the downloadable catalog here

• Daily pumping** to irrigate 200m² (minutes): 70 – 100, 90 – 130, 140 – 200, 180 – 270

Approximate discharge (m^3 /hour at __ head)

• 24 L/min at 6m head

• 18 L/min at 9m head

• 12 L/min at 12m head

• 9 L/min at 18m head

*Assumes single adult focused on the task* **Daily pumping time will vary based on quality of well, strength of operator/s, soil / crop type, irrigation method, and environmental conditions.

• For depth to water up to 18m, the rope pump can be used for irrigating small plots in addition to other domestic water uses

• For depth to water beyond 18m, the rope pump is best suited for domestic use. Irrigation would be limited to dense agriculture like seedling nurseries

Vetted performance Findings of manufacturer evaluations or independent testing centers

Unknown

Testing organizations Independent lab, academic research centers, etc.

iDE conducted testing

Safety Potential hazards / risks related to operation of this product

Water quality is still of concern, because of a lack of data for all rope pumps. See report Section 3.6

Complementary technical systems Performance of this product is improved with another technology (eg. Cookstoves and Wind-blocking skirts)

Water output is not pressurized: water will need to be transported to the field, or be elevated to use drip or sprinkle irrigation.

Academic research Academic research related to the product (e.g. published papers in peer-reviewed journals)

Harvey, P. A., Drouin, T., The case for the rope-pump in Africa: A comparative performance analysis. Journal of Water and Health. 2006;4(4):499-510

Smulders, P.T., Rijs, R.P.P., A hydrodynamic model of the rope pump [Internet]. Eindhoven, The Netherlands: Eindhoven University of Technology; 2006 Sep 23 [cited 2015 Aug 6].

Alberts, J.H., The rope pump – an example of technology transfer. Waterlines. 2012 Dec 04;22(3).

Goret, A.C., Albers, J.H., Gago, J.F., Sandifor, P., A randomized trial of the impact of rope-pumps on water quality. The Journal of Tropical Medicine and Hygiene. 1995;98(4):247-255.

Turner, B., Small-scale irrigation in developing countries. Land Use Policy. 1994 Oct;11(4):251-261.

Compliance with regulations Product certifications and standards referenced by designer/manufacturer

N/A

Evaluation methods Evaluation methods/protocols/guidelines referenced by designer or manufacturer.

Field trials.

Other information

This working paper developed by the Research-inspired Policy and Practice Learning in Ethiopia and the Nile region (RiPPLE) Research Programme Consortium provides a comprehensive analysis of the scaling efforts for rope pumps including IDE’s. The paper notes that the lack of demand for pumps in most areas, and the lack of capacity to respond to demand where it has developed are slowing down any efforts to go to scale. If rope pumps are to play a significant part in Universal Access Plan (UAP) coverage it will need a concerted effort by the Bureau of Water Resources to have them recognised as a valuable technology by both sector professionals and households, and consequently included in their budgets. Technical guidelines are well-developed, but those for introducing and marketing rope pumps are not.
