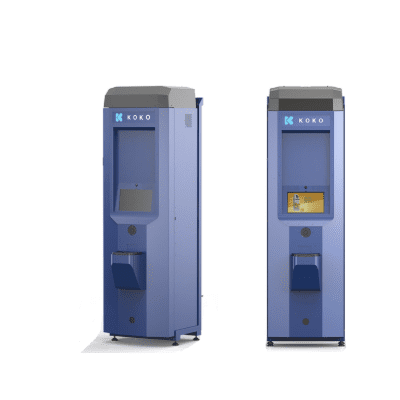

The KOKOpoint fuel dispenserĀ is an automatic fuel dispenser system enabling cashless access to clean bio-ethanol cooking fuel.
KOKOpoint fuel dispenser is a fuel dispensing machine connected to a cloud, KOKO Cloud. This product uses a Pay-As-You-Go model for cooking fuel, where consumers and vendors can refill the provided fuel canisters and pay for the fuel from a virtual wallet. The fuel dispensed is ethanol and is meant to be used for cooking purposes.
Distributors / Implementing Organizations
The product is available across Kenya, including over 600 retailers in Nairobi.
Manufacturing/Building Method
KOKO point fuel dispensers are built from several component parts which are assembled at the technology production facility in Nairobi.
Intellectural Property Type
Patent Protected
User Provision Model
KOKOpoints have been deployed across the city of Nairobi inside neighborhood shops and convenience stores. Shopkeepers become KOKO AgentsĀ with KOKOpoint machines installed in the shop under a franchise agreement. A new customer orders a Bio-ethanol stove from a local KOKOpoint distributor or via mobile.Ā KOKOās dispenser-based distributionĀ model allows customers to fill their reusable smart-valve canister with as little as 350 ml of fuel.
Distributions to Date Status
As of 2018 aboutĀ 1,000 units have been deployed in 350 locations across Kenya.
Material composition
Bio-ethanol
Higher heating value (MJ/kg)
26.8 MJ/kg
Types of primary pollutants
Carbon dioxide
Design Specifications
The KOKOpoint fuel dispenser uses a Pelton wheel turbine flowmeter from Titan Enterprises, which rotates on sapphire bearings. It contains magnets that are detected through its chamber wall by a Hall effect detector. The turbine's output is connected directly to the machines electronic display. The turbine is made from non-metallic wetted components and has a flow rate of up to 10 L/min while dispensing fuel.
Technical Support
KOKO Networks are available at 700 shops across Nairobi. KOKO Agents also help in providing support.
Replacement Components
Unknown
Lifecycle
Unknown
Manufacturer Specified Performance Parameters
Unknown
Vetted Performance Status
Unknown
Safety
Unknown
Complementary Technical Systems
Bio-ethanol fuel is sourced from domestic and global suppliers which are then transported by trucks and stored in facilities provided byĀ Vivo Energy. KOKO cookers are developed and distributed to the customers for utilization of the KOKO fuel.
Academic Research and References
Pelizan, L., Giordano P., and Lickteig, L., 2019,Ā Promoting Access to Clean Cooking Fuels in Sub-Saharan Africa Through Entrepreneurial Initiatives: Challenges and Strategies, IESE Business School, University of Navarra.
These papers present general information about bioethanol:
Dennananth, E.D., Iyuke, S. and Rumbold, K., 2012,Ā The Bioethanol industry in Sub-Saharan Africa: History, Challenges and Prospects, Journal of Biomedicine and Biotechnology.
Ibeto, C.N., Ofoefule, A.U. and Agbo, K.E., 2011,Ā A Global Overview of Biomass Potentials for Bioethanol Production: A Renewable Alternative Fuel, Trends in Applied Science Research, 6(5), pp. 410-425.
Compliance with regulations
Unknown
Other Information
None
