Envirofit M-5000
Read SolutionImplemented by
Envirofit International
Updated on January 9, 2024
·Created on June 18, 2014
Designed by Envirofit, the M-3300 is a lightweight, rocket-type cookstove for cooking with wood.

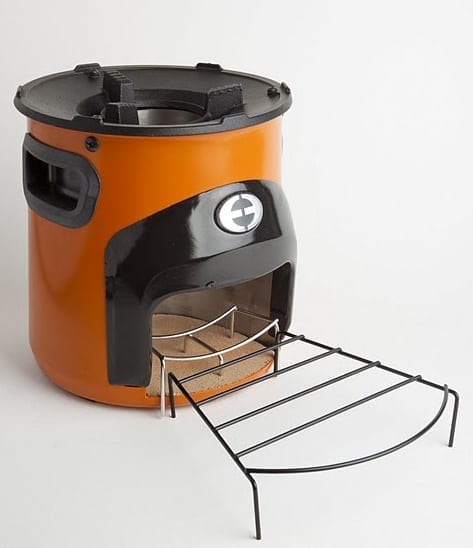

Envirofit M-3300 is a lightweight (3.5 kgs), portable, single-pot, wood-burning rocket-type cookstove. It reduces fuel consumption by up to 60% and harmful emissions by 80%.
Envirofit has regional headquarters in East Africa, West Africa, Asia, and Latin America that offer the local production and distribution of clean cookstoves.
Target SDGs
SDG 7: Affordable and Clean Energy
SDG 3: Good Health and Well-Being
Market Suggested Retail Price
$115.00
Target Users (Target Impact Group)
Household
Distributors / Implementing Organizations
Evans Outdoor Store (U.S. domestic distribution company) Interview with representative
Competitive Landscape
Direct competitors include Eco Rocket Stove, IES 60 L Cookstove, Kuniokoa Stove, Zama Zama, Gogle Energy Saving Stove, Turbococina, Prakti Single Burner Wood Stove, InStove 60-L Cookstove, HoPE LVB Energy Efficient Stoves, EzyStove Wood Cookstove, Greenway Smart Stove, Envirofit M-5000, EcoZoom Jet, BioLite HomeStove, Berkeley-Darfur Stove V.14, and EcoZoom Dura.
Manufacturing/Building Method
Mass produced in China but, for 2018 and according to the Global Alliance for Clean Cookstove, its no longer manufactured.
Intellectural Property Type
Patent
User Provision Model
Only available for purchase in U.S. through evansoutdoorstore.com (No longer available on Envirofit website) Interview with representative
Distributions to Date Status
The exact distribution number of the Envirofit M-5000 is unknown, however, and for 2018, Envirofit has sold more than 1 million stoves across 45 countries.
Fuel type
Biomass, wood
Chimney (yes/no)
No
Forced or passive
Passive
Pot type
Flat or round bottom
Pot capacity (L)
Unknown
Thermal efficiency (%)
36.2% – 38.0%
PM emissions (g/MJ delivered to pot)
0.25 – 0.50 g/MJ
CO emissions (g/MJ delivered to pot)
3.10 – 5.09 g/MJ
Time to boil (min/L)
18 – 32 min per 5 L
Design Specifications
Design specifications include the stove body, a single-pot combustion chamber at the bottom and two handles. Envirofit’s designs were developed using advanced computational fluid dynamics and robust emissions and durability testing to optimize the stove geometry and materials. It is portable as it weighs 3.5 kgs and its dimensions are (height x width x depth): 28.8 x 26.1 x 27.5 cm.
Technical Support
Replacement Components
Unknown.
Lifecycle
Lifecycle is unknown.
Manufacturer Specified Performance Parameters
Vetted Performance Status

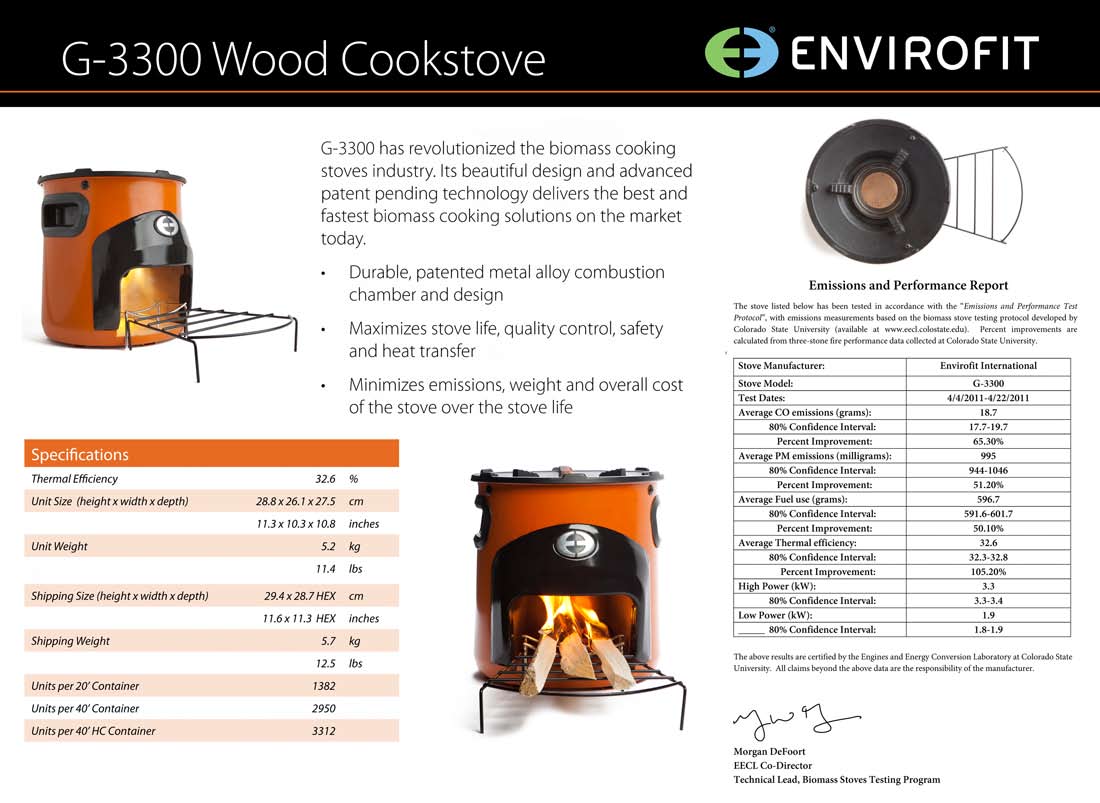

Testing results for the G-3300 are summarized and can be downloaded from the Clean Cooking Catalog.
Safety

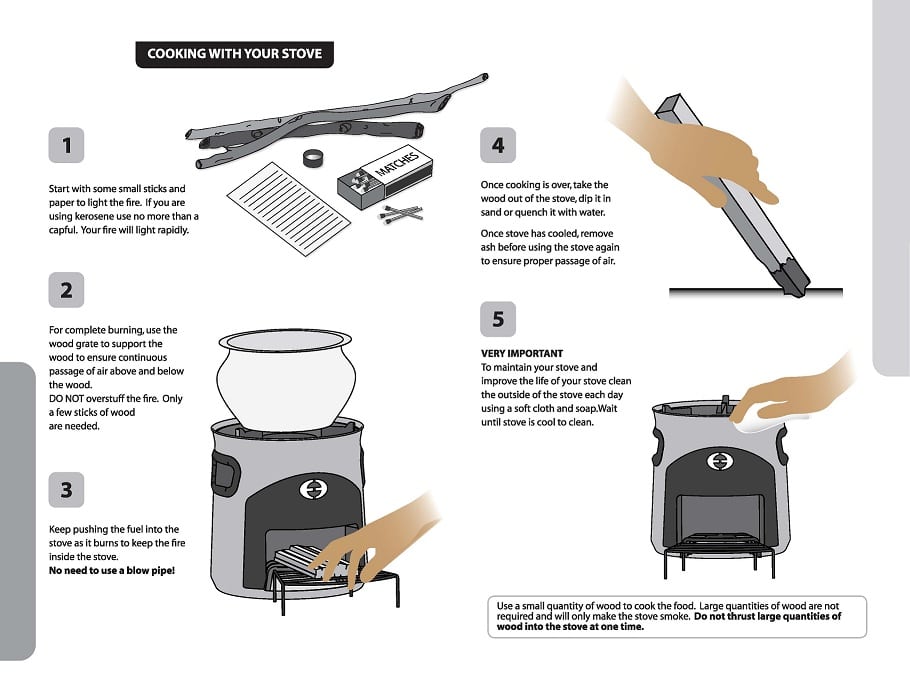

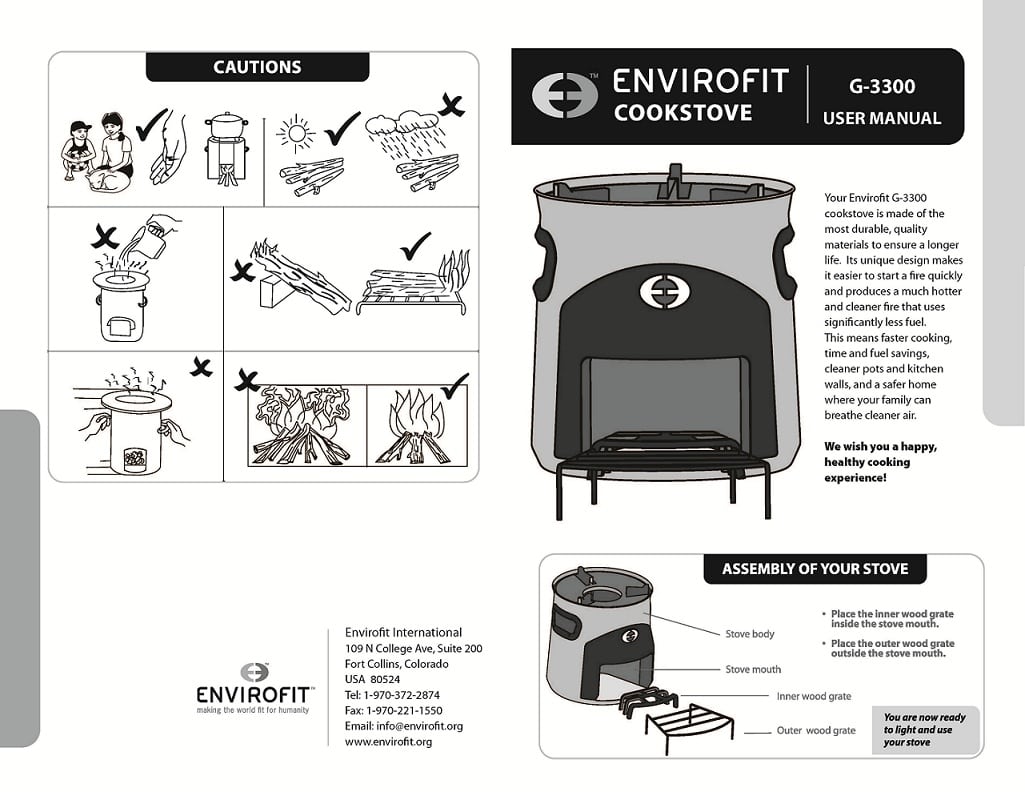

Guidelines provided by Envirofit must be followed when manipulating the stove to avoid burns and spill-overs. Furthermore, keep all flammable items away from the surrounding area of the stove, and do not enclose the area you are cooking within; proper ventilation is always required. Do not touch the body of the stove while in use.
Complementary Technical Systems
Using a pot skirt will increase the efficiency of the cookstove. A G3300 pot skirt is available on Evans Outdoor Store's website.
Academic Research and References
Adkins, E., et al (2010). Field testing and survey evaluation of household biomass cookstoves in rural sub-Saharan Africa. Energy for Sustainable Development. 2010;14 (3): 172–85.
Clean Cooking Alliance – Clean Cooking Catalog: Results Report – Envirofit G-3300. n.d. www.catalag.cleancookstoves.org. Global Alliance for Clean Cookstoves.
Patents. n.d. Envirofit.
CSR Programs | off Grid Appliances | Clean Cooking Stoves. n.d. Envirofit.
Envirofit’s Original Rocket Stove Design. n.d. Evan’s Outdoor Store.
Contact. n.d. Envirofit.
Envirofit G-3300 Cookstove Training Video. 2009. www.youtube.com.
Envirofit. n.d. Clean Cooking Alliance.
Media. n.d. Envirofit.
Compliance with regulations
All of the Envirofit cookstove products meet the Global Alliance Tier 2 level standard or higher. Envirofit is also a Certified B Corporation.
Evaluation methods
All Envirofit products undergo the Envirofit Quality Testing Services (EQTS) to ensure high quality. Envirofit’s designs were developed using advanced computational fluid dynamics and robust emissions and durability testing to optimize the stove geometry and materials.
Other Information
Envirofit has won several awards: • 2013 Energy and The Environment Innovators of the Year Award by the Economist • 2013 Spark Award Envirofit Institutional Cookstove Gold Award • 2011 Special Achievement Award: Partnership for Clean Indoor Air Other various awards, available here.
