EcoZoom Jet

Upcoming Update

Designed by EcoZoom, Jet is a Rocket-type stove for cooking with wood, charcoal and biomass briquettes.

Developed By
  1. BioLite
  2. EcoZoom
Tested By
  • University of Nairobi
Content Partners
  1. Global Alliance for Clean Cookstoves

Author

Product Description

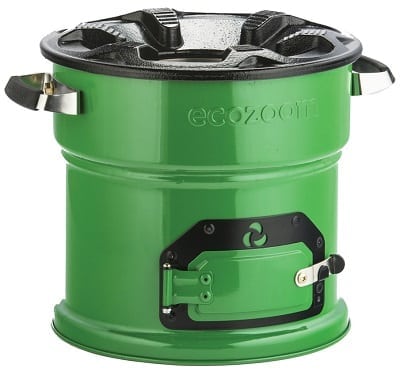

Distributed and designed by EcoZoom, Jet is a lightweight and rocket-type cookstove specifically designed for a single pot and for burning wood and solid biomass fuels. It has a refractory metal combustion chamber, ceramic insulation, universal cast iron stovetop and steel handles with silicone grips for easy movement and transportation and cool touch technology. Introduction video to the EcoZoom Jet stove available.



Target SDGs

SDG 7: Affordable and Clean Energy

SDG 3: Good Health and Well-Being

Market Suggested Retail Price

$132.50

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

EcoZoom has projects going in several countries around the globe. They work with partners on scales ranging from single villages to entire countries. Living Goods also distributes this product.

Manufacturing/Building Method

Mass customized by EcoZoom in China. They produce over 60,000 stoves/month, including EcoZoom Dura and Plancha models.

Intellectural Property Type

Trade Secret

User Provision Model

Online purchase on Amazon and The Level Market.

Distributions to Date Status

The exact number of Jet stoves distribution to date is unknown, however, EcoZoom has a production volume capacity of 60,000 stoves/month (considering all commercialized models) that can be scaled to fit any project.

Fuel type

Biomass, wood

Chimney (yes/no)

No

Forced or passive

Passive

Pot type

Flat or round bottom

Pot capacity (L)

Unknown

Thermal efficiency (%)

42%

PM emissions (g/MJ delivered to pot)

Unknown

CO emissions (g/MJ delivered to pot)

9.6 g/MJ

Time to boil (min/L)

27 min per 5 L

Design Specifications

Design specifications include a refractory-metal chamber, a lightweight and ceramic thermal insulation, a stovetop with three-pronged universal cast iron, stove body with a reinforced metal door with silicone grip on a latch and stainless-steel and silicone handles for easy moving and transportation of the stove. It weighs 8 kgs and its dimensions are (LxWxH) 28 x 28 x 26 cm. Further details on design specifications can be found in the product technical sheet (see references.

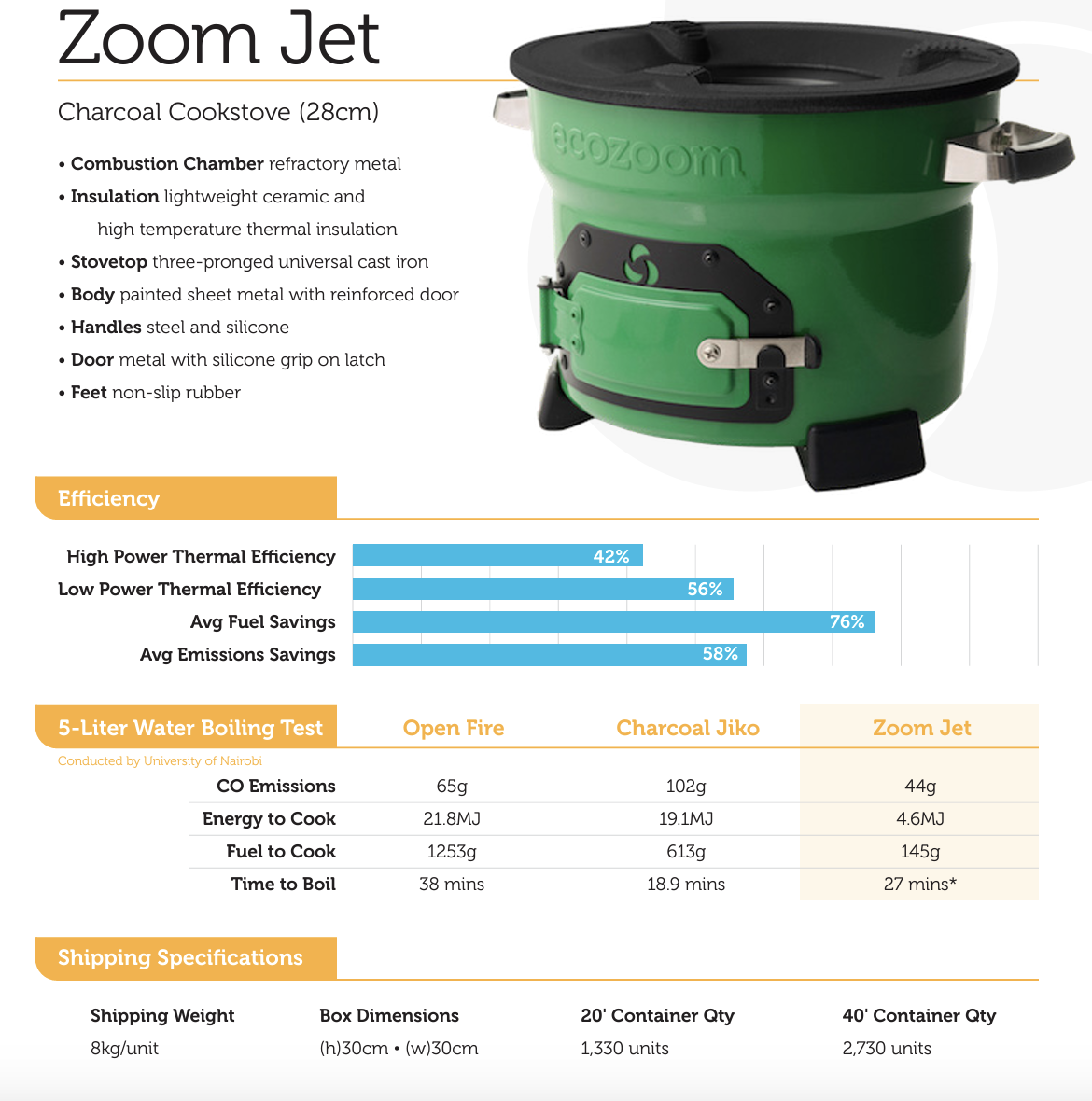

Product Schematics

Technical Support

Provided by the manufacturer.

Replacement Components

Yes. The product is designed to be assembled locally.

Lifecycle

This stove has 1-year warranty including defects in materials and workmanship. Jet stove has a 5-year estimated lifecycle.

Manufacturer Specified Performance Parameters

This product aims to meet the energy demands of families relying on traditional cooking methods in an efficient, durable and sustainable manner. Results from field tests about performance targets show boiling and cooking times to be 20% faster than a typical charcoal jiko.

Vetted Performance Status

The Jet stove has a high power thermal efficiency of 42%, a low power thermal efficiency of 56%, an average fuel savings of 76% and emissions savings of 58%. The complete vetted performance can be seen in the product technical sheet and in the Clean Cooking Catalog.

Safety

Unknown.

Complementary Technical Systems

EcoZoom also commercializes the Zoom Dura with the possibility to add a stove carrier bag.

Academic Research and References

Jetter, J.J., Kariher, P (2009). Solid-fuel household cookstoves: characterization of performance and emissions. Biomass and bioenergy. 2009;33:2294-305

Jetter, J., et al (2012). Pollutant emissions and energy efficiency under controlled conditions for household biomass cookstoves and implications for metrics useful in setting international test standards. Environ. Sci. Technol. 2012;46(19):10827-10834.

Anenberg, S.C., et al (2013). Cleaner cooking solutions to achieve health, climate, and economic co-benefits. Environ. Sci. Technol. 2013;47(9):3944-3952.

EcoZoom Jet Raketenofen – Produkttest. 2017. www.youtube.com.

International Work. n.d. ecozoomstove.com. EcoZoom.

Digital Health | Living Goods. n.d. livinggoods.org.

EcoZoom Jet – Charcoal Fuel. n.d. EcoZoom UK.

Clean Cooking Alliance – Clean Cooking Catalog: Results Report – Zoom Jet. n.d. www.catalag.cleancookstoves.org. Global Alliance for Clean Cookstoves.

EcoZoom Jet Charcoal Rocket Stove : Amazon.co.uk. n.d. www.amazon.co.uk.

Sector Directory: EcoZoom. n.d. Clean Cooking Alliance.

EcoZoom. n.d. Zoom Jet Technical Sheet. ecozoom.com. EcoZoom.

International Standards Organization (ISO). n.d. Home. iso.org. ISO.

Global Alliance for Clean Cookstoves. 2013. Interim Reporting Requirements for IWA Tiers of Performance. cleancooking.org. Global Alliance for Clean Cookstoves.

B Lab. 2015. 120 Businesses Honored as “Best for the World”, Creating Most Overall Positive Social and Environmental Impact. CSR Wire.

Global Alliance for Clean Cookstoves . 2014. The Water Boiling Test (Version 4.2.3): Cookstoves Emissions and Efficiency in a Controlled Laboratory Setting. www.1library.net. Global Alliance for Clean Cookstoves.



Compliance with regulations

Test performance tier rankings using guidelines and standards established by the International Organization for Standardization (ISO)’s International Workshop Agreement (IWA). EcoZoom certified 2015 B Corp Best for the World

Evaluation methods

Ecozoom indicates that they use the standard laboratory test conducted for cookstoves – the 5-liter Water Boiling Test (WBT). The WBT is a laboratory-based test that can be used to measure how efficiently a stove uses fuel to heat water in a cooking pot and the quantity of emissions produced while cooking. This test can be used to evaluate stove changes during development, compare the effectiveness of different designs, select the most promising products for field trials, and ensure that manufactured stoves meet intended performance. Ecozoom also follows a 5-step design process before introducing stoves into developing markets to ensure adoption. EcoZoom conducted field testing of the Jet in Kenya for 15 months.

Other Information

EcoZoom Jet won Gold in 2014 International Design Excellence Awards (IDEA®) by a panel of 24 international design experts over 2,000 other entries.
