EnGo Tower

Upcoming Update

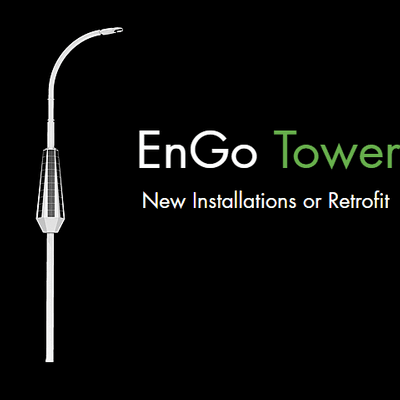

EnGo tower is a solar street light that also collects environmental data on air quality, humidity, temperature, and noise levels.

Developed By
  1. EnGo Planet
Content Partners
Unknown

Author

Product Description

The EnGo smart solar street light consists of 6 slim solar panels that are fixed tightly and vertically on a hexagon frame. It ensures 50% of solar panel will face sunshine at any time of the day. The vertically-mounted solar panels ensure that minimal dust or snow accumulates on the surfaces. The tower is equipped with Remote Management software and smart sensors that provide real-time monitoring and data collection.

Target SDGs

SDG 7: Affordable and Clean Energy

Target Users (Target Impact Group)

Community

Distributors / Implementing Organizations

Unknown

Competitive Landscape

Manufacturing/Building Method

Unknown

Intellectural Property Type

Select Type

User Provision Model

Unknown

Distributions to Date Status

Unknown

Lamp type

LED

Light output (lumens)

Unknown

Number of light points

1

Solar panel description

6 slim solar panels are fixed tightly on a hexagon frame. It ensures 50% of a solar panel will have face sunshine at any time of the day. Solar cell efficiency is up to 21.2%.

Peak power rating (Wp)

Large Tower: 6 x 50 Wp. Total: 300 Wp.

Small Tower: 6 x 40 Wp. Total: 240 Wp.

Battery type

Rechargeable Lithium-ion iron phosphate battery (LiFePO4)

Battery capacity (kWh; mAh)

3 variants:
30,000 mAh; 60,0000 mAh; 100,000 mAh.

Grid compatibility (yes/no)

Yes

Tower height (m)

Unknown

Design Specifications

EnGo towers have 6 solar panels tightly fitted and in an almost vertical position, with a power rating of 40Wp or 50Wp per panel depending on the size. The off-vertical cluster arrangement of the panels makes them less vulnerable to high-winds, less likely to accumulated dust and grime, and easier to clean. The LED lights range from 30W power rating to 100W. A rechargeable battery developed by EnGo is employed along with an MPPT Controller.

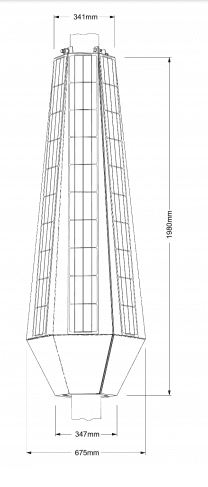

Product Schematics

Technical Support

EnGo Planet can be contacted for inquires and support.

Replacement Components

Replaceable components include the battery and the lights.

Lifecycle

80,000 hrs

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

Unknown

Safety

User must take appropriate precautions when using an electrical device.

Complementary Technical Systems

None

Academic Research and References

Mokhtar, A., Mohamed, O., Emad, A., Jaber, A. A., Abdelali, E., 2011, Design and development of energy-free solar street LED light system, IEEE PES conference on Innovative Smart Grid Technologies – Middle East (ISGT Middle East)

Marco, A. D. C., Guilherme, H. C., Anderson, S. D., Luciano, S., José, R. P., 2009, A high efficiency autonomous street lighting system based on solar energy and LEDs, Power Electronics Conference

Compliance with regulations

Unknown

Evaluation methods

Unknown

Other Information
