Laveo Dry Flush Toilet

Upcoming Update

The Laveo dry-flush toilet is a water-free toilet which bags and seals waste away for easy disposal.

Developed By
  1. Dry Flush
Tested By
  • Dry Flush
Content Partners
Unknown

Author

Product Description

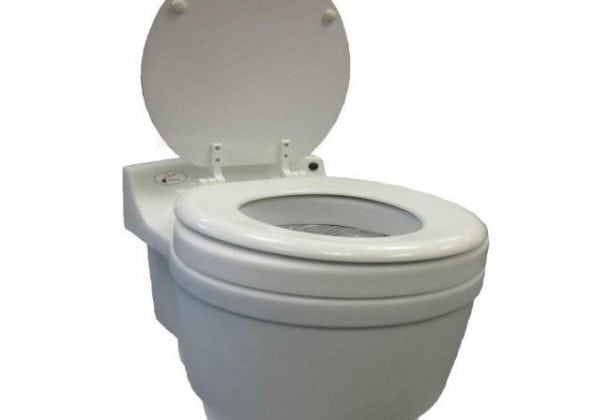

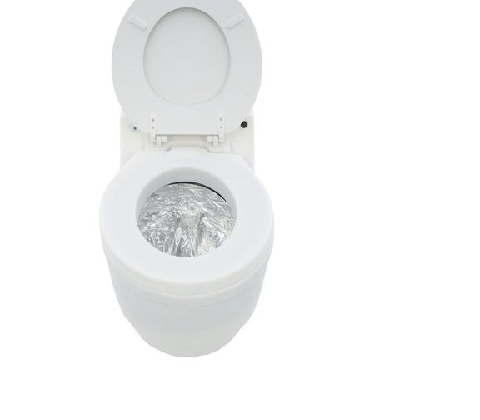

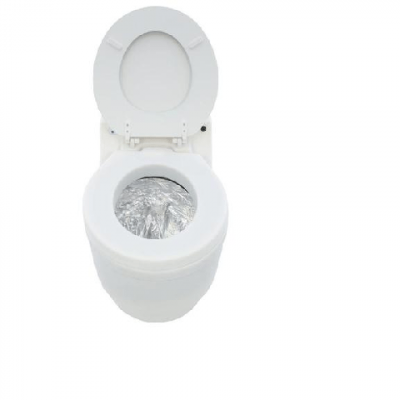

The Laveo dry-flush toilet employs a continuous bagging system to seal waste odor-free. Each cartridge of bags allows for 17 consecutive “flushes” and the system is battery-operated.

Target SDGs

SDG 6: Clean Water and Sanitation

Market Suggested Retail Price

$895.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Laveo is produced by Dry-Flush and sold by Laveo™ by Dry Flush directly and their dealership partners The Home Depot, Ocean Link, AMERiCan Camper Shells, Happier Camper, Rescue+Supply, Shop Tiny Houses and American Surplus, Ice Castle Fish Houses.

Manufacturing/Building Method

The toilets are manufactured in the United States using high-density polyethylene.

Intellectural Property Type

Trademark

User Provision Model

Users can obtain the product from Dry-Flush directly through online ordering, or from any of its listed national distributors including: The Home Depot, Ocean Link, AMERiCan Camper Shells, Happier Camper, Rescue+Supply, Shop Tiny Houses, American Surplus, and Ice Castle Fish Houses.

Distributions to Date Status

Unknown

Toilet type

Container-based service

Evacuation method

Dry

Storage conditions

Container storage

Capacity (L)

Unknown

Time until emptying

17 uses per replaceable cartridge

Design Specifications

The Laveo toilet was designed over several years of research and prototyping to fill the need for technology in areas where water and electricity access is limited. The toilet is portable (with the option to mount it to the floor), waterless, and chemical-free. The toilet is equipped with a flush button and includes a rechargeable battery pack that requires 12 V DC, but an optional AC adapter can be purchased. The toilet uses a patented waste bagging system to prevent odors and seal waste safely. It is designed to accommodate 17 uses before requiring a refill cartridge. The toilet is capable of holding up to 550 lbs of waste. The structure is made of high-density polyethylene and is considered lightweight (27 lbs). The product dimensions are 16 × 21 × 23 in.

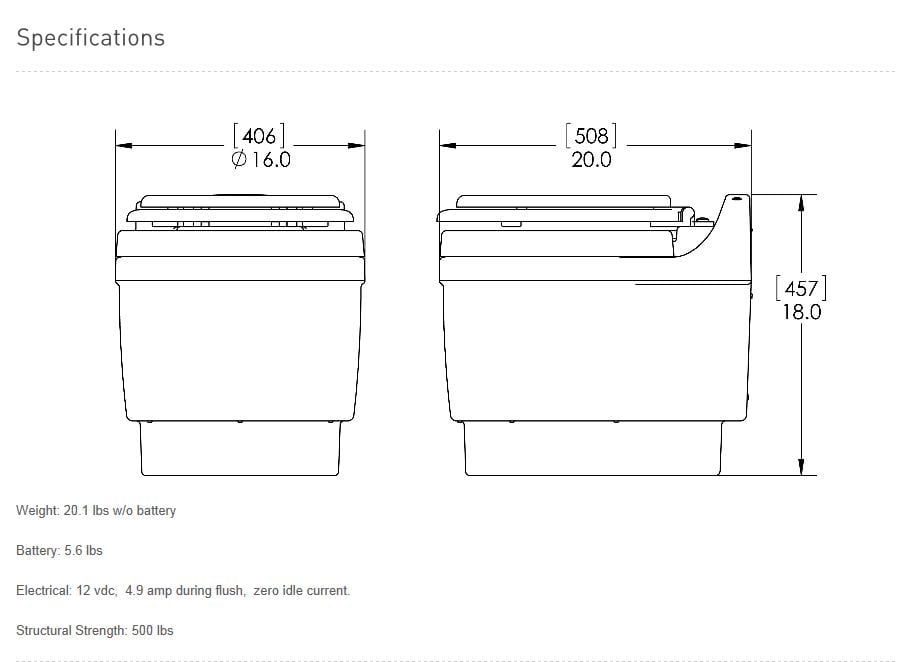

Product Schematics

Technical Support

The manufacturer provides technical support for the first year for the toilet, and six months for components.

Replacement Components

Replacement components (cartridges of bags, batteries) are available from the manufacturer.

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

Designer specified performance targets include the system being chemical-free, water-less, easy to clean, and overall better for the environment than traditional portable toilets.

Vetted Performance Status

No certifications listed.

Safety

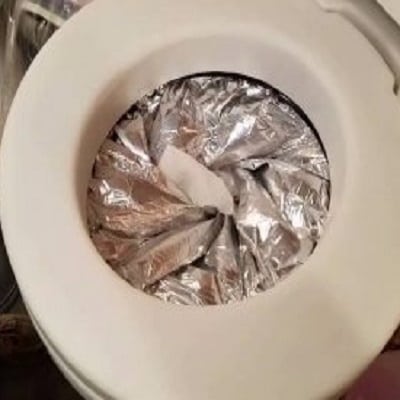

Through sealing the waste into bags after each flush, the Laveo toilet ensures that users do not have contact with the unhygienic waste either during use or during waste disposal.

Complementary Technical Systems

The system runs on electricity, either powered by a battery or using an AC adapter. In addition the bags are continually replaced in cartridges.

Academic Research and References

Goal 6. Available: https://sdgs.un.org/goals/goal6

Compliance with regulations

None

Evaluation methods

Manufacturer cites portability, visual inspection, ease of set-up, and effectiveness of waste disposal as evaluation criteria.

Other Information

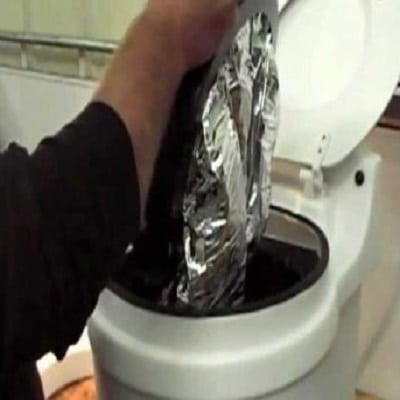

The manufacturer shows how to replace dry-flush cartridges in this video. Additional details can be found in the User’s Manual. Bagging system patent. Dealership partners: The Home Depot, Ocean Link, AMERiCan Camper Shells, Happier Camper, Rescue+Supply, Shop Tiny Houses, American Surplus, and Ice Castle Fish Houses.
