Solar Shelter Kit

Upcoming Update

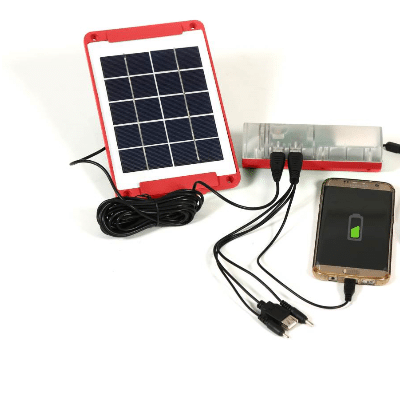

Solar Smart All-In-One Solar Shelter Kit comprises of a solar panel, lithium-ion battery, one light point and a mobile phone charger.

Developed By
  1. NRSRelief
Tested By
  • Lighting Global
Content Partners


Product Description

Solar Smart All-In-One/Solar Shelter Kit is a product manufactured by H. Sheikh Noor-un-Din & Sons (HSNDS) in Pakistan for NRS Relief. This product has a monocrystalline silicon 2.3 W solar PV module panel, easily replacible 2300 mAh capacity 3.7 nominal voltage lithium-ion battery, one LED on the front with a semi-transparent cover (Torch) and four LEDs on the side with a frosted cover (Room Light) Lamp.

The product also features a 5 m multi USB mobile phone charger cable suitable for most smart phones.


Target SDGs

SDG 7: Affordable and Clean Energy

Market Suggested Retail Price


Target Users (Target Impact Group)


Distributors / Implementing Organizations

Competitive Landscape

Direct competitors include Azuri 10W Quad Solar Home System, Solectric 30, and Bright Box 2.

Manufacturing/Building Method

Manufactured by H. Sheikh Noor-ud-Din & Sons (HSNDS) for NRS Relief in Pakistan.

Intellectural Property Type


User Provision Model

Distributed by NRS Relief.

Distributions to Date Status


Description of power outputs

2 AC outlets and 1 USB

Description of light points


Total lighting service (lumen-hours per solar-day)

Room Light High – 8 lumen-hours per solar-day

Torch – 13 lumen-hours per solar-day

Peak power rating (Wp)

2.3 Wp

Battery capacity (kWh; mAh)

2300 mAh

Nominal battery voltage (V)

3.7 V

Battery type


User replaceable battery (yes/no)


Remote system diagnostics (yes/no)


Payment structure


Mobile service required (yes/no)


Design Specifications

Monocrystalline silicon 2.3 W solar PV module panel Lithium-ion 2300 mAh 3.7 V battery LED Lamp on the front with a semi-transparent cover (Torch mode) and four LEDs on the side with a frosted cover (Room Light mode) CRI 79 CCT 5000-7000K as the color characteristics wide and narrow light distribution type of room light and torch respectively. The lumens for room light high is 140 and 69 lumens for the torch. This product includes a 5 m multi USB mobile phone charging cable, a 3 LED indicator that shows both battery status and charging status, offers 3 lighting settings: high, medium and low.

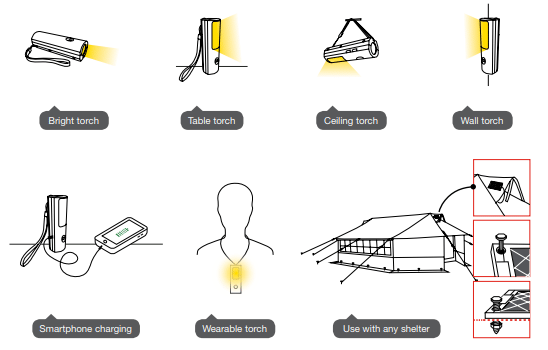

Product Schematics

Technical Support

Available from the manufacturer.

Replacement Components

Available from the manufacturer.


Battery has a lifecycle of 3 years or > 800 cycles.

Manufacturer Specified Performance Parameters

The manufacturer aims to meet these targets:

  • Quick and appropriate deployment during humanitarian disasters
  • Torch lasts up to 13 hours and lamp up to 55 hours
  • Durable, waterproof, and intuitive interface

Vetted Performance Status

The product is vetted by Lighting Global Quality Assurance Program. This includes:

  1. Lumen Maintenance
  2. AC-DC Charger Safety
  3. Battery Composition.
  4. Battery Protection
  5. Battery Durability.
  6. Drop test
  7. Mechanical Durability
  8. Minimum Warranty terms
  9. Performance Reporting


Follow proper electrical installation and control guidelines.

Complementary Technical Systems


Academic Research and References

No academic references.

Previously Certified Products. n.d. VeraSol.

Our Story | HSNDS. n.d. Accessed January 14, 2024.

Our Office. n.d. NRS Relief.

NRS Relief. n.d. Solar Shelter Kit Specifications Sheet. www.nrsrelief.com. NRS Relief.

Lighting Global. 2018. Solar Home System Kit Quality Standards, Version 2.5. Lighting Global.

IEC TS 62257-9-5:2018 | IEC Webstore. n.d. webstore.iec.ch.

Compliance with regulations

This product has complied with the Lighting Global Quality Standards, and has been tested according to the Quality Test Method stipulated in the IEC 62257 – 9 -5 Standard.

Evaluation methods

Lighting Global Quality Standard

Other Information
