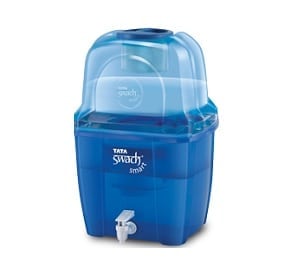

TATA Swach Cristella Plus Water Purifier
Read SolutionImplemented by
TATA Swach
Updated on January 5, 2024
·Created on June 3, 2014
A low-cost water purifier for households in India.
The TATA Swach Smart Nanotech Water Purifier is a household, gravity driven water purifier that uses the Silver Nano-Technology to remove bacteria and viruses from drinking water.
Target SDGs
SDG 6: Clean Water and Sanitation
SDG 3: Good Health and Well-Being
Market Suggested Retail Price
$20.46
Target Users (Target Impact Group)
Household
Distributors / Implementing Organizations
TATA sells this product directly through their website. Additional distributors include Essmart and Amazon India.
Manufacturing/Building Method
Mass produced
Intellectural Property Type
Patent
User Provision Model
Users can buy the product online on Tata and Amazon India’s websites. Users can also purchase the units in-person from Essmart’s retail shops. According to a TATA disclaimer: TATA does not take responsibility of the product performance in case of “unreasonably discounted Tata Swach products” sold by sources not authorised by TATA including e-commerce websites and portals. Authorised service providers include Olympia distributor on Amazon.com and WS retail on Flipkart.com.
Distributions to Date Status
Unknown
Target use case
Household use
Manufacturer-specified flow rate (L/hr)
3-4 L/hr
Bacteria reduction
4 log
Type of membrane filtration
Unknown
Virus reduction
Unknown
Protozoa reduction
Unknown
Heavy metals and/or arsenic reduction
Unknown
Maximum recommended influent turbidity level (NTU)
Unknown
Effluent turbidity levels (NTU)
Unknown
Material of construction
Food grade, non-toxic plastic. TATA Swach bulb purification media is comprised of activated silica coated with silver nanoparticles.
Safe water storage capacity (L)
15 L
Manufacturer-specified lifetime volume (L)
1500 L
Design Specifications

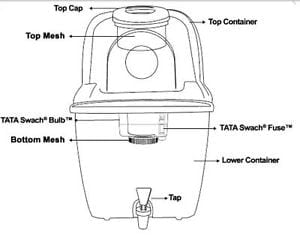

The TATA Swach filter is comprised of two parts. The upper part contains reservoir where the untreated water enters and is pre-filtered via the top mesh – TATA Swach MF membrane – which is a micro-mesh systems that remove the visible impurities. The lower middle portion has the TATA Swach Bulb to which the cartridge can be attached. The primary filtering component of the Tata Swach Smart water-purifier is the TATA Swach Bulb. The TATA Swach bulb is densely compacted with processed rice husk ash impregnated with activated silica coated with silver nanoparticles that destroys harmful bacteria and viruses from water. Another reservoir is placed at the lower end, which collects clear water. The whole system acts on gravity and electricity or constant flow of water is not required. The upper chamber can be easily cleaned. Depending on the quality of water about 1500 Litres can be filtered after which the cartridge can be replaced. Once purifying capacity is exhausted the Swach bulb fuses and prevents water from passing. The lower storage container has a maximum capacity of 15 Litres.The flow rate of the filter is 3-4 litres per hour. Total weight 1.7 kgs (3.75 lbs)
Technical Support
Minimal training required. Support is provided by TATA.
Replacement Components
The Bulb must be replaced at the end of its life and may be purchased online. The following components are available at local retailers: Top Mesh, Top Container, Bottom Container, Tap, Adapter, Bottom Mesh.
Lifecycle
1500 L. No warranty information found.
Manufacturer Specified Performance Parameters
Silver nanotechnology that destroys harmful bacteria and viruses to yield safe drinking water. The filter cartridge lifetime of 1500 L.
Vetted Performance Status
It is stated that the product has been tested across reputed laboratories in India, the UK and the Netherlands as per US-EPA standards. However, no documentation sources any performance finding available at this time. The Comprehensive Initiative on Technology Evaluation (CITE) at MIT evaluated household water filters available on the market in Ahmedabad, India in summer 2014. Full findings are available in this report.
Safety
Tap contamination is possible if not maintained properly.
Complementary Technical Systems
Clean water storage container
Academic Research and References
He, D., et al., Synthesis and Characterization of Antibacterial Silver Nanoparticle-Impregnated Rice Husks and Rice Husk Ash, Environ. Sci. Technol., 2013, 47 (10), pp 5276–5284.
“Smart Saphire Blue,” TATA CHEMICALS LIMITED. Available: https://tataswach.com/products/tata-swach-smart
“TATA Swach Smart Gravity Water Purifier,15L (7.5L+7.5L), Blue?: Amazon.in: Home & Kitchen,” Amazon.in. Available: https://www.amazon.in/Swach-Electric-Smart-15-Litre-Purifier/dp/B008LN5ZWG
“Tata uses nano technology for water purifier,” Cseindia.org. Available: https://www.cseindia.org/tata-uses-nano-technology-for-water-purifier-852
“Goal 6,” Sdgs.un.org. Available: https://sdgs.un.org/goals/goal6
“Tata Swach Water Purifier,” TATA CHEMICALS LIMITED. Available: https://tataswach.com/
“MIT D-Lab,” Mit.edu. Available: https://d-lab.mit.edu/research/mit-d-lab-cite
U. S. Epa and OW, “Drinking Water Regulations,” 2015. https://www.epa.gov/dwreginfo/drinking-water-regulations#List
“Contact Us,” TATA CHEMICALS LIMITED. Available: https://tataswach.com/pages/contact-us
“MIT D-Lab,” Mit.edu. Available: https://d-lab.mit.edu/research/mit-d-lab-cite
Compliance with regulations
The Tata Swach MF membrane is certified according to Japanese Industrial Standard (JIS) S 3201:2004 The system meets US Environmental Protection Agency (US EPA) National Primary Drinking Water Regulations (NPDWRs or primary standards)
Evaluation methods
Independent lab analysis of filtered water.
Other Information
None
